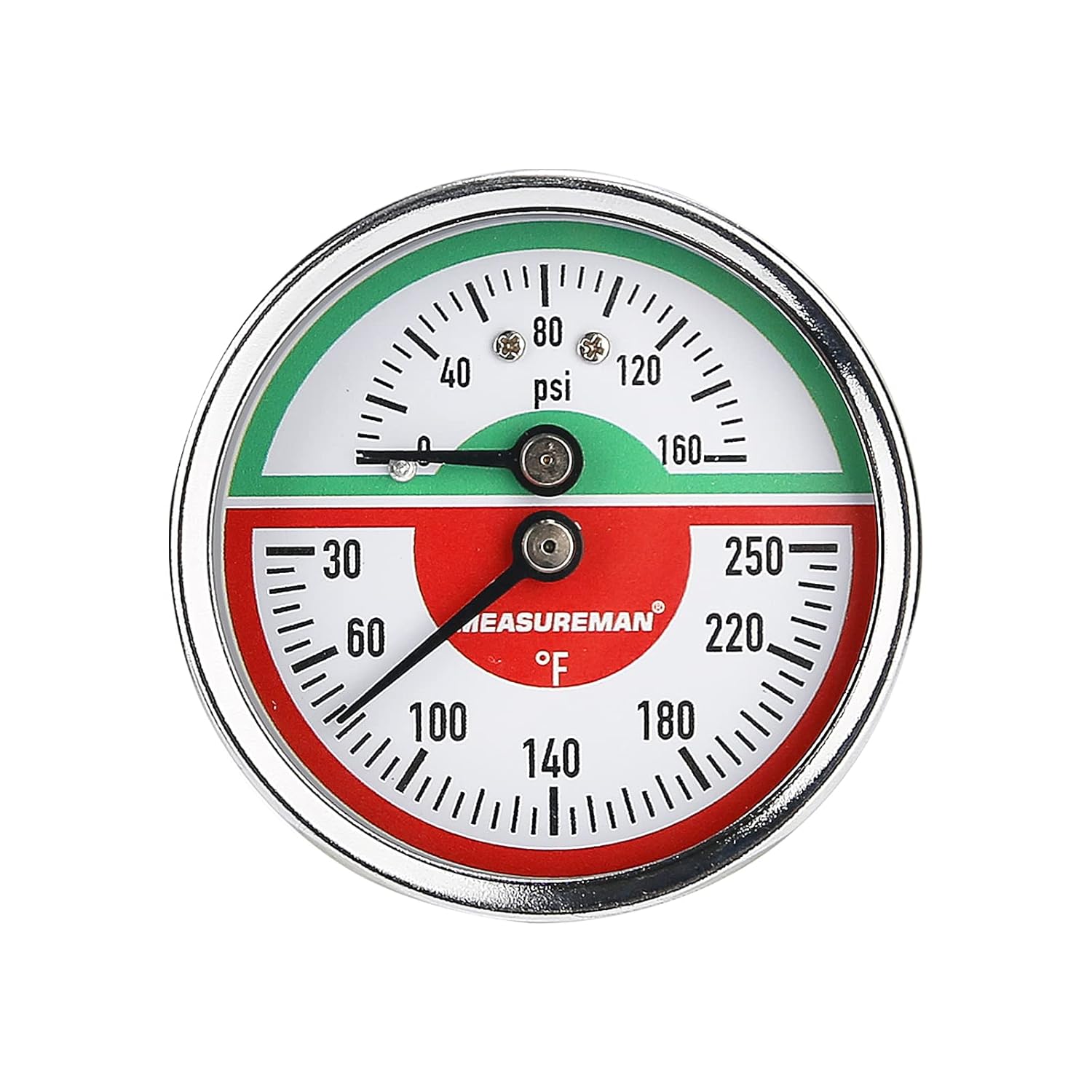

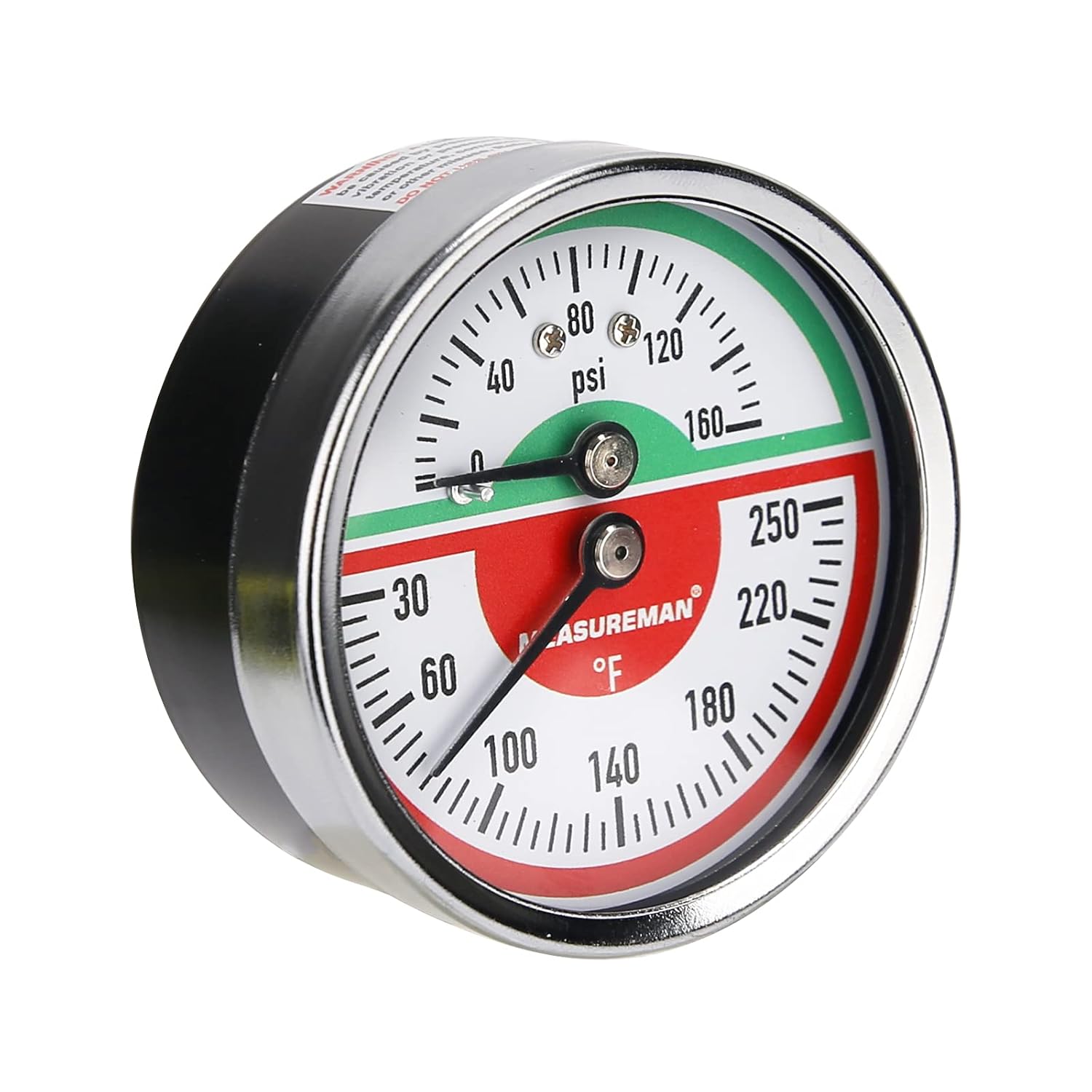

MEASUREMAN Tridicator, Thermo-Manometer Pressure Gauge, 2-1/2", 0-160psi/30-250 deg F, Stainless Steel Case, 1/4" NPT Back Mount
MEASUREMAN Tridicator, Thermo-Manometer Pressure Gauge, 2-1/2", 0-160psi/30-250 deg F, Stainless Steel Case, 1/4" NPT Back Mount
- For pressure and temperature measuring of gas, liquid which is not corrosive to brass, also where vibratiFor pressure and temperature measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern. n and pulsation is a concern.

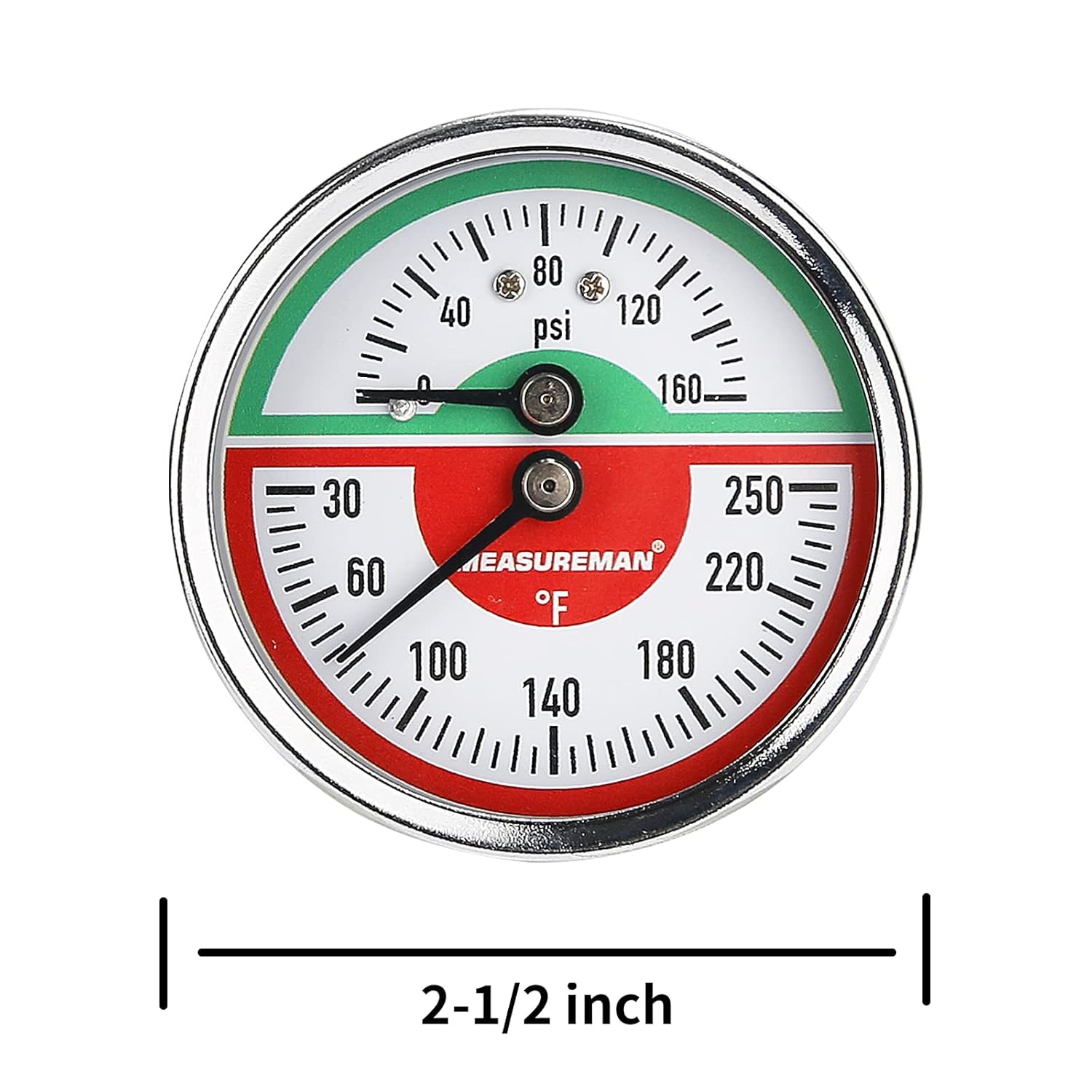

- 2-1/2" dial size, 1/4"NPT Back mount
- Pressure range: 0-160psi/30-250 deg F, easy to read
- Stainless steel case, brass wetted parts
-
Accuracy: +/-3-2-3%
Product description
Description
Dial size: 2-1/2""

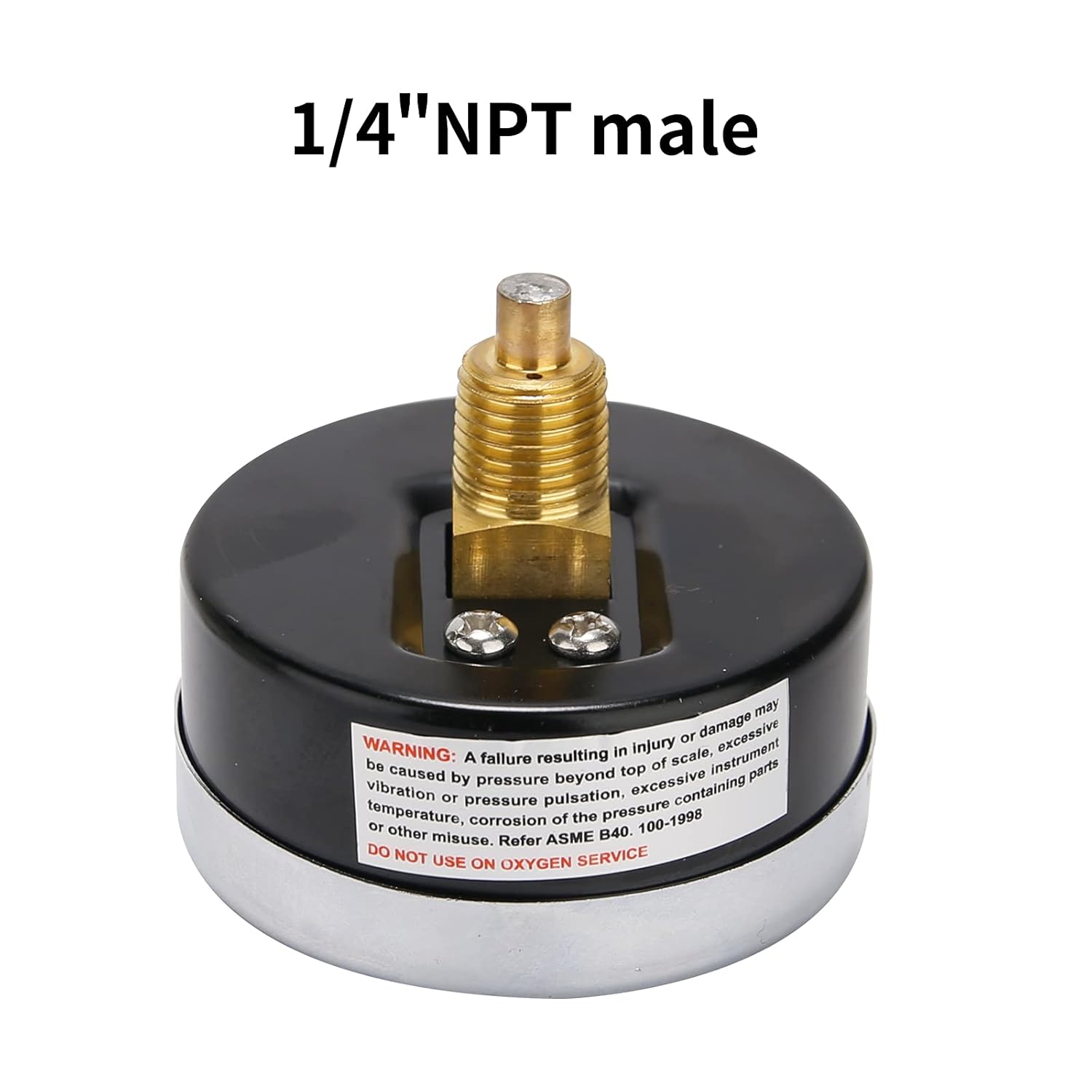

Process connection: 1/4""NPT back mount
Case: Black steel case and chorme plated ring.
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Bourdon tube: Copper alloy
Movement: Brass
Connection: Brass
Bimetal system for temperature sensor
Accuracy: +/-3-2-3%

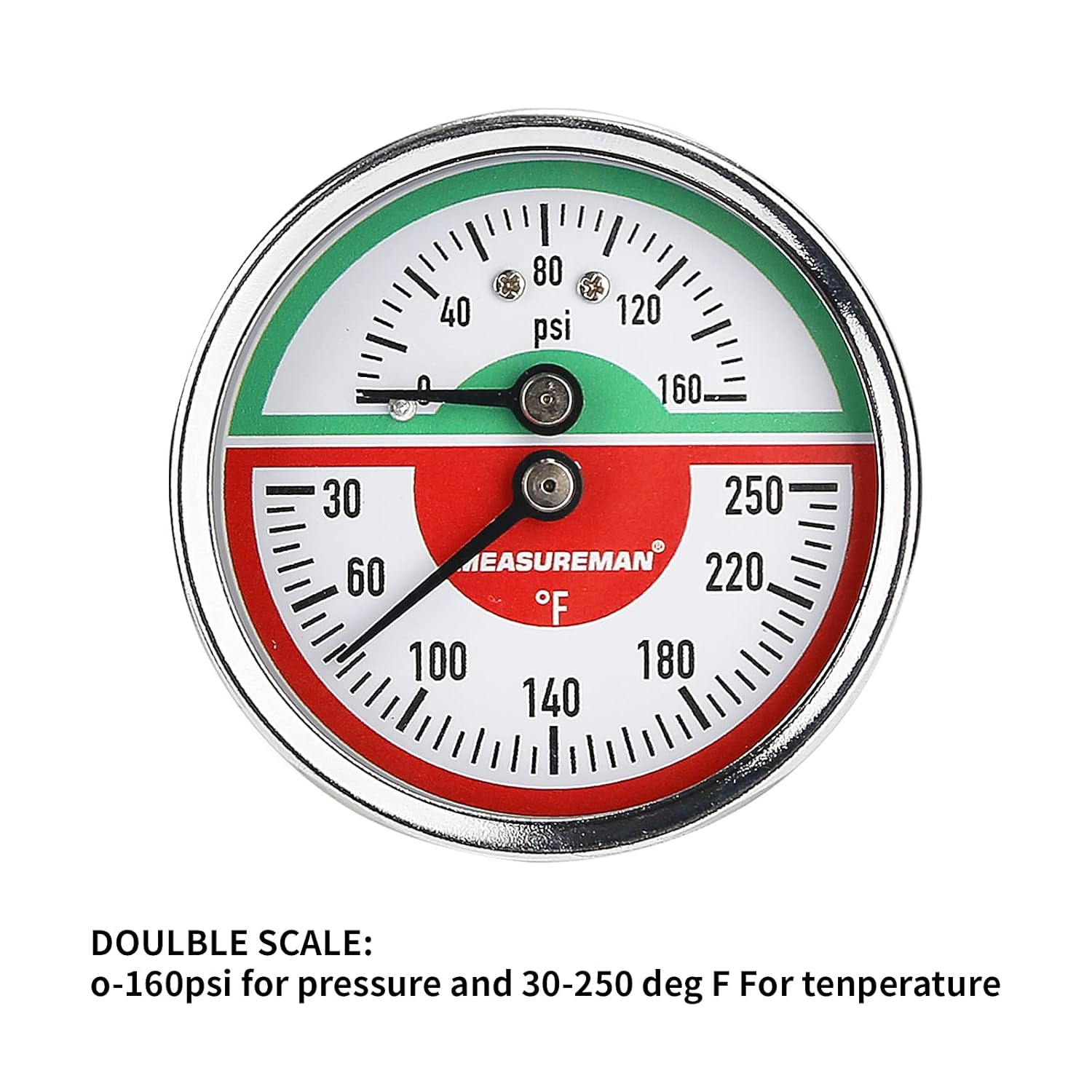

Range: 0-160psi/30-250 deg F double scale
Working temperature:0 to 220 deg F
Ambient temperature:140 deg F maximum"
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
