MEASUREMAN 1-1/2" Dial Size, Glycerin Filled Fuel Pressure Gauge, 304 Stainless Steel case, 0-15Psi, 3-2-3%, 1/8"NPT Rear Mount -100pcs
MEASUREMAN 1-1/2" Dial Size, Glycerin Filled Fuel Pressure Gauge, 304 Stainless Steel case, 0-15Psi, 3-2-3%, 1/8"NPT Rear Mount-100pcs
Shipped from factory direct, 7-10days
- For meausring fuel pressure
- 1-1/2" dial size, 1/8"NPT rear
- Pressure range: 0-15psi single scale
- Stainless steel case, brass wetted parts
- Accuracy: +/-3-2-3%
Product description
Description
This mini pressure gauge is designed for fuel in automative replacement industry, which is used for measuring the fuel pressure.

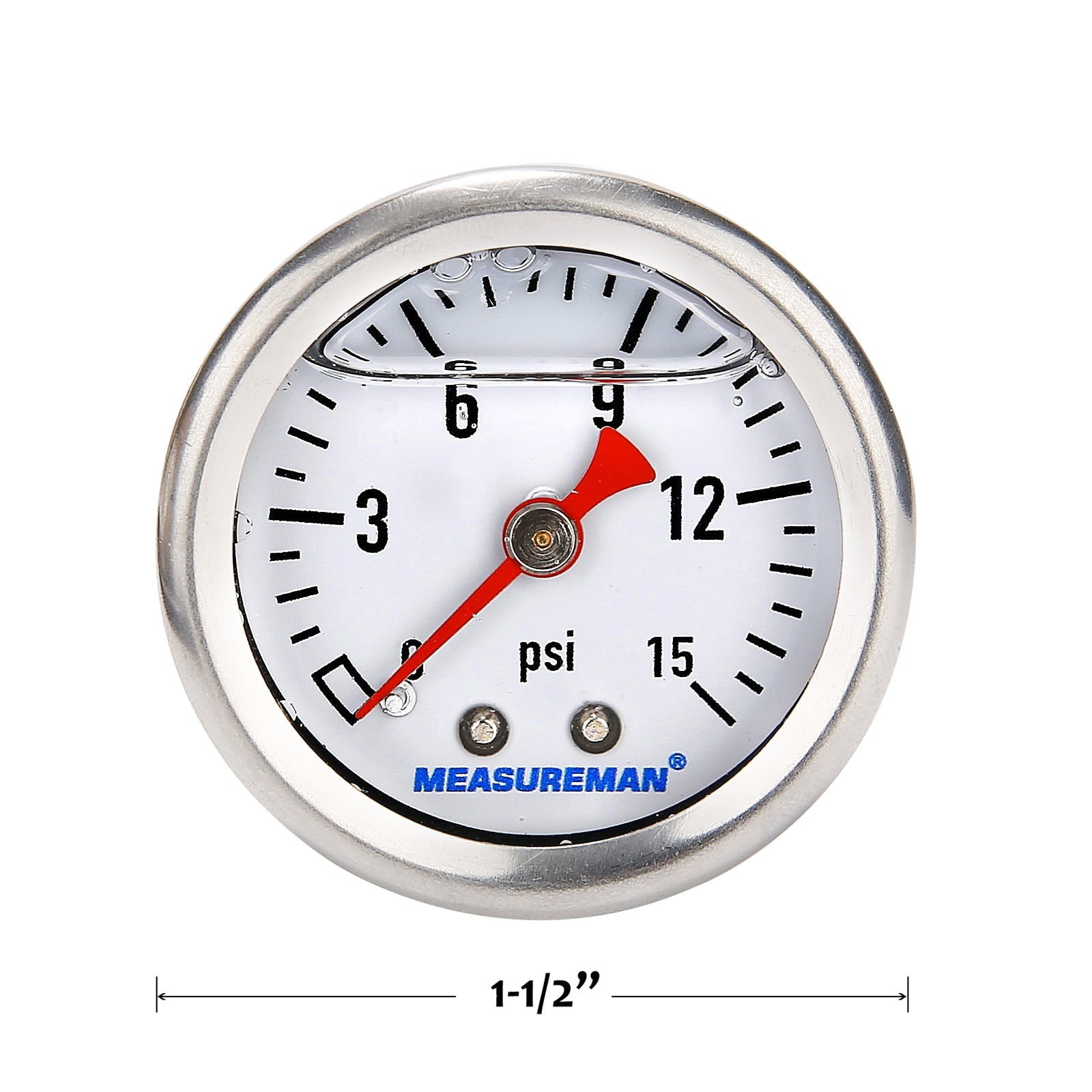

Dial size : 1-1/2"

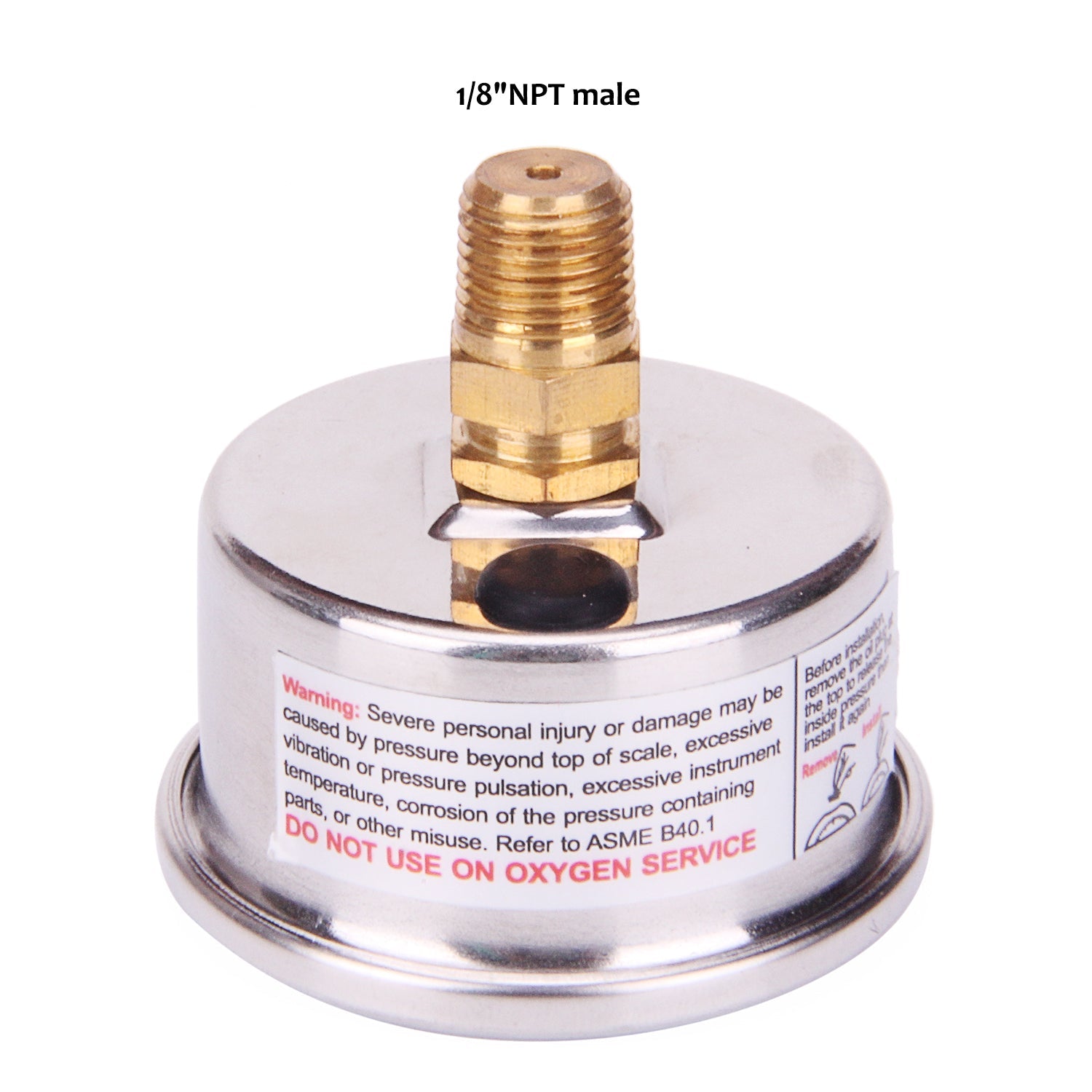

Process connection : 1/8"NPT male center back
Case : 304 stainless steel case and crimped ring
Window : Polycarbonate
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Bourdon tube : Copper alloy
Movement : Brass
Connection : Brass,two pieces design
Oil cap : rubber, black color

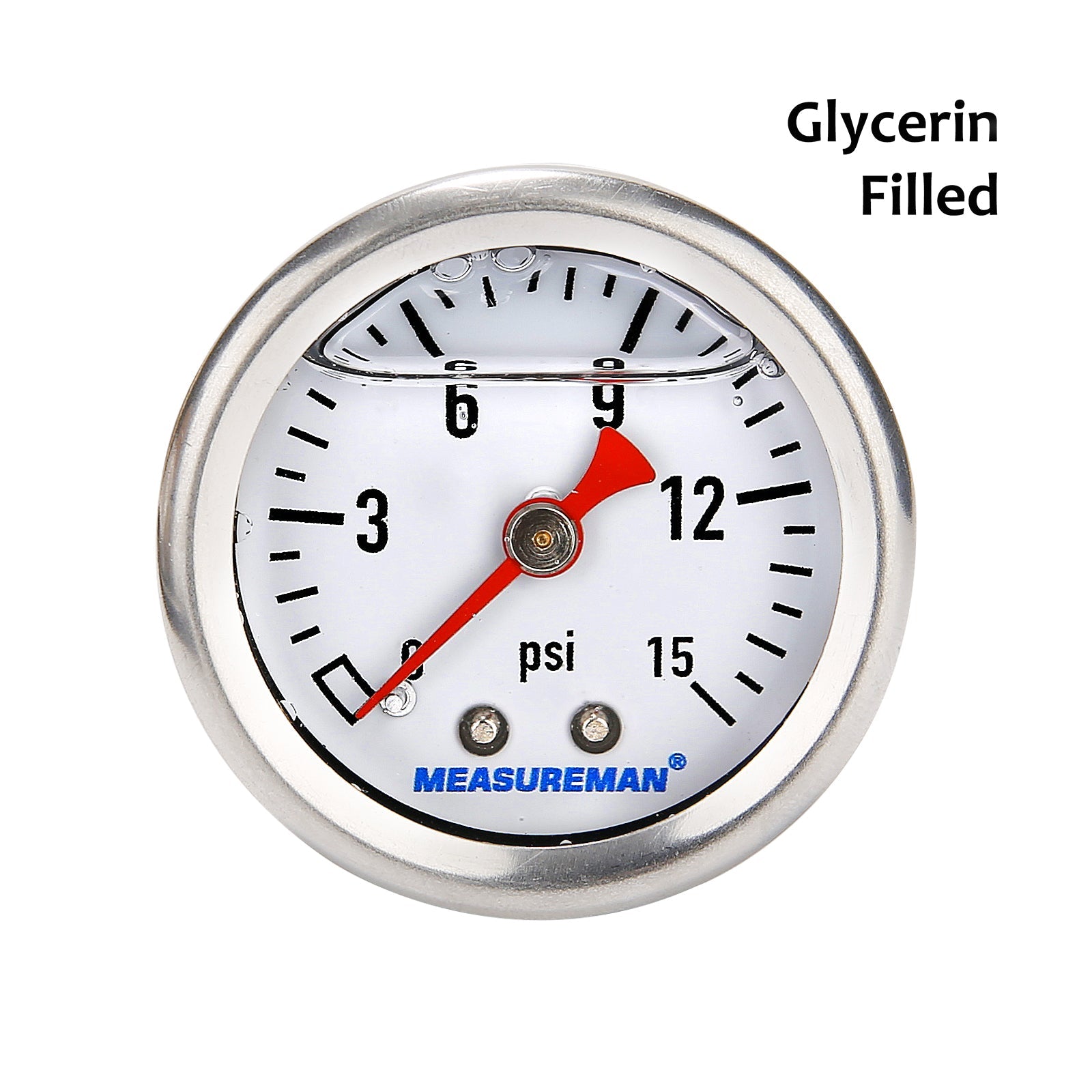

Filling : Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class : IP67
Accuracy : +/-3-2-3%
Pressure range : 0-15psi single scale
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
