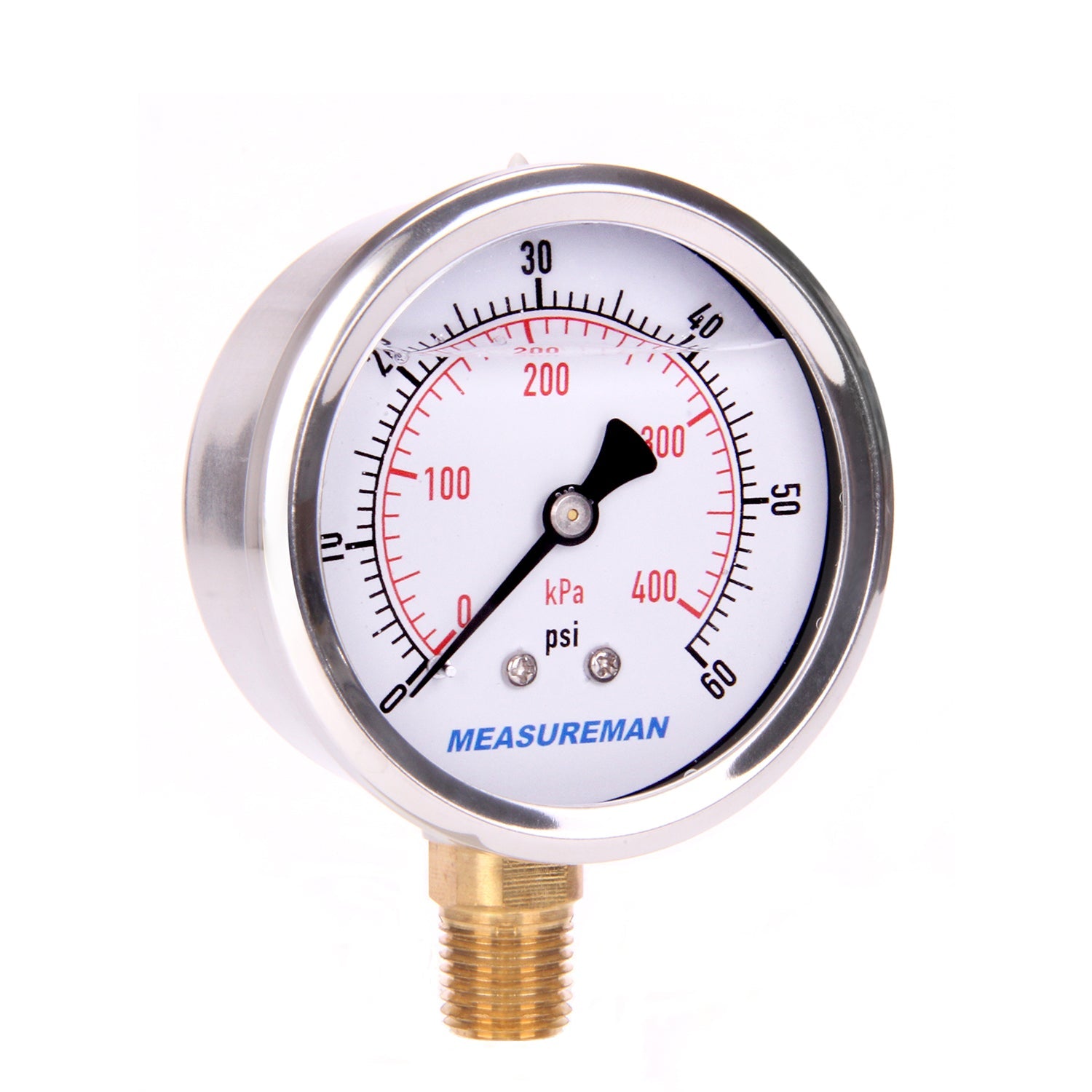

Measureman 2-1/2" Dial Size, Liquid Filled Pressure Gauge, 0-60psi/kpa, 304 Stainless Steel Case, 1/4"NPT Lower Mount-50pcs

  • $549.00
    Unit price per
  • Save $100
Tax included. Shipping calculated at checkout.


Measureman 2-1/2" Dial Size, Liquid Filled Pressure Gauge, 0-60psi/kpa, 304 Stainless Steel Case, 1/4"NPT Lower Mount-50pcs

Shipped from factory direct, about 7-10days

  • For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern.
  • 2-1/2" dial size, 1/4"NPT lower mount
  • Pressure range: 0-60psi/kpa dual scale
  • Stainless steel case, brass wetted parts, glycerin filled
  • Accuracy: +/-3-2-3%

This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.

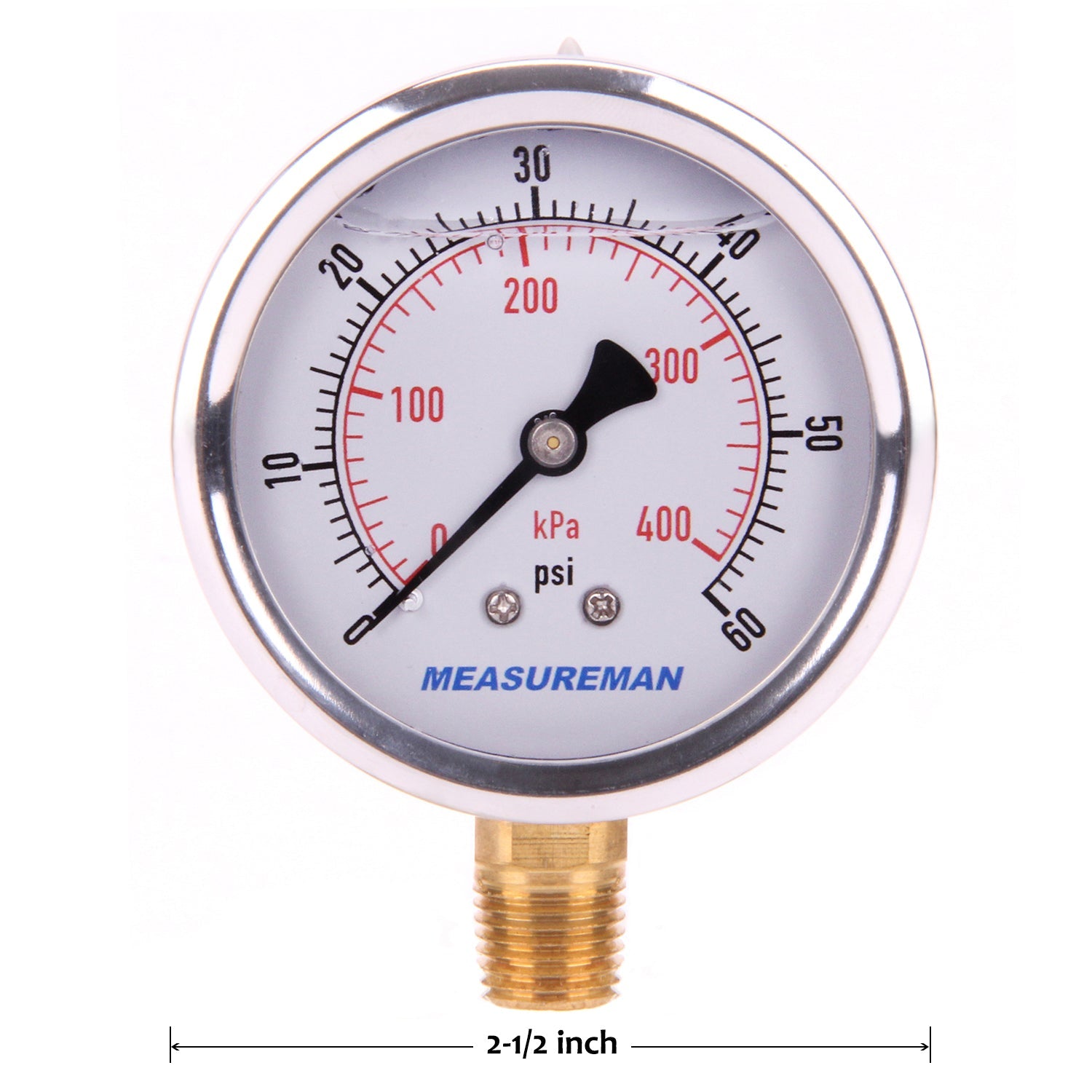

Dial size: 2-1/2"
Process connection: 1/4"NPT lower mount
Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Boudon tube: Copper alloy
Movement: Brass

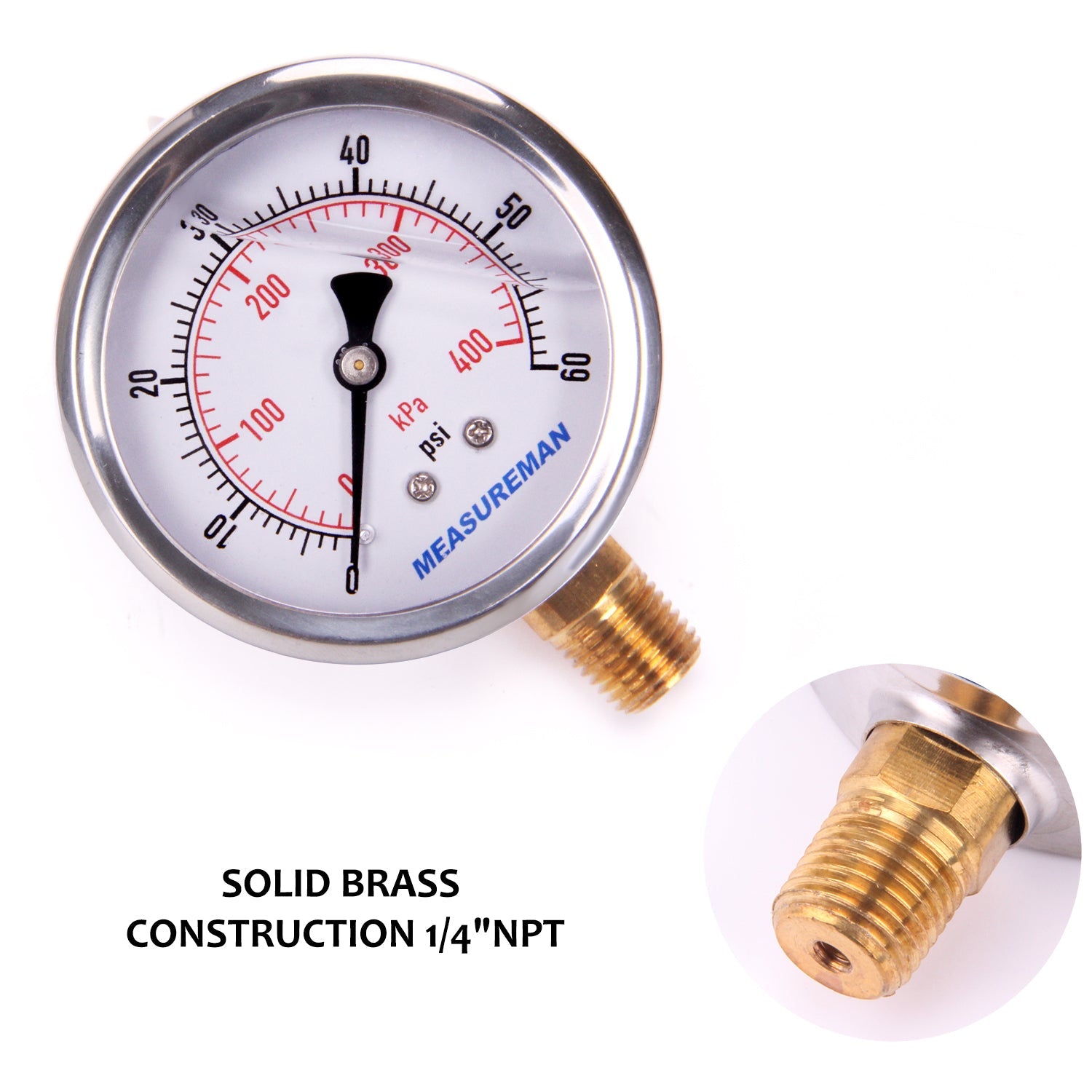

Connection: Brass, one piece design
Oil cap: rubber, gray color

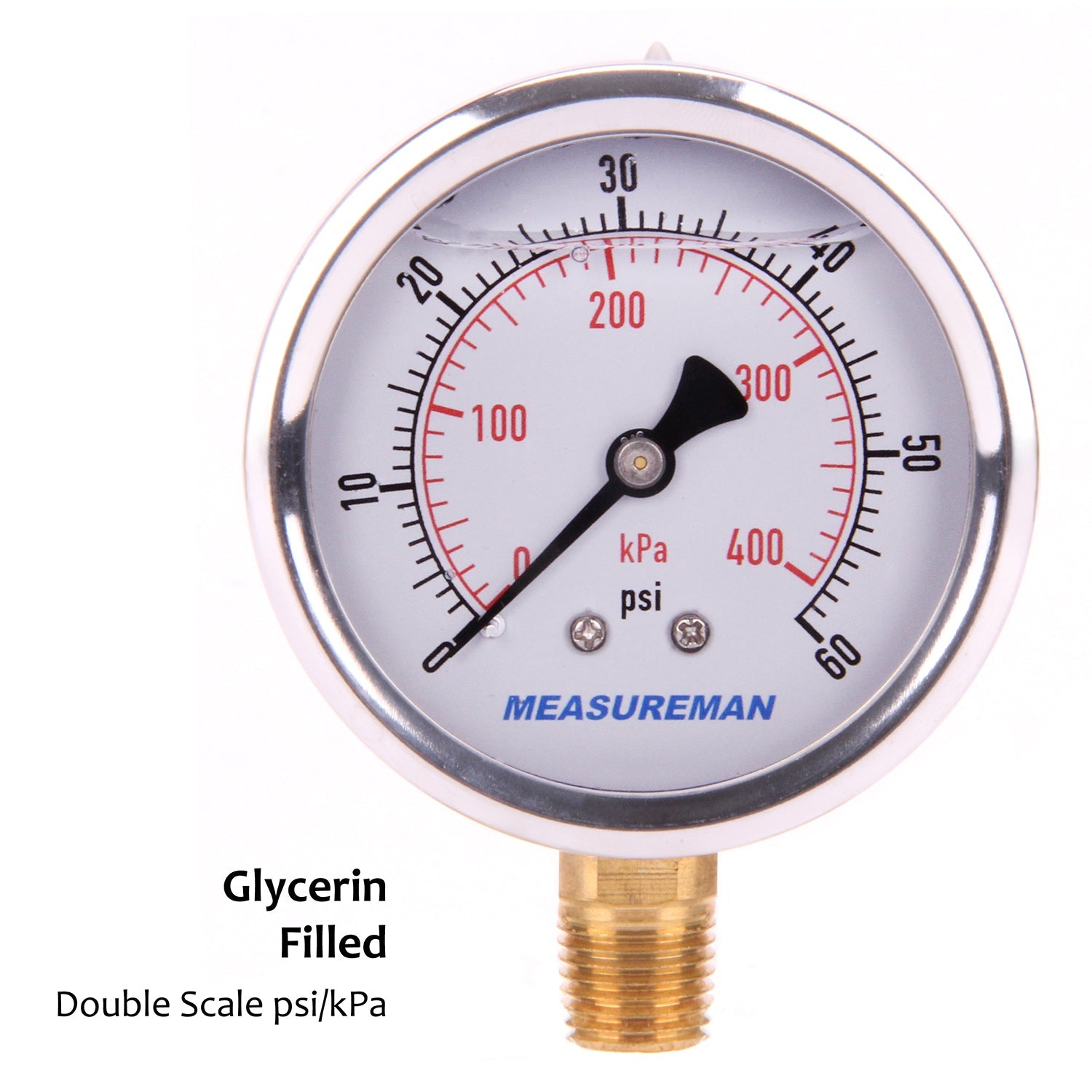

Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-3-2-3%
Range: 0-60psi/kpa dual scale, psi outside, kpa inside
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum
