MEASUREMAN 0-100psi/kpa Liquid Filled Pressure Gauge with Brass Gauge Adaptor 1/4NPT Female，2-1/2 OAL x 1-2/5" x 1/8" Probe with Stainless Steel Sheath，Pressure Test Kit
MEASUREMAN 0-100psi/kpa Liquid Filled Pressure Gauge with Brass Gauge Adaptor 1/4NPT Female，2-1/2 OAL x 1-2/5" x 1/8" Probe with Stainless Steel Sheath，Pressure Test Kit
- Mainly used in plumbing, heating, ventilation and air conditioning installations
- 2-1/2” dial size, 1/4”NPT lower mount
- Pressure range: 0-100psi/kpa dual scale
- Stainless steel case, brass wetted parts, glycerin filled
-
Accuracy: +/-3-2-3%
Product Description
"Description
Dial size : 2-1/2"
Process connection : 1/4"NPT lower mount

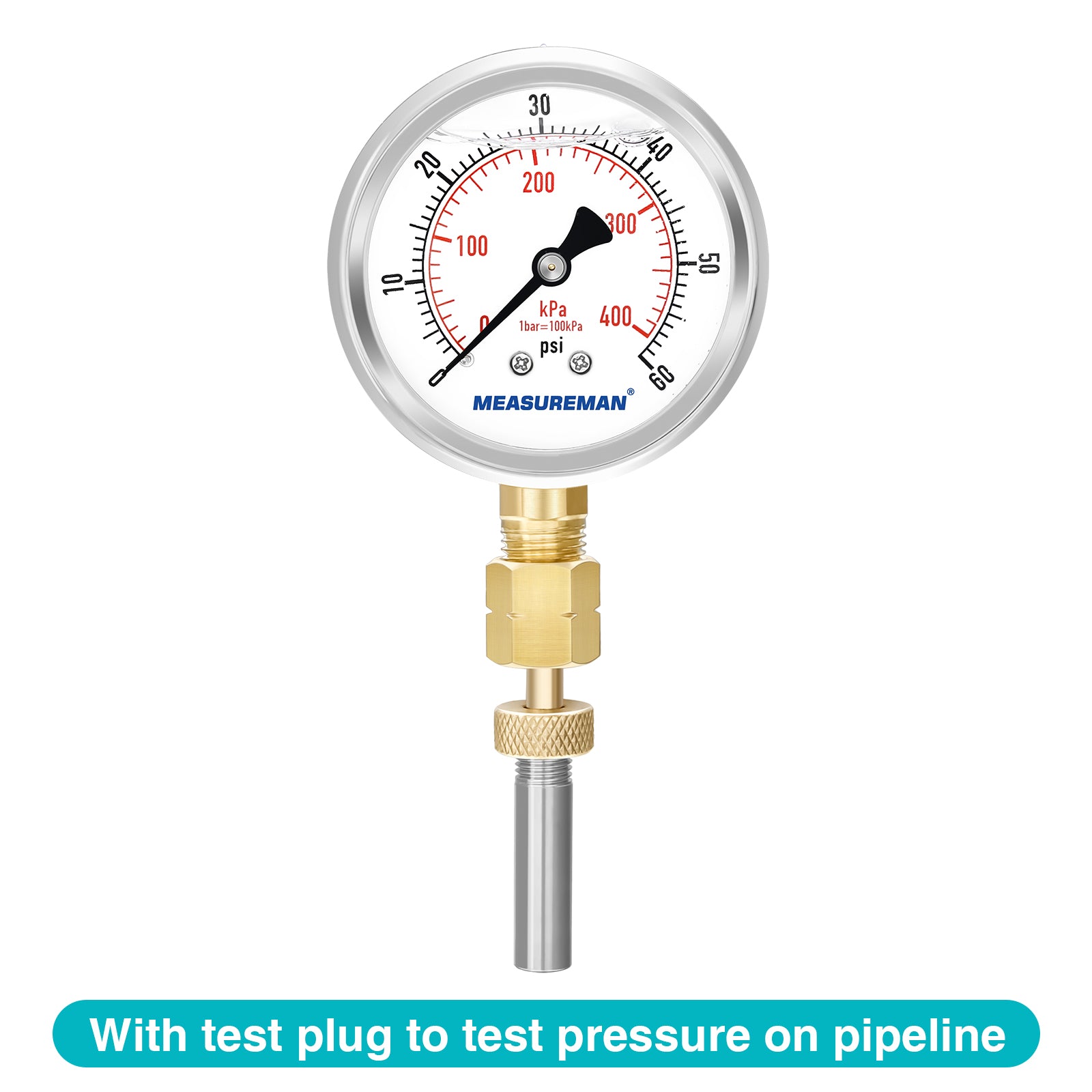

Brass test plug: 1/4"NPT female thread to connect pressure gauge
Case : 304 stainless steel case and crimped ring
Window : Polycarbonate
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Bourdon tube : Copper alloy
Movement : Brass

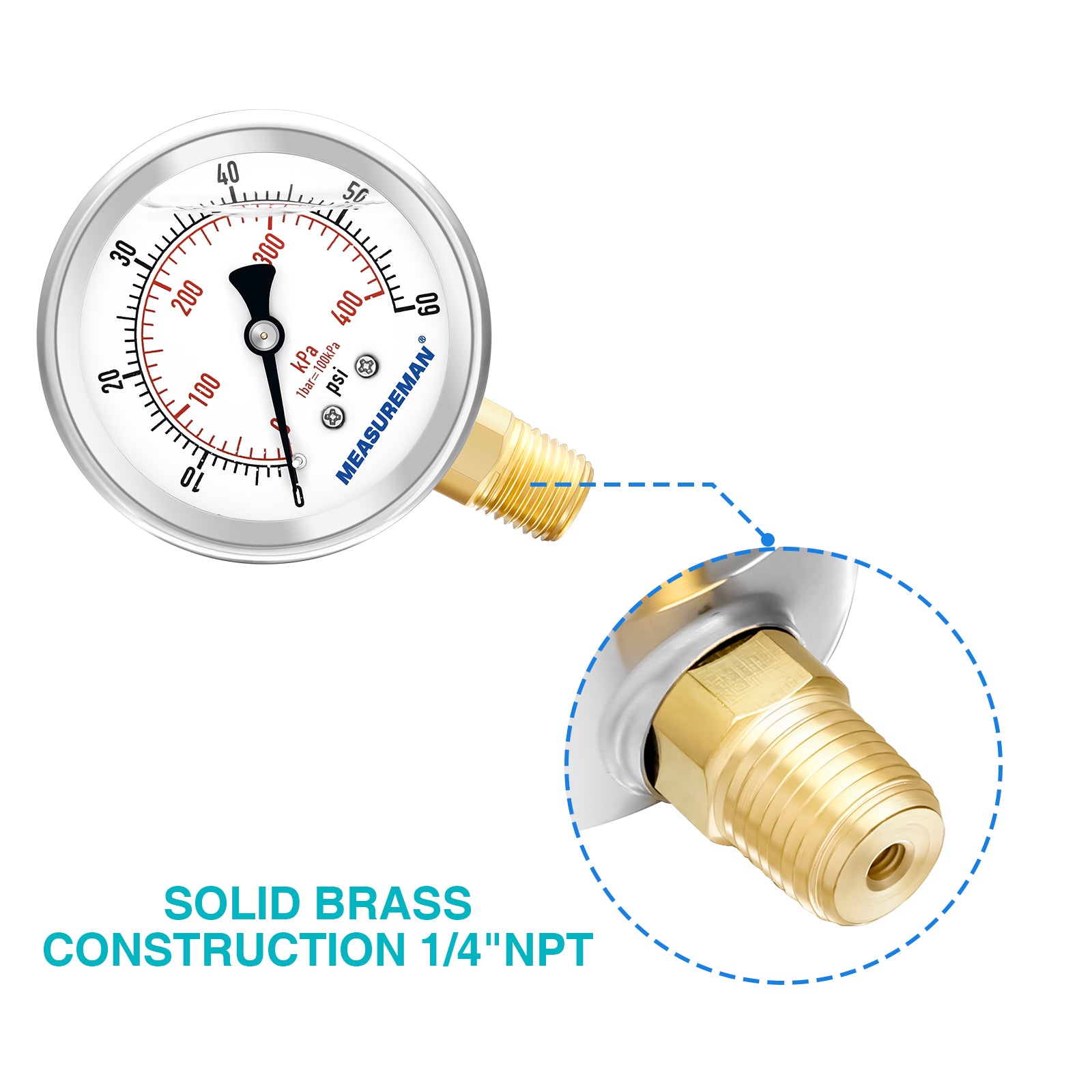

Connection : Brass, one piece design
Oil cap : rubber, black color
Filling : Glycerin filled, oil filled gauge, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class : IP67
Accuracy : +/-3-2-3%
Range : 0-100psi/kpa dual scale, psi outside, kpa inside
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The ""Measureman"" branded products are the combination of continuous good quality and affordable price. ""Measureman"" products are selected and designed by professional engineers. "
