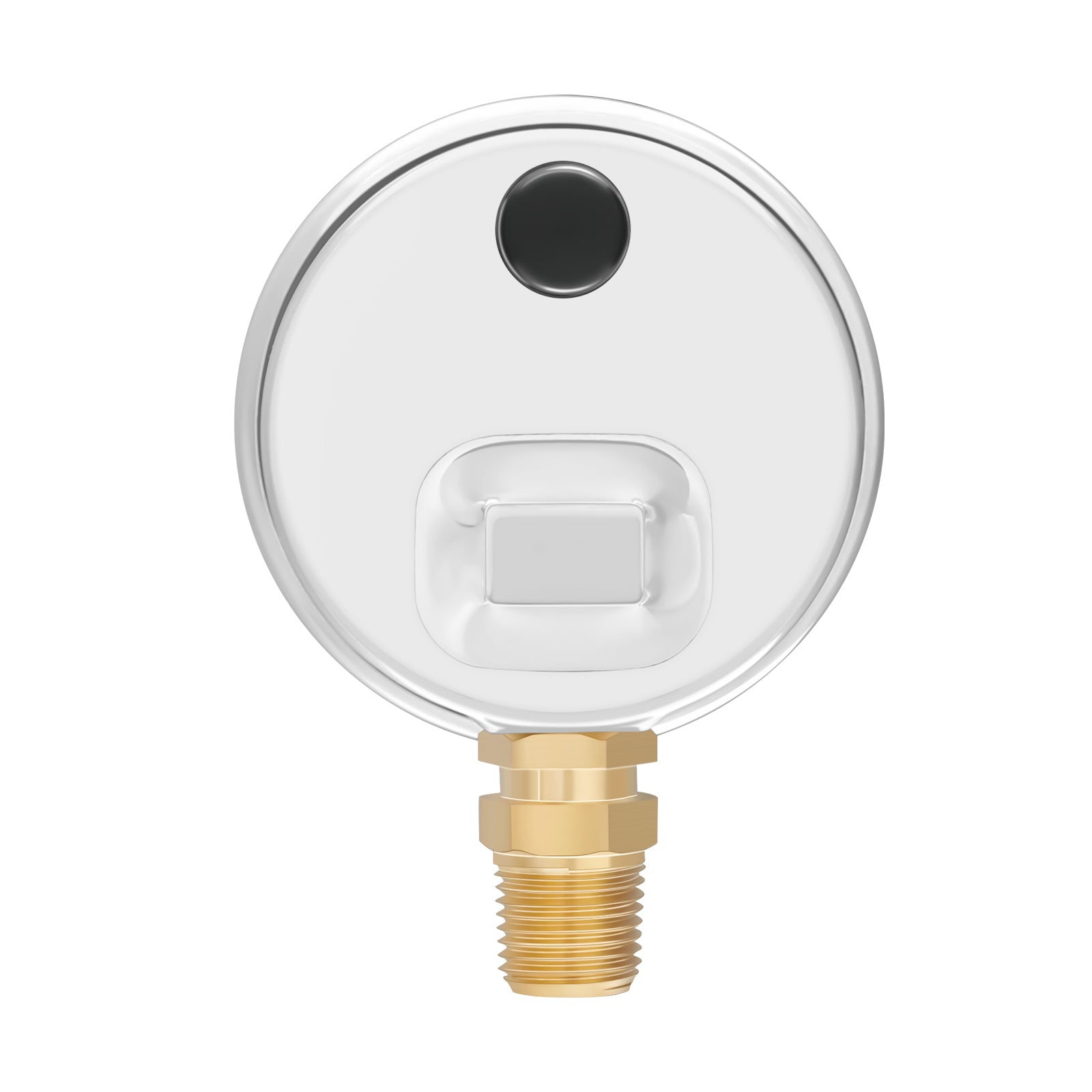

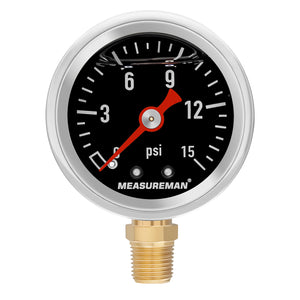

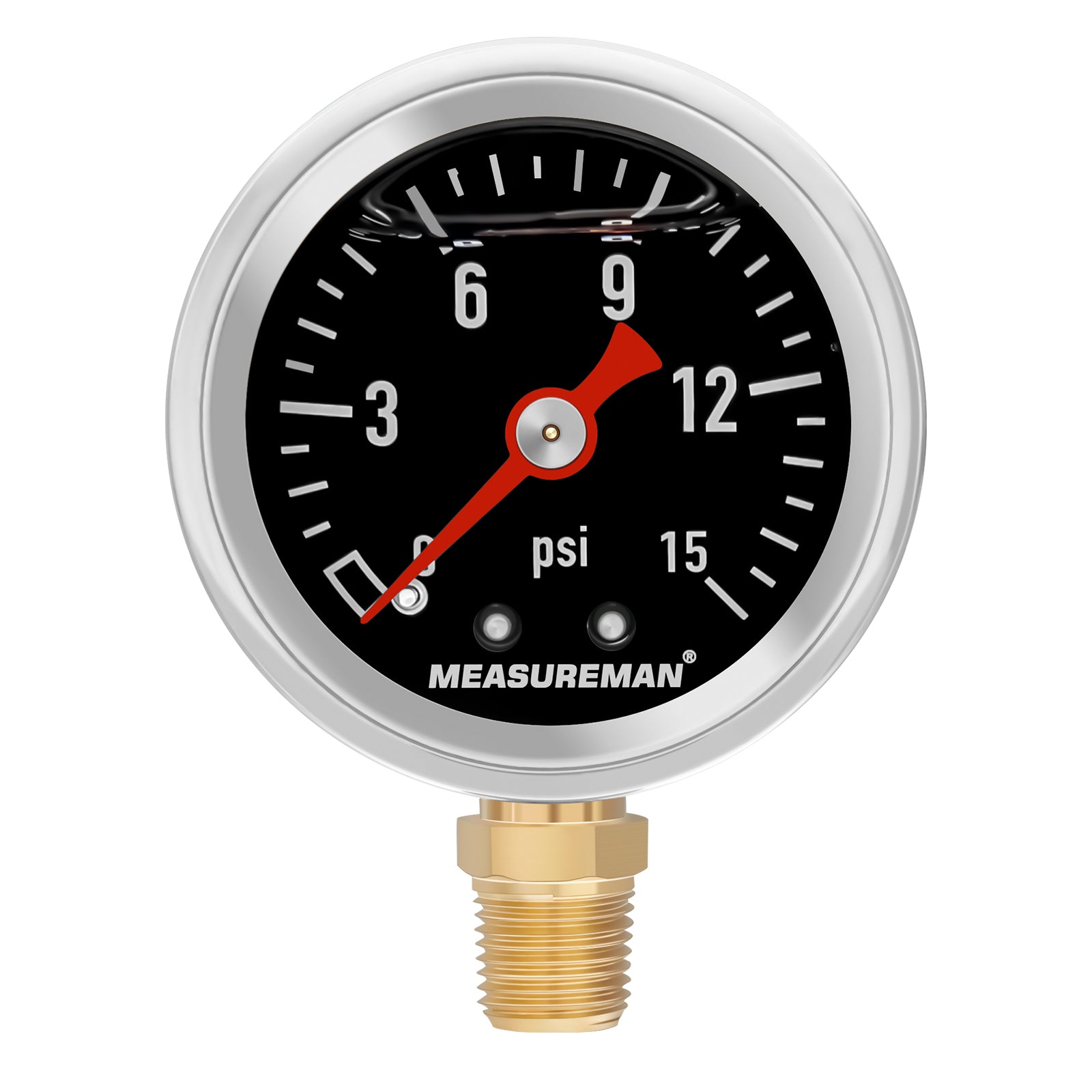

MEASUREMAN 1-1/2" Dial Size Black Dial, Glycerin Filled Fuel Pressure Gauge, 304 Stainless Steel case, 0-15Psi, -3-2-3%, 1/8" NPT Lower Mount
MEASUREMAN 1-1/2" Dial Size Black Dial, Glycerin Filled Fuel Pressure Gauge, 304 Stainless Steel case, 0-15Psi, -3-2-3%, 1/8" NPT Lower Mount
MEASUREMAN 1-1/2" Dial Size Black Dial, Glycerin Filled Fuel Pressure Gauge, 304 Stainless Steel case, 0-15Psi, -3-2-3%, 1/8" NPT Lower Mount
MEASUREMAN 1-1/2" Dial Size Black Dial, Glycerin Filled Fuel Pressure Gauge, 304 Stainless Steel case, 0-15Psi, -3-2-3%, 1/8" NPT Lower Mount
MEASUREMAN 1-1/2" Dial Size Black Dial, Glycerin Filled Fuel Pressure Gauge, 304 Stainless Steel case, 0-15Psi, -3-2-3%, 1/8" NPT Lower Mount
MEASUREMAN 1-1/2" Dial Size Black Dial, Glycerin Filled Fuel Pressure Gauge, 304 Stainless Steel case, 0-15Psi, -3-2-3%, 1/8" NPT Lower Mount

MEASUREMAN 1-1/2" Dial Size Black Dial, Glycerin Filled Fuel Pressure Gauge, 304 Stainless Steel case, 0-15Psi, -3-2-3%, 1/8" NPT Lower Mount

  • Save $9
Tax included. Shipping calculated at checkout.

MEASUREMAN 1-1/2" Dial Size Black Dial, Glycerin Filled Fuel Pressure Gauge, 304 Stainless Steel case, 0-15Psi, -3-2-3%, 1/8" NPT Lower Mount

  • For meausring fuel pressure
  • 1-1/2" dial size, 1/8"NPT lower
  • Pressure range: 0-15psi single scale
  • Stainless steel case, brass wetted parts, glycerin filled
  • Accuracy: +/-3-2-3%

Description

This mini pressure gauge is designed for fuel in automative replacement industry, which is used for measuring the fuel pressure.

Dial size: 1-1/2"

Process connection: 1/8"NPT male lower

Case: 304 stainless steel case and crimped ring

Window: Polycarbonate

Dial plate: aluminum, with pointer stop

Pointer: Aluminum, black, DIN style

Bourdon tube: Copper alloy

Movement: Brass Connection: Brass,two pieces design

Oil cap: rubber, black color

Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.

IP class: IP67 Accuracy:+/-3-2-3%,

Pressure range: 0-15psi single scale

Working temperature:-4 to 140 deg F/-20 to 60 deg C

Ambient temperature:140 deg F/60 deg C maximum

Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
