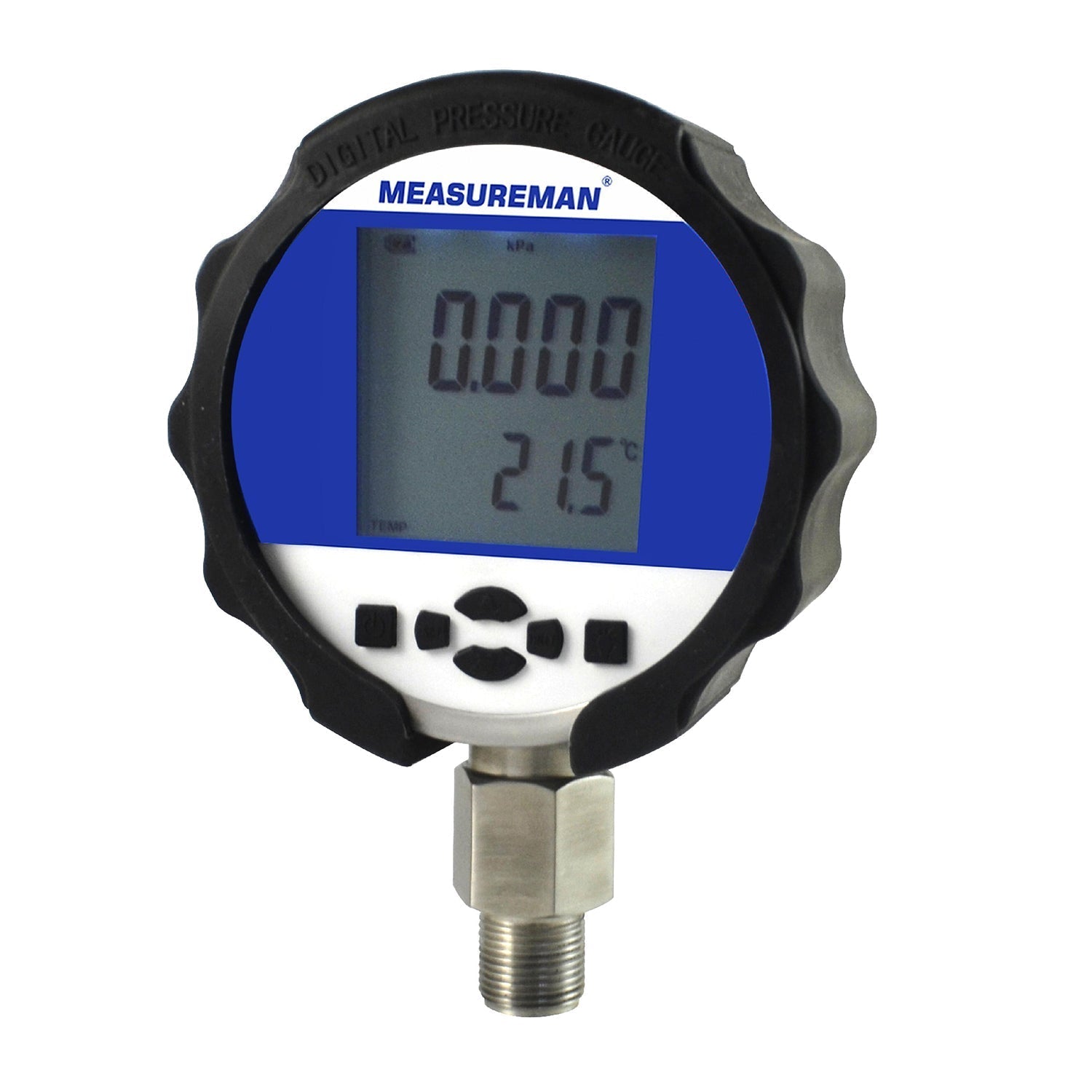

Measureman 105mm,High Precision Digital Pressure Gauge With 1/4"NPT Lower Mount,Stainless Steel Case and Connection,0-10000psi/bar, 0.05%,Battery Powered,With LED Light
Measureman 105mm,High Precision Digital Pressure Gauge With 1/4"NPT Lower Mount,Stainless Steel Case and Connection,0-10000psi/bar, 0.05%,Battery Powered,With LED Light
- For water pressure,air pressure precision measuring, for high precision measuring, for laboratory use,
- 5 digit display, 55x55 large main and auxiliary screen design, real time display, display the temperature,maximum and minimum value, Batteries status, Pressure progress bar etc
- High accuracy class,0.05%Fs
- AA battery power, services more than 3600 hours,
- 10 pressure units available:MPa/KPa/psi/bar/pa
mBAR/mmHg/mH20/Torr/kgf/cm2
Product description
For water pressure,air pressure precision measuring, for media which is not corrosive to stainless steel wetted parts
Dial Diameter: 105mm
Pressure Range:
0-10000psi, bar, kg/cm2, Mpa
,10000psi, 700bar,70Mpa, 700kg/cm2,
PressureAccuracy: 0.05%(10~30℃)
Temperature Accuracy: +/-0.5degC
Operation Temperature: -10~50degC
Compensation Temperature: 0~40 degC
Power: AA battery or USB power
Battery Life: 3600 hours
SamplingRate: 1-10 Times/second,adjustable
Screw Thread: 1/4"NPT male
Case: 304 stainless steel, rubber covered
Connection: 304 stainless steel
Measuring Medium: oil,gas,liquid(non corrosive)
Storage Condition: Temperature(-20-60degC)
Humidity(0~95%RH)
Net Weight: 260g
Product Accessory: Power cord (1 meter)
Packing: 1PC per protection box
Package Content:
1 x Digital Pressure Gauge,
1 x Operation Manual.
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
