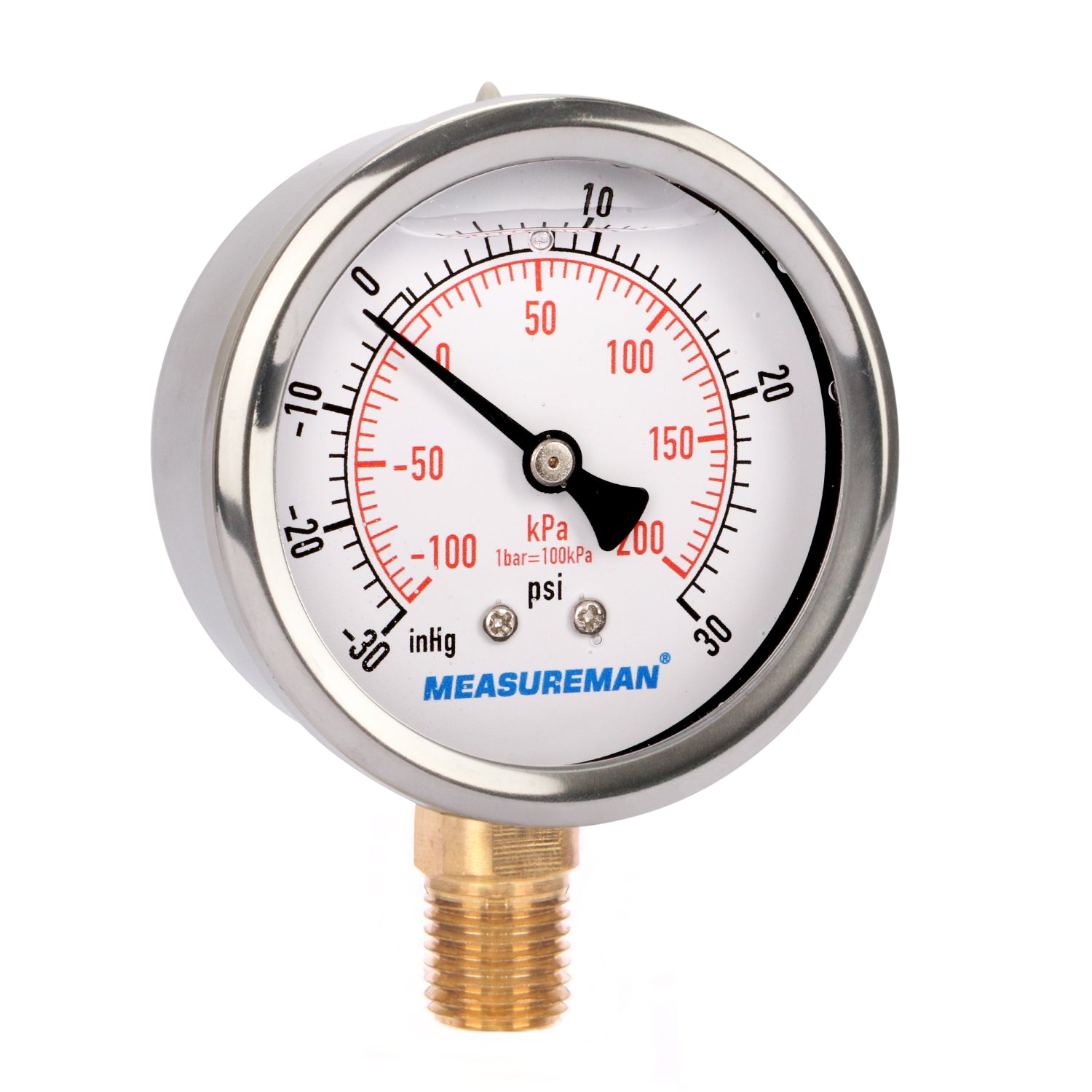

MEASUREMAN 2-1/2" dial, 1/4"NPT Lower, Glycerin Filled, Stainless Steel case, Brass Inside, 30inHg/-100kpa-0-30psi/200kpa

$12.97
Unit price per
Save $6

Tax included. Shipping calculated at checkout.

For measuring the compound of gas, air, suitable for measuring of both pressure and vacuum at the same equipment or system
2-1/2" dial size, 1/4"NPT lower mount,
Compound range: -30"Hg-0-30psi/kpa
304 stainless steel case and crimped ring, polycarbonate window, brass inside and connection,
Accuracy: +/-3-2-3%,

This liquid filled compound gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.
Dial size: 2-1/2"
Process connection: 1/4"NPT lower mount
Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Boudon tube: Copper alloy
Movement: Brass
Connection: Brass, one piece design
Oil cap: rubber, gray color
Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-3-2-3%
Range: 30"Hg/-100kpa-0-30psi/200kpa, psi outside, kpa inside
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum
