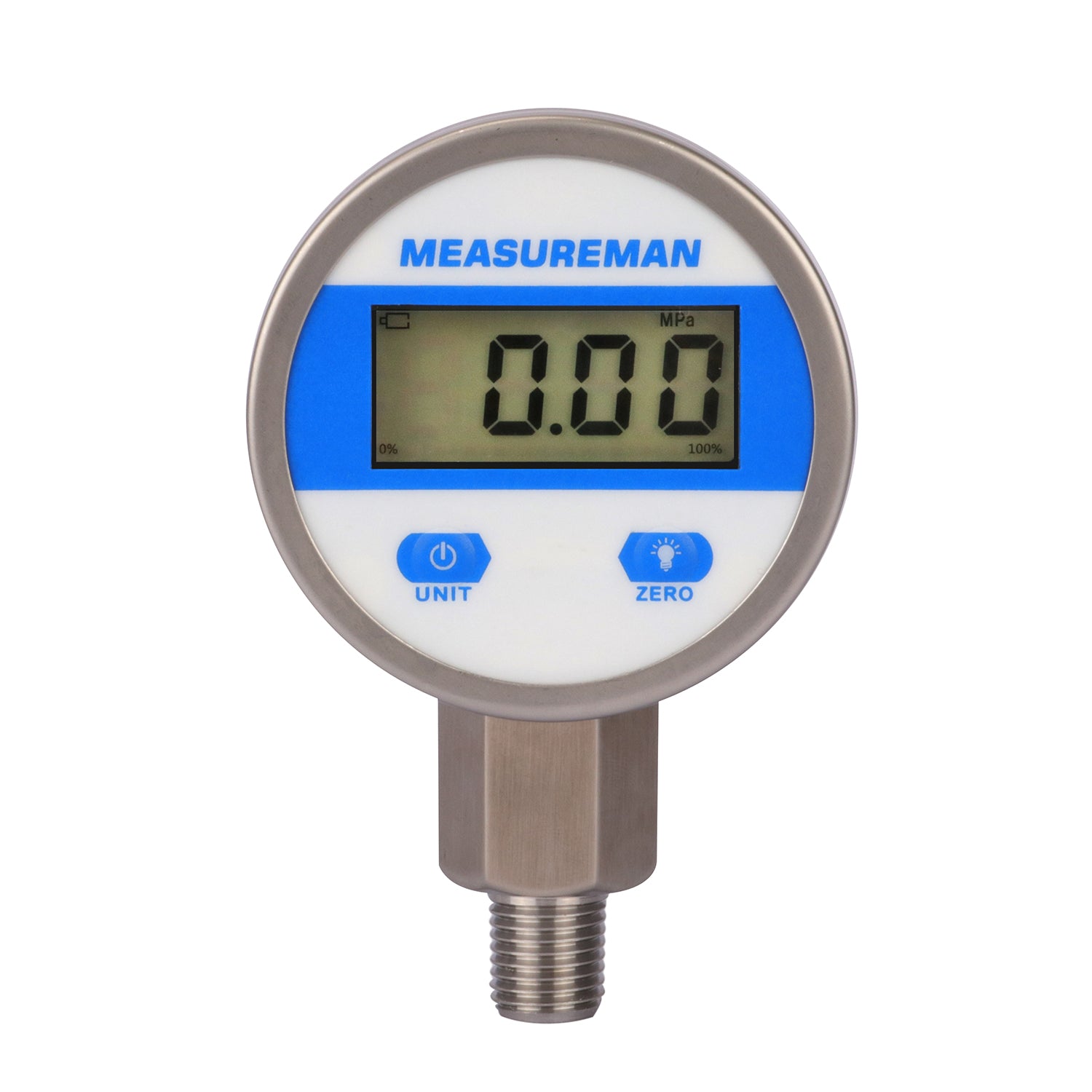

Measureman 2-1/2" dial, Digital Industrial Pressure Gauge with 1/4"NPT lower mount, stainless steel case and connection, 0-100psi/bar, 1%,Battery Powered, With LED light

Description
For hydraulic, oil pressure, water pressure, high pressure, air pressure measuring, for media which is not corrosive to stainless steel wetted parts
Dial size : 2-1/2"
Pressure Range : 0-60psi, bar, kg/cm2, Mpa 4 digit display, 4 units,  100psi,7bar,0.7Mpa, 7kg/cm, 150% over load
Batteries status display
Pressure progress bar
Process connection : 1/4"NPT male, lower mount
Overload Capacity : 150%
Accuracy : 1%
Input Voltage : 3V (two 1.5V AAA batteries)
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Case : 304 stainless steel
Wetted parts : 304 stainless steel
IP Class : IP54

How to operate:
Button Description:
Power button : Long press to power on, short press to power off
UNIT button : shortly press Unit button to change the unit circularly
LIGHT button : Short press, the back-light will light on for 20 seconds, Long press for 5 seconds to calibrate to zero

Package Content:
1 x Digital Pressure Gauge,
1 x Operation Manual.


Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
