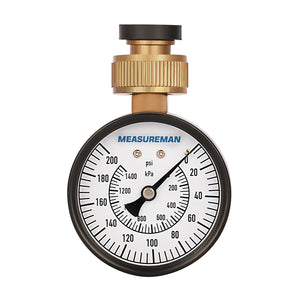

Measureman 2-1/2" Water Pressure Test Gauge, 3/4" Female Hose Thread, 0-200 psi/kpa

  • $13.97
    Unit price per
  • Save $6
Tax included. Shipping calculated at checkout.


Measureman 2-1/2" Water Pressure Test Gauge, 3/4" Female Hose Thread, 0-200 psi/kpa

  • For water pressure measuring in the irrigation system, house etc

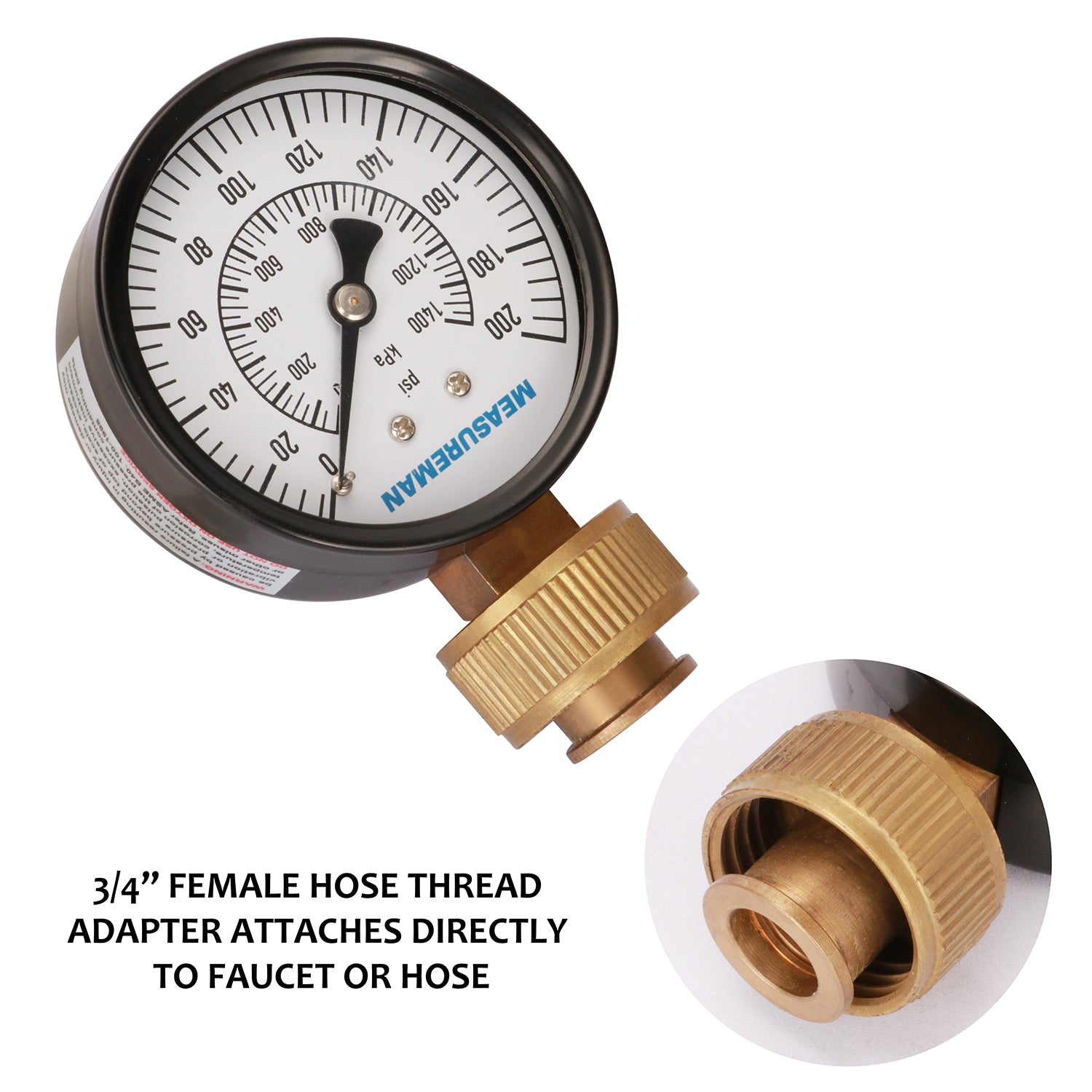

  • 2-1/2" dial size, 3/4” female hose thread adapter attaches directly to faucet or hose
  • Pressure range: 0-200psi/kpa double scale
  • Black steel case, brass wetted parts, dry
  • Accuracy: +/-3-2-3%

Product description

Size:Dry Test Gauge

Description
This pressure gauge is designed for water pressure measuring in the irrigation system, house etc.

Dial size : 2-1/2"
Process connection : 3/4" hose upper mount female
Case : Black steel case and bezel
Window : Clear plastic
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Bourdon tube : Copper alloy
Movement : Brass
Connection : Brass
IP class : IP43
Accuracy : +/-3-2-3%
Pressure range : 0-200psi/kpa, double scale
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum



Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
