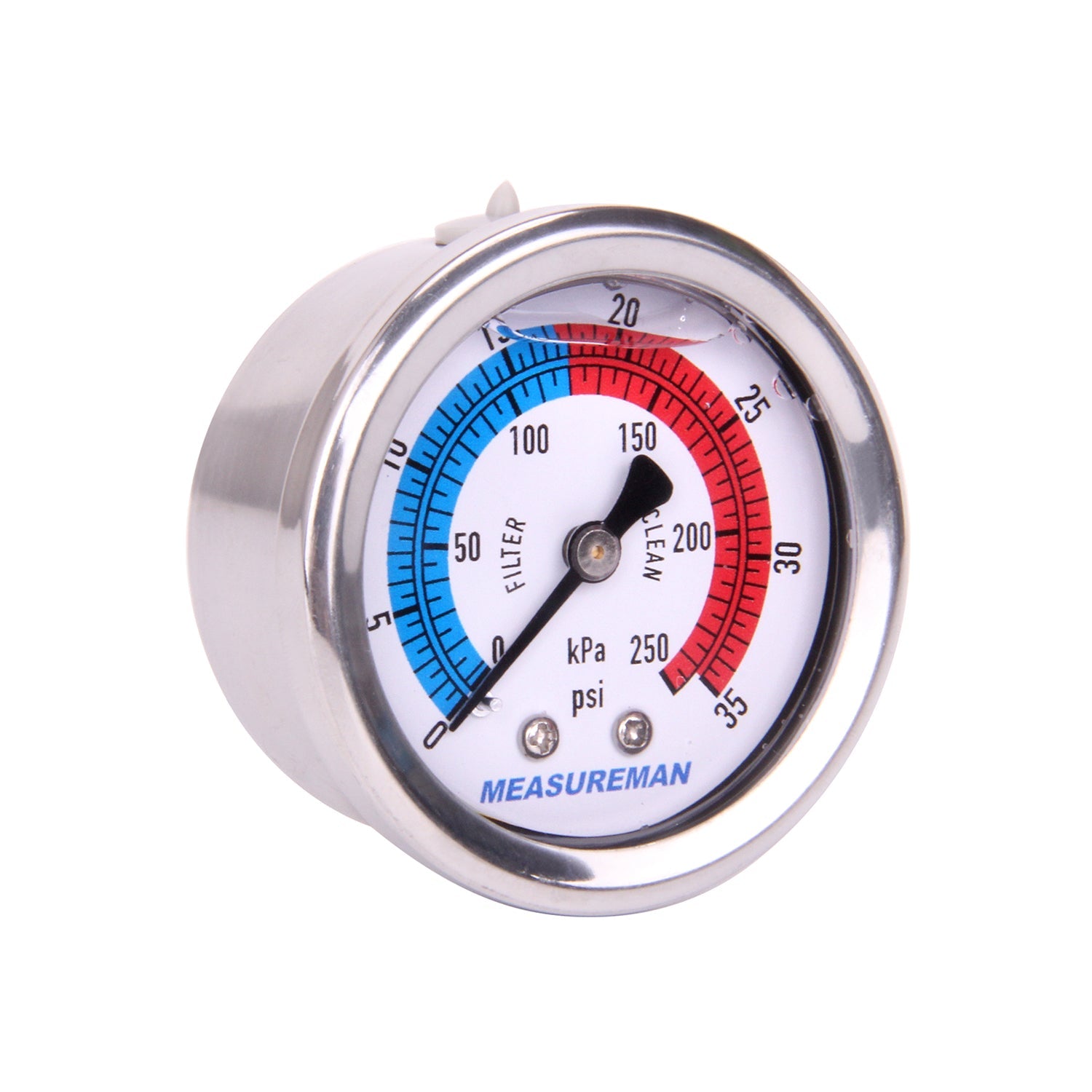

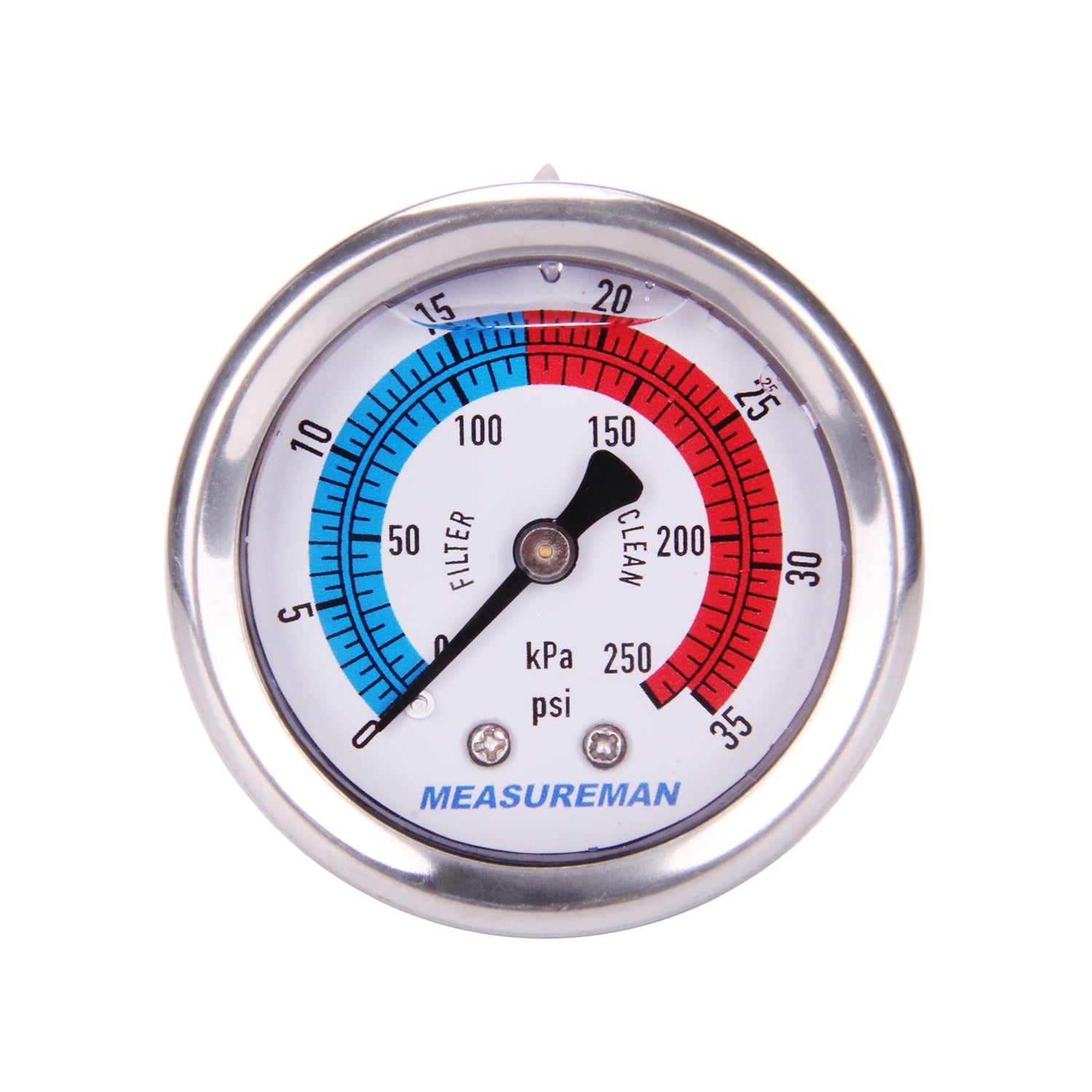

Measureman 2" Dial Size, Liquid Filled Pool Filter Pressure Gauge, 304 Stainless Steel Case, 0-35psi/250kpa,1/4" NPT Center Back Mount-100pcs

  • $799.00
    Unit price per
  • Save $200
Tax included. Shipping calculated at checkout.


Measureman 2" Dial Size, Liquid Filled Pool Filter Pressure Gauge, 304 Stainless Steel Case, 0-35psi/250kpa,1/4" NPT Center Back Mount-100pcs

Shipped from factory direct, about 7-10days

  • For pressure measuring and adjustment on the filter of swimming pool,Spa, Aquarium Water etc
  • 2" dial size, 1/4"NPT center back mount
  • Pressure range: 0-35psi/250kpa dual scale
  • Stainless steel case, brass wetted parts, glycerin filled
  • Accuracy: +/-3-2-3%

Product description

Size:0-35psi/250kpa(1/4" NPT Center Back Mount)

Description
This pressure gauge is designed for pressure measuring and adjustment on the filter for swimming pool, spa, aquarium etc.

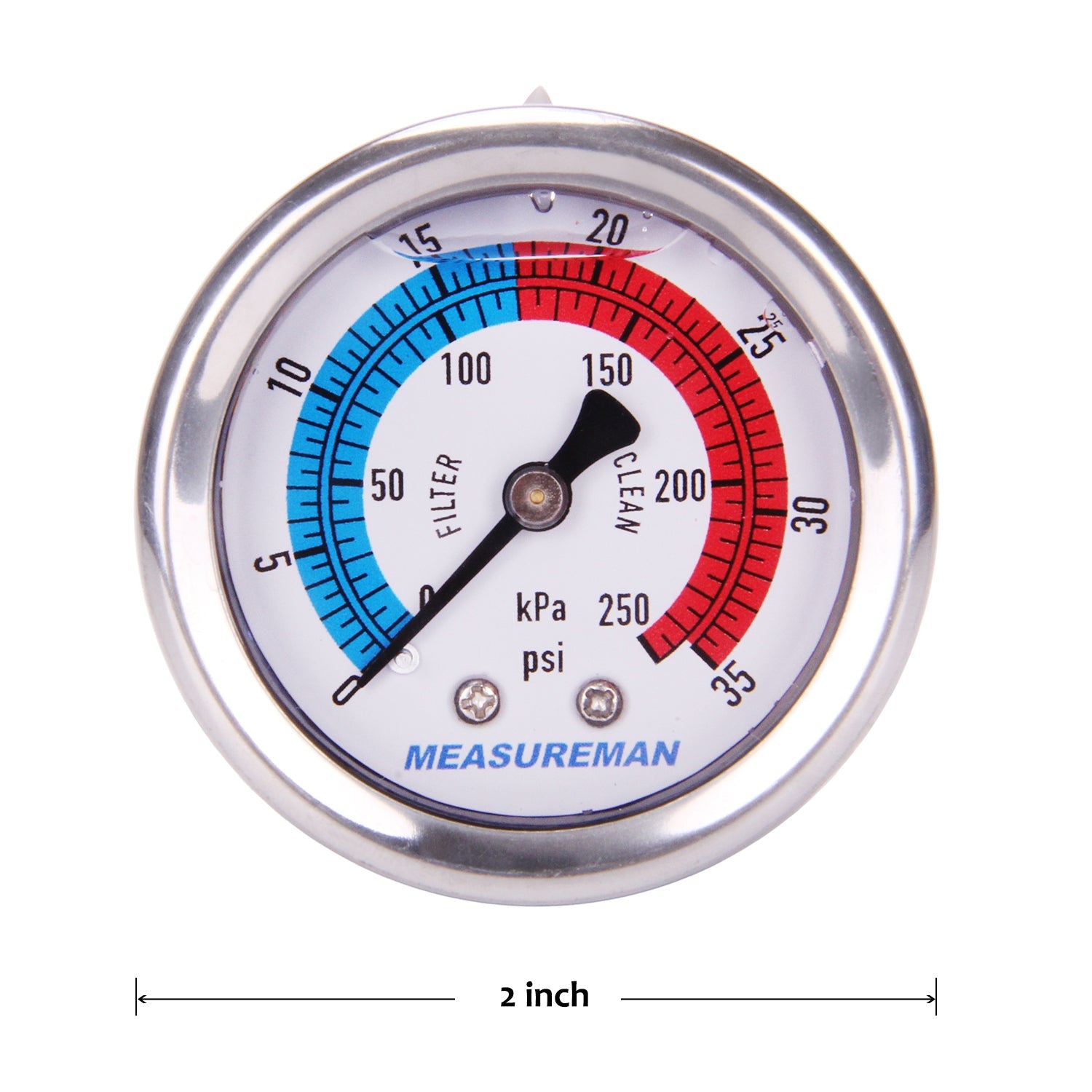

Dial size : 2"

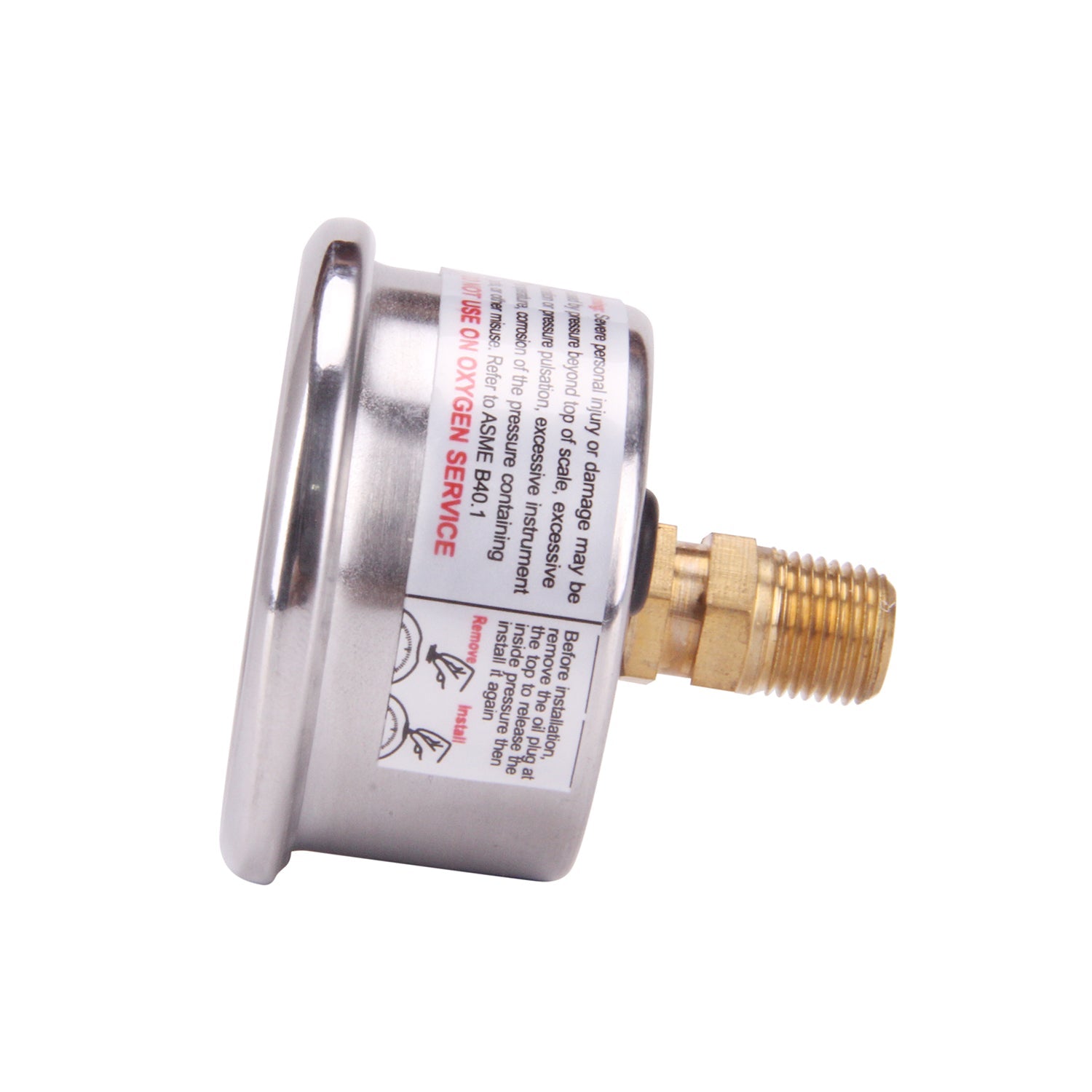

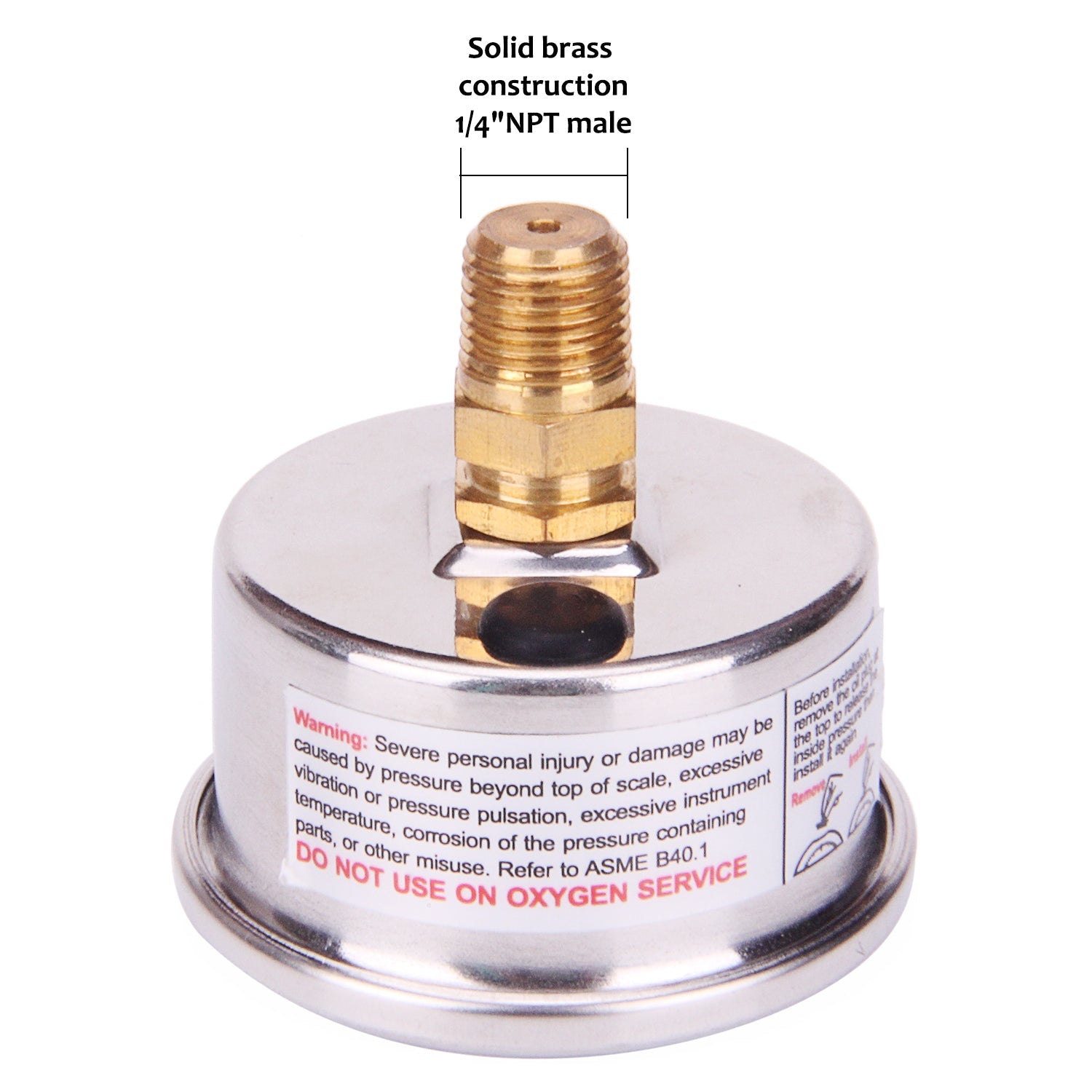

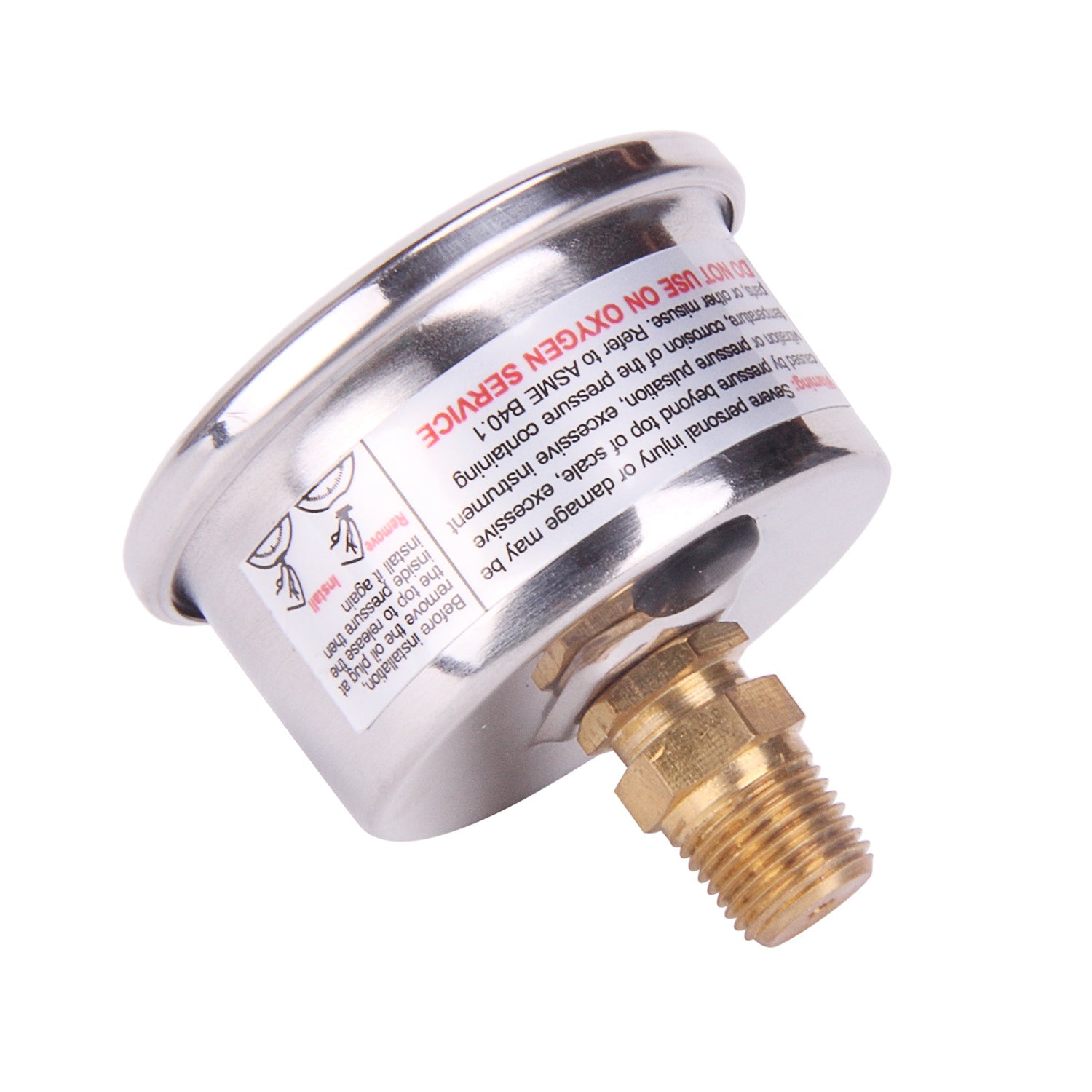

Process connection: 1/4"NPT center back mount male
Case : 304 stainless steel case and crimped ring
Window : Polycarbonate
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Boudon tube : Copper alloy
Movement : Brass
Connection : Brass, one piece design
Oil cap : rubber, gray color

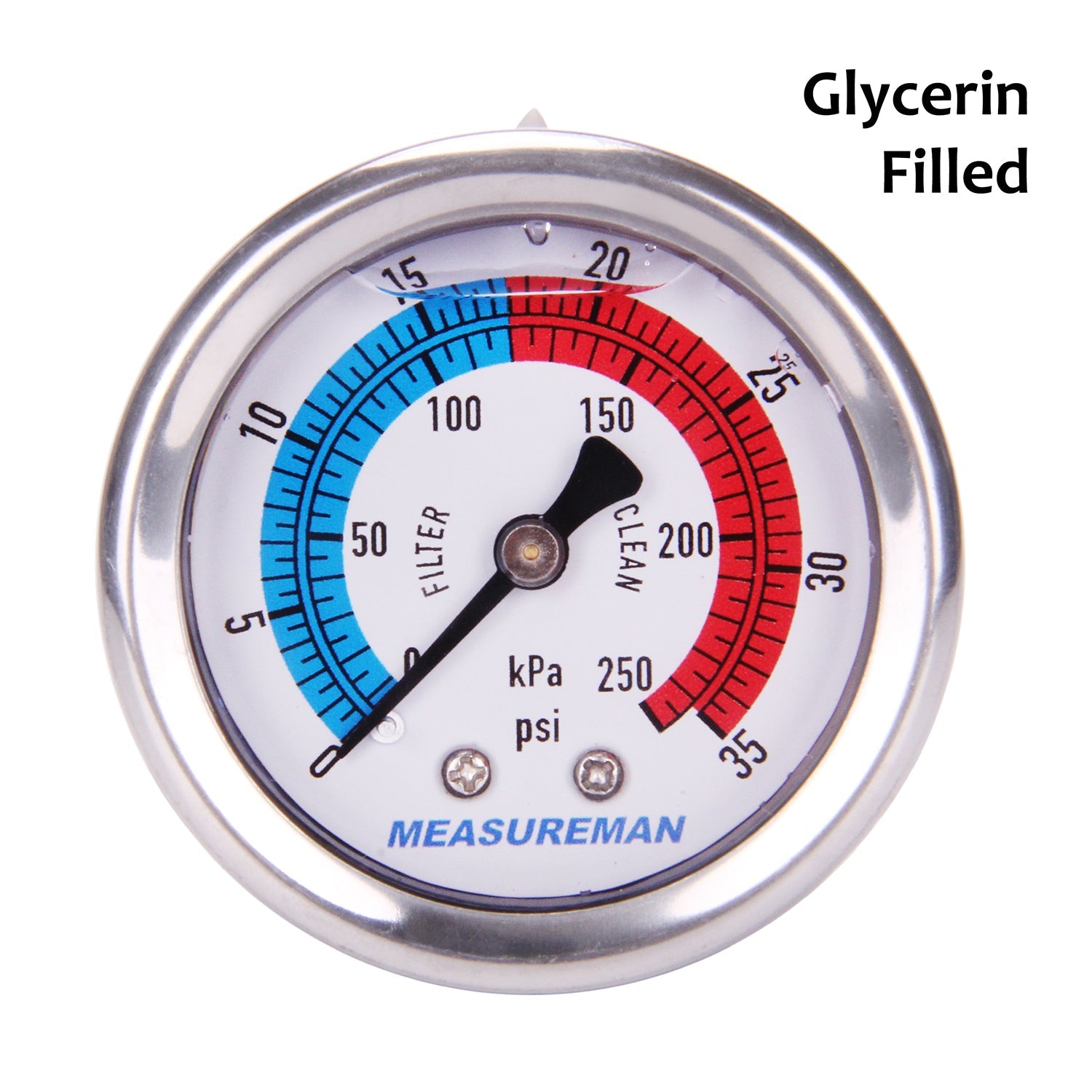

Filling : Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class : IP67
Accuracy : +/-3-2-3%
Pressure range : 0-35psi/250kpa dual scale

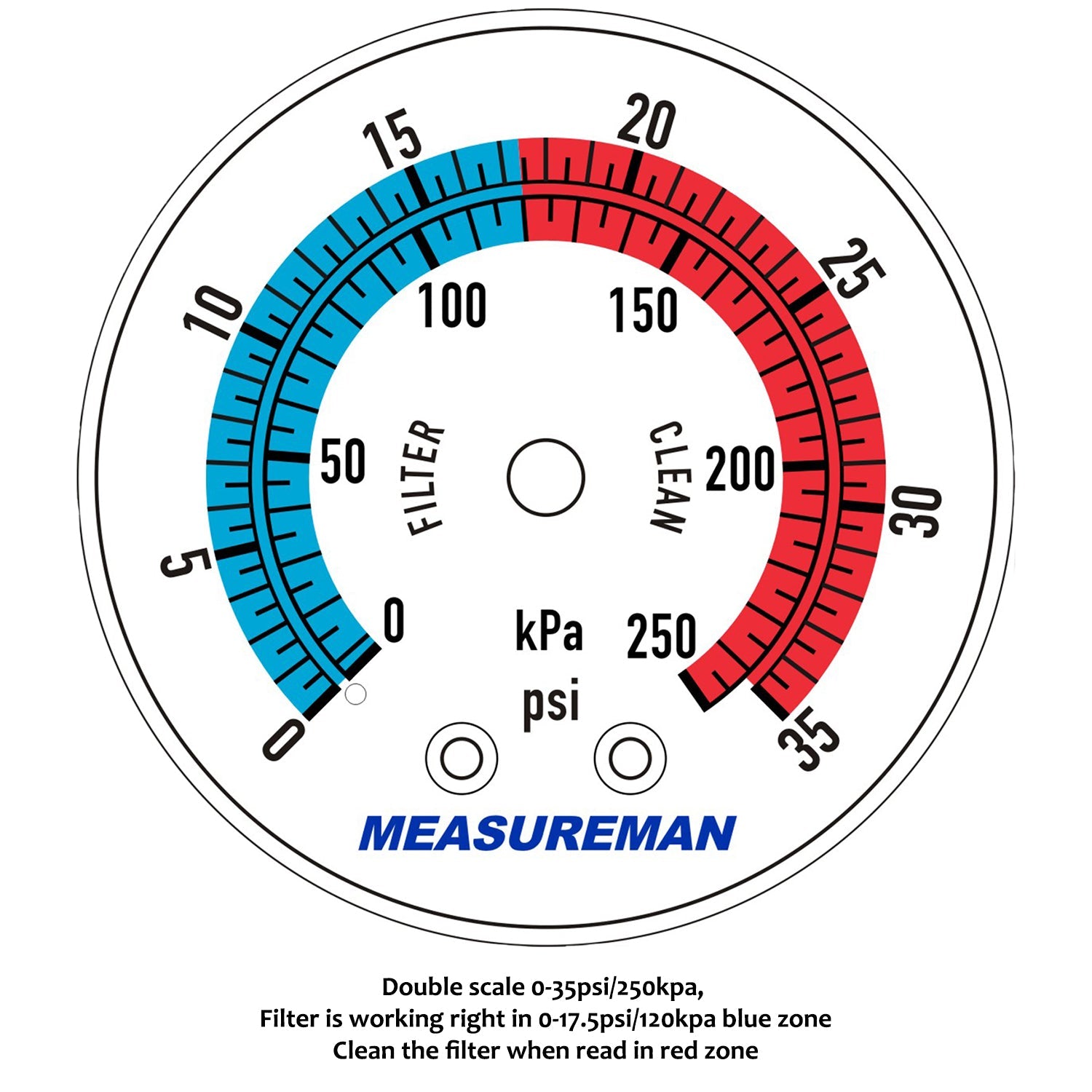

Color zone, blue zone for filter 0-17.5psi, red zone for clean 17.5 to 35psi
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum


Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
