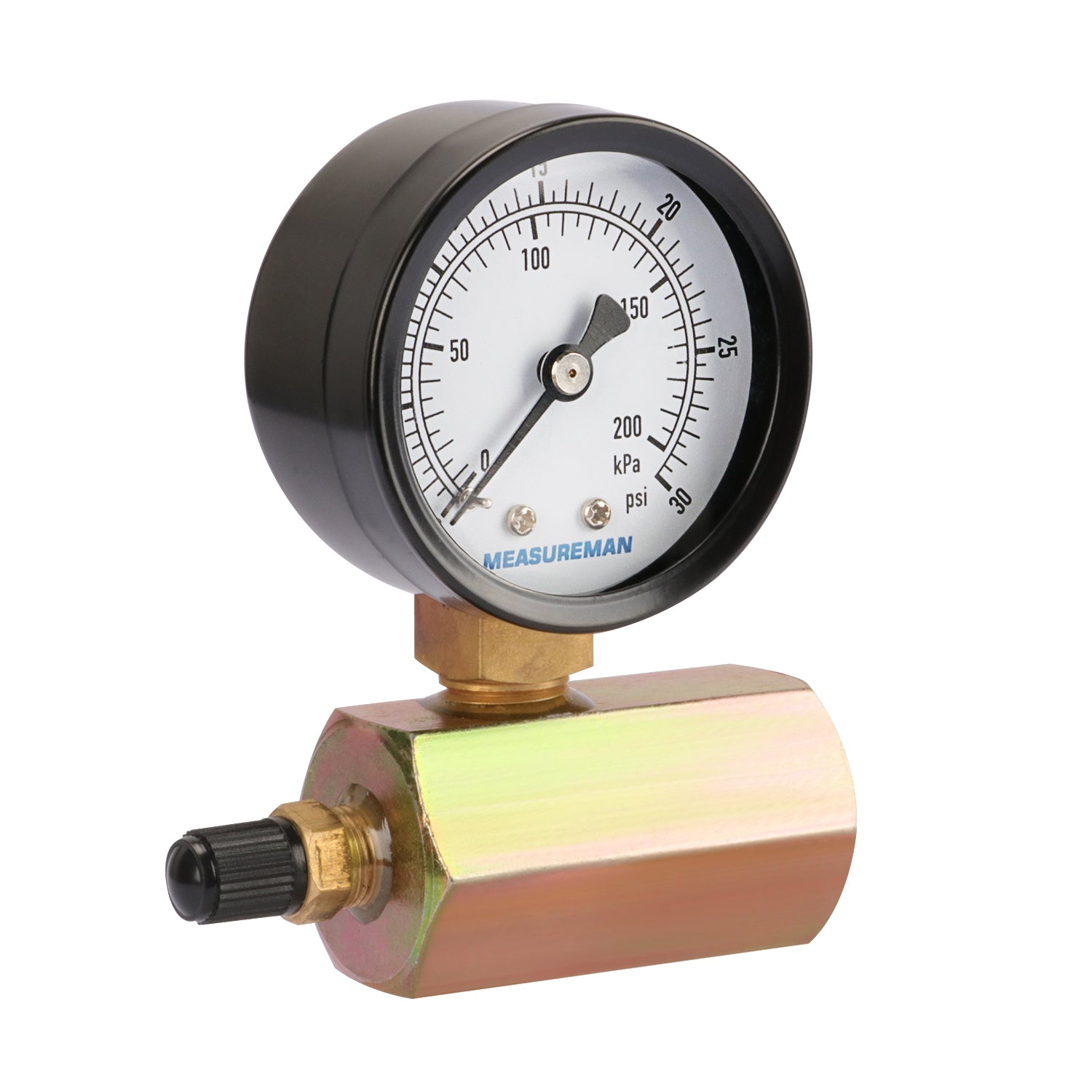

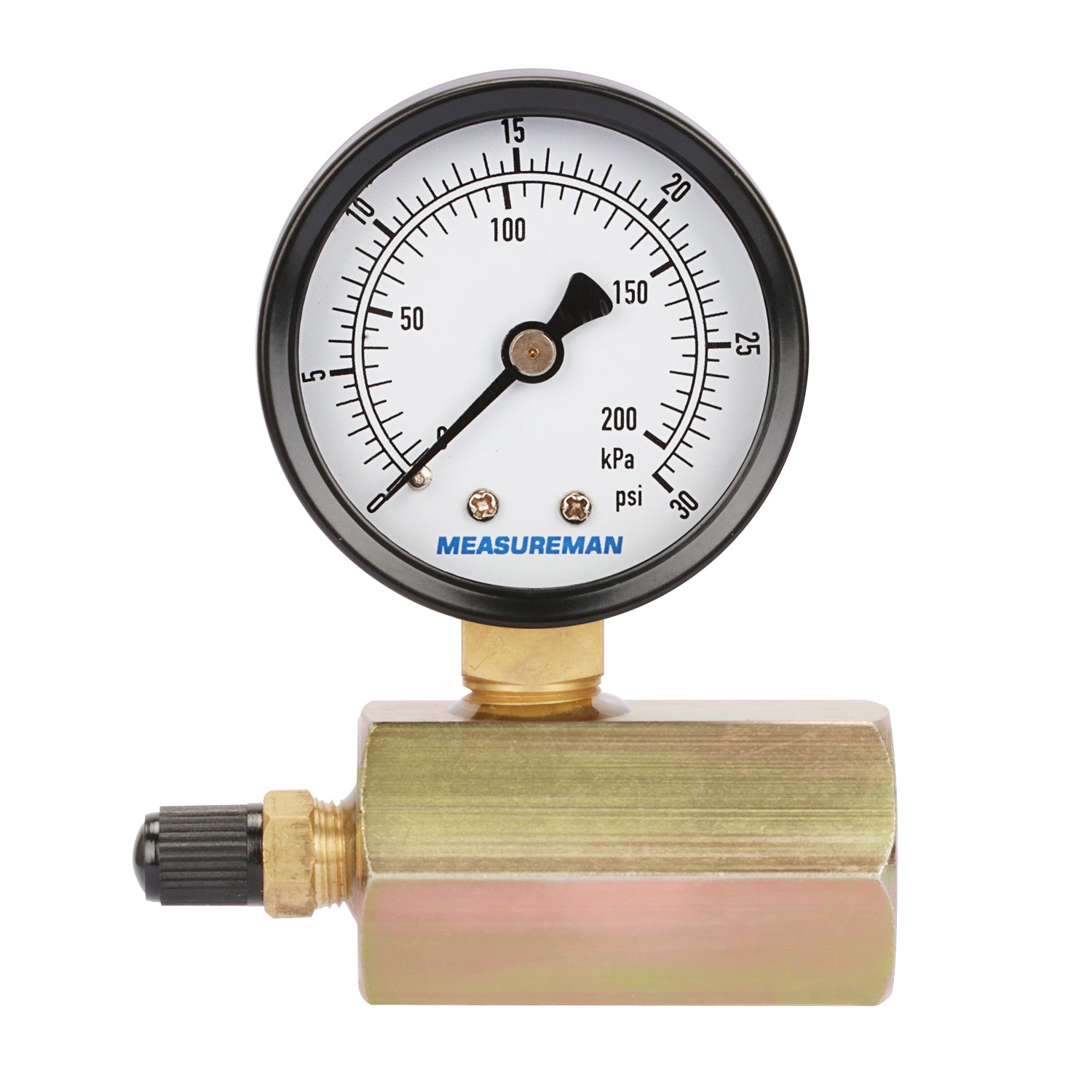

Measureman 2" Steel Gas Pressure Test Gauge Assembly, 3/4" FNPT Connection, 0-30 psi/kpa, -3-2-3% Accuracy

  • For pressure testing on the gas line etc

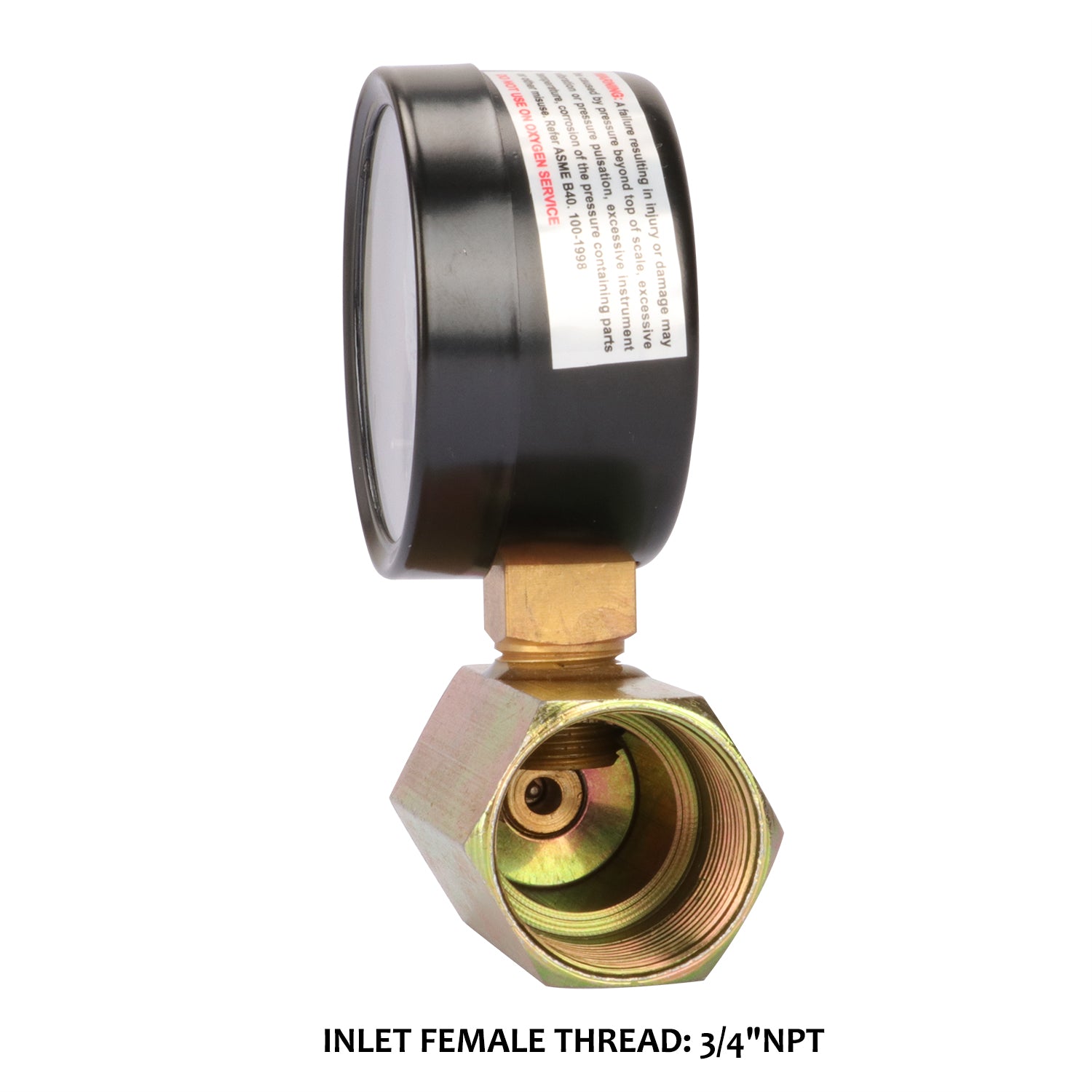

  • 2" dial size, Zinc plated steel gas test body, 3/4” NPT female thread adapter attaches directly to gas line
  • Pressure range: 0-30psi/kpa double scale
  • Black steel case, brass wetted parts, dry
  • Accuracy: +/-3-2-3%

Product description

Size:0-30psi/kpa

Description
This pressure gauge is designed for gas pressure measuring in the gas line etc

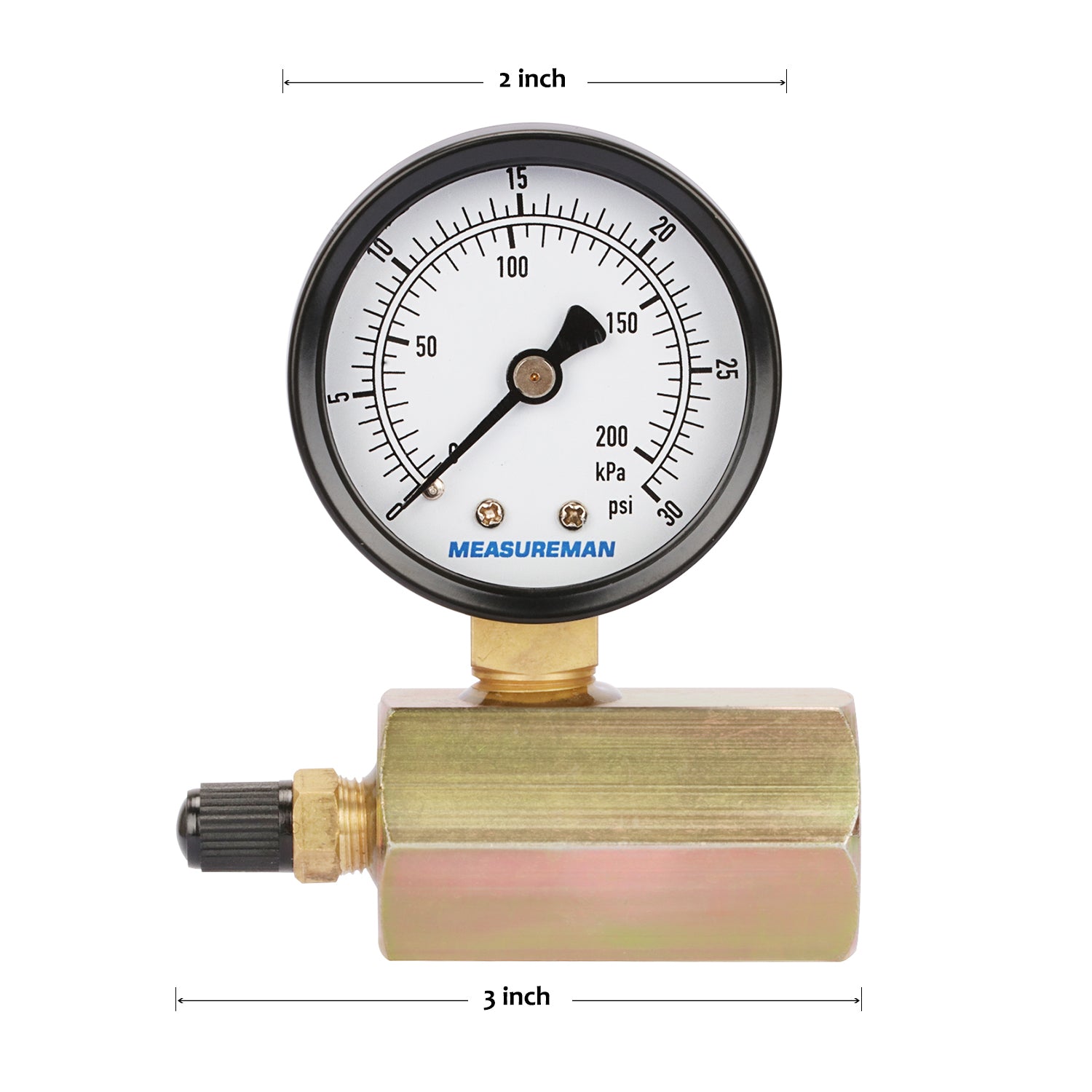

Dial size : 2"

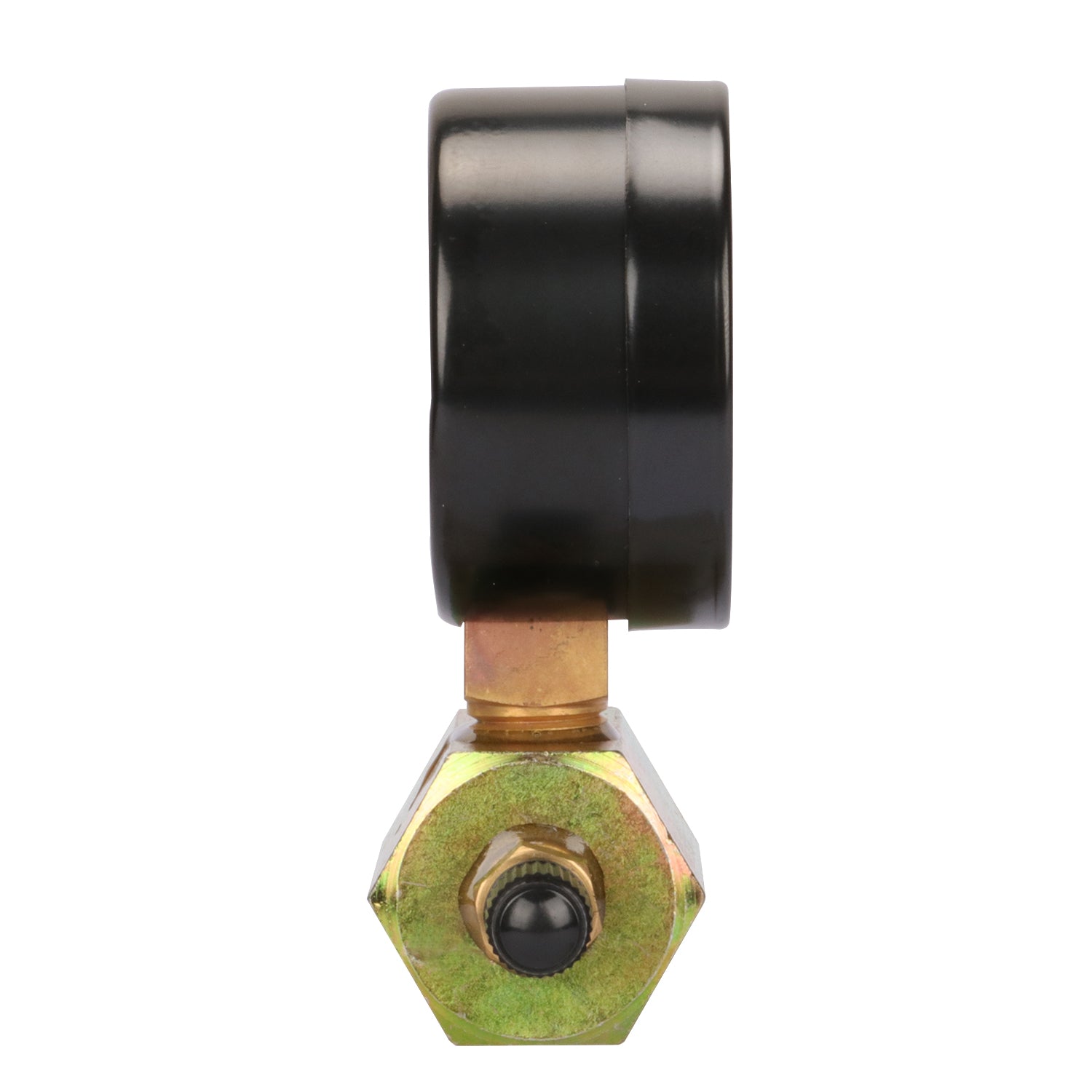

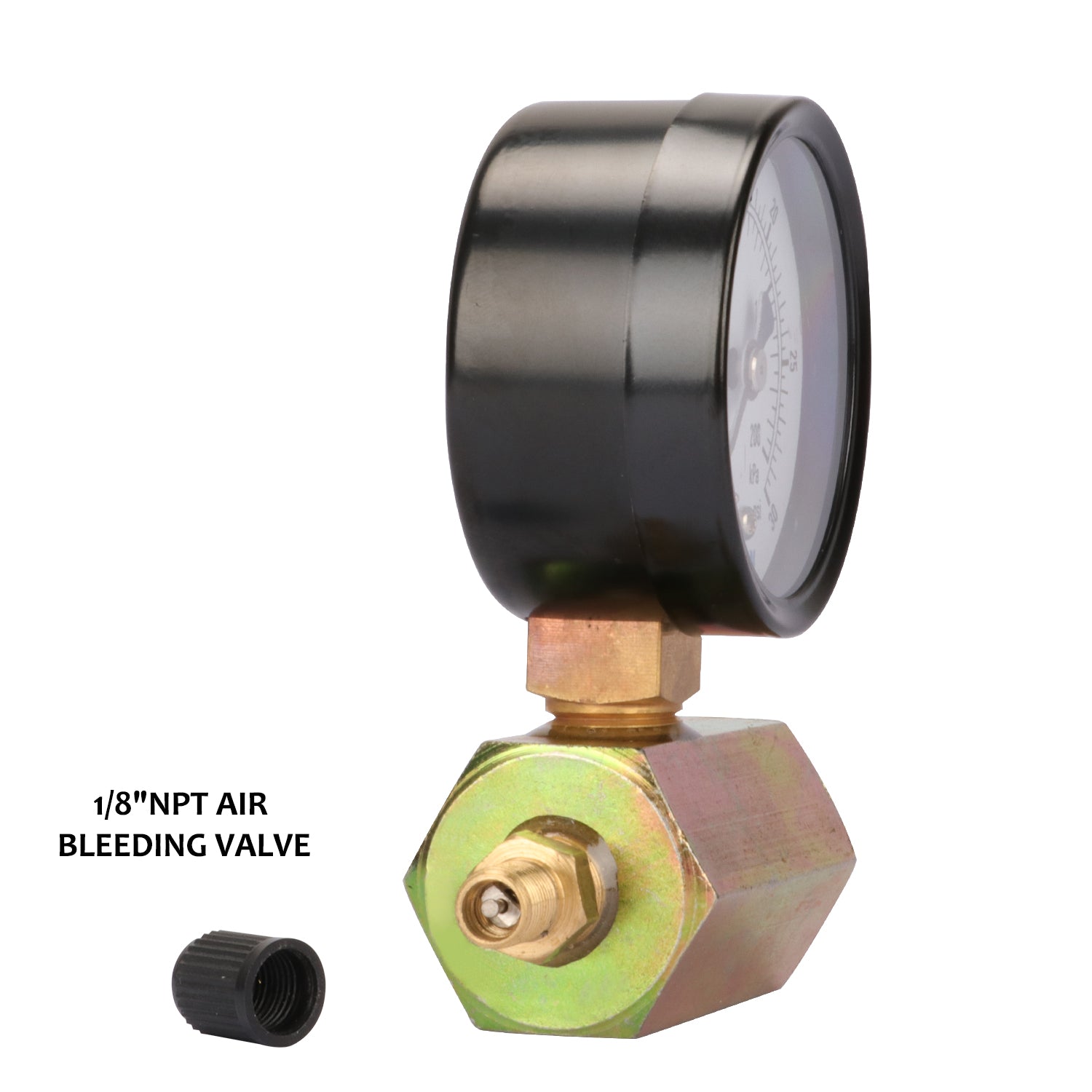

Process connection : 3/4" NPT female, hexagon gas test body in Zinc plated steel 1/8"NPT for pressure release

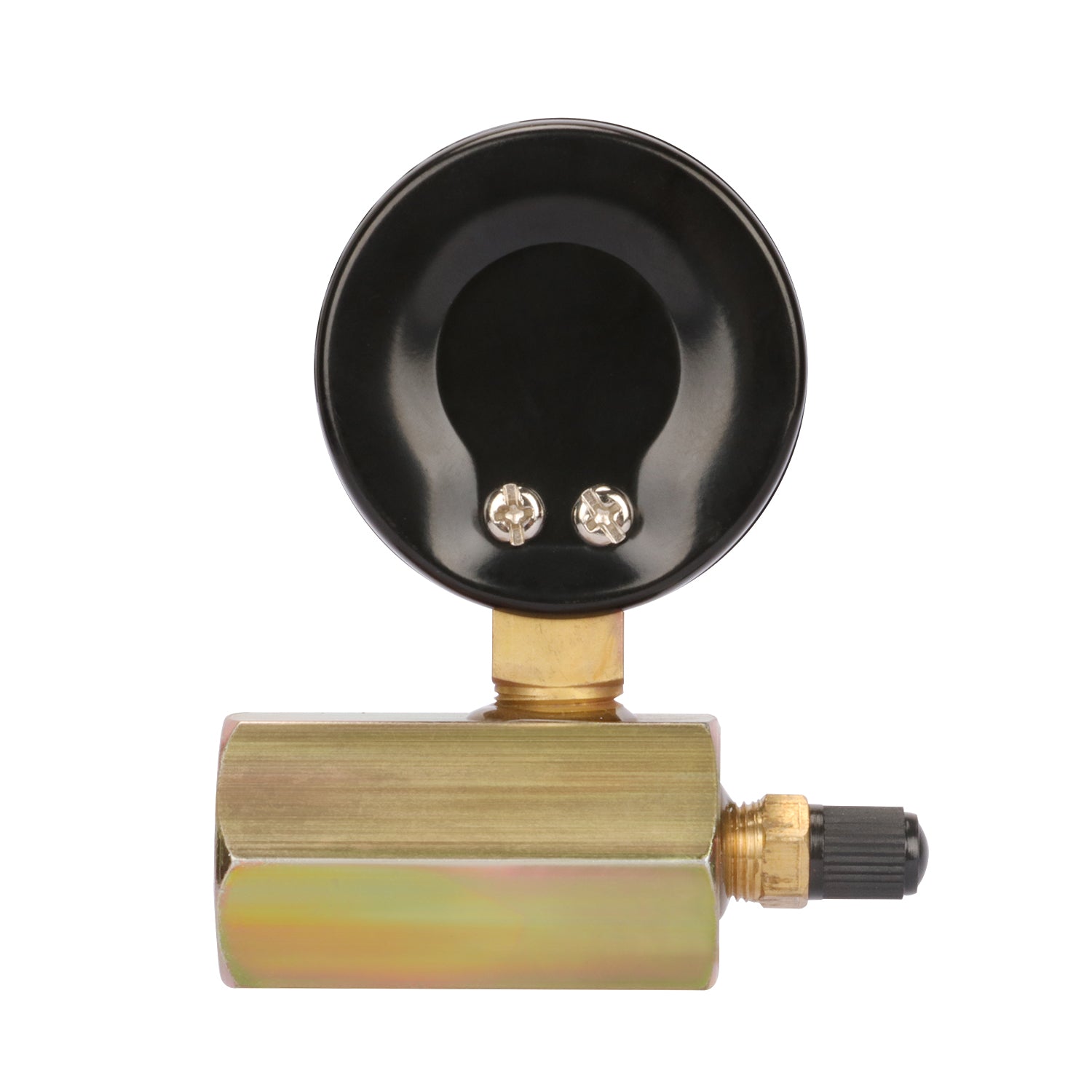

Case : Black steel case and bezel
Window : Clear plastic
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Bourdon tube : Copper alloy
Movement : Brass

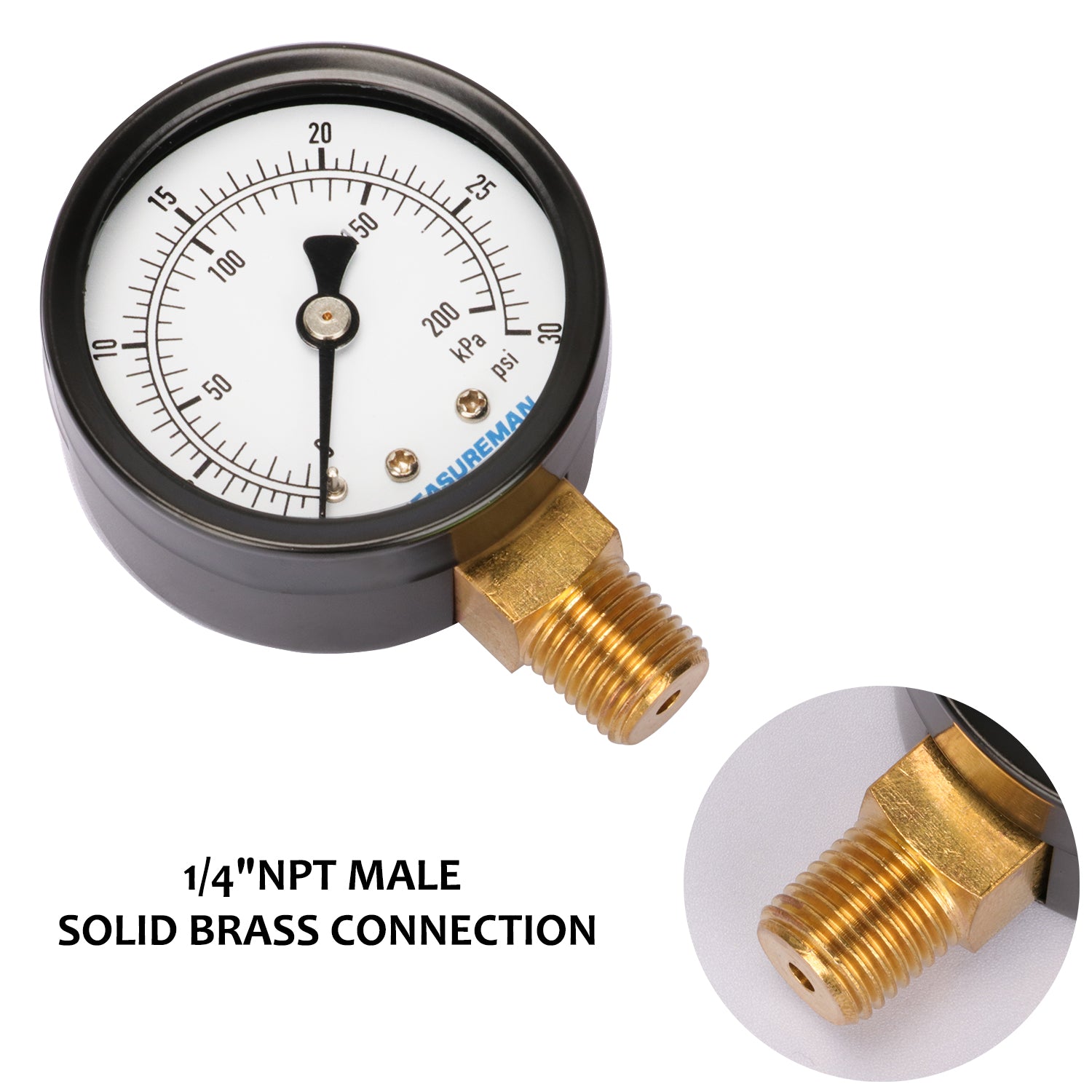

Connection : Brass
IP class : IP43
Accuracy : +/-3-2-3%

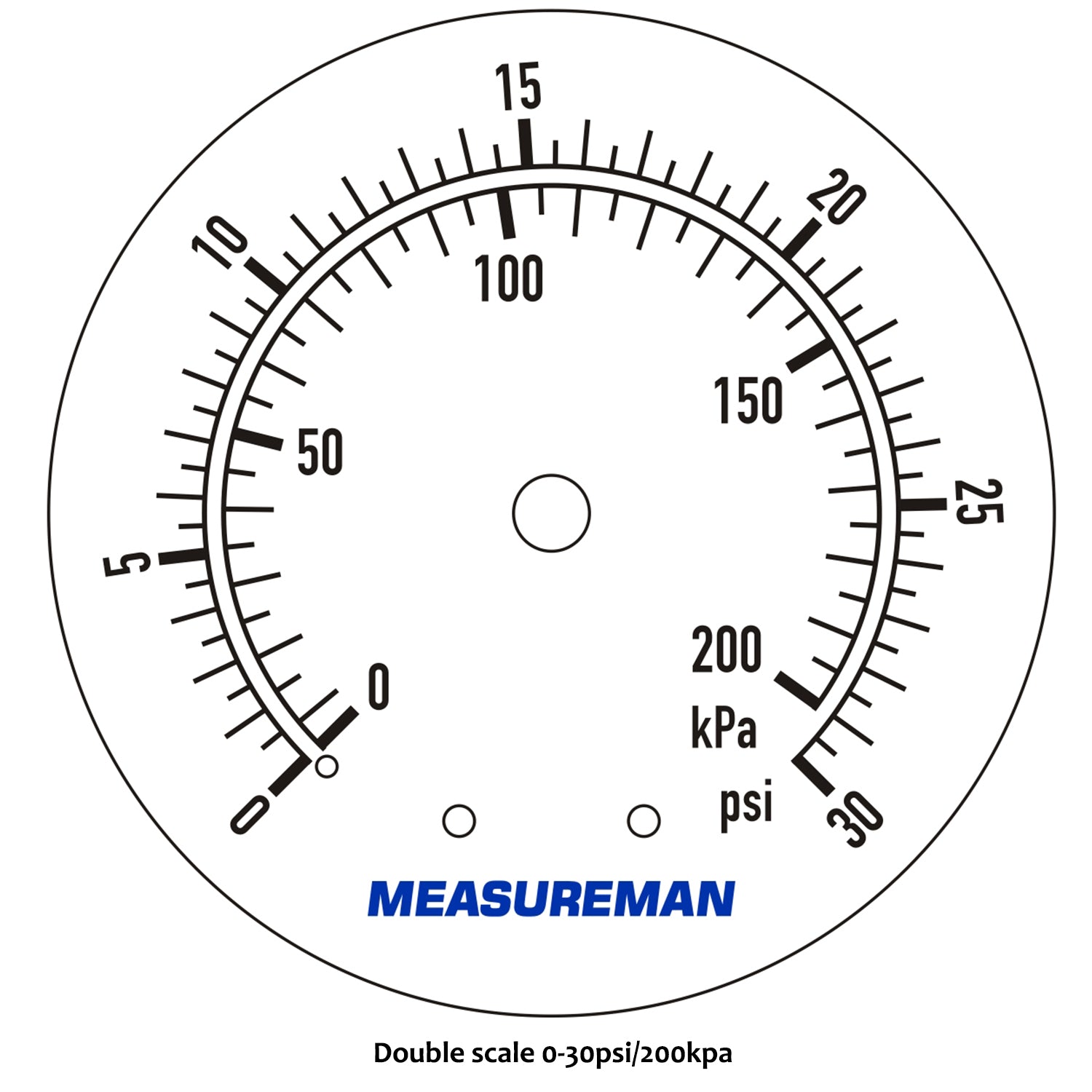

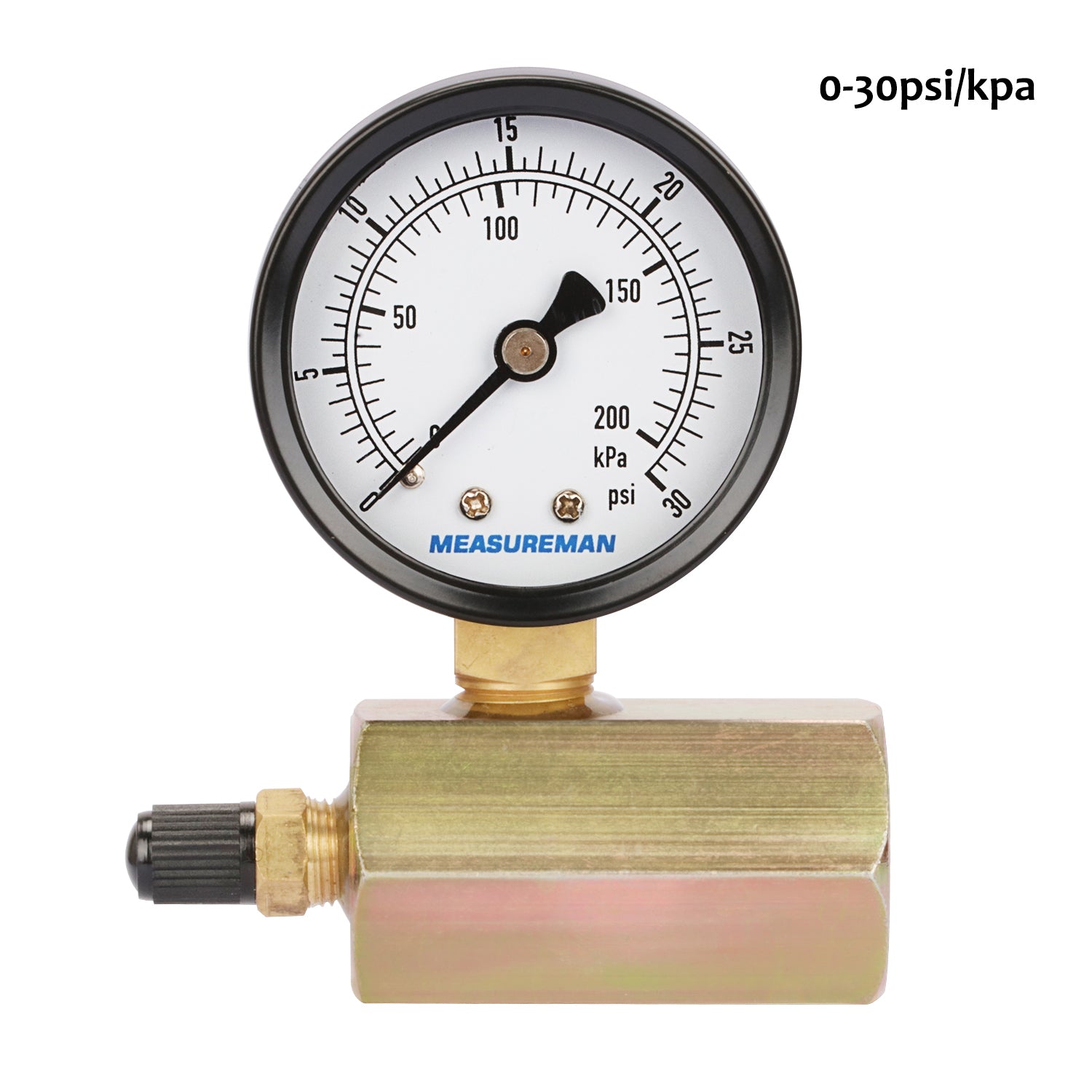

Pressure range : 0-30psi/kpa, double scale
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
