Measureman 3-1/8" dial, Digital Hydraulic Industrial Precision Pressure Gauge with 1/4"NPT Lower Mount, Stainless Steel Case and Connection, 0-10000psi/bar, 0.4%,Battery Powered, with LED Light

  • $99.97
    Unit price per
  • Save $30
Tax included. Shipping calculated at checkout.


Measureman 3-1/8" dial, Digital Hydraulic Industrial Precision Pressure Gauge with 1/4"NPT Lower Mount, Stainless Steel Case and Connection, 0-10000psi/bar, 0.4%,Battery Powered, with LED Light



  • For hydraulic, oil pressure, water pressure, high pressure, air pressure precision measuring, for media which is not corrosive to stainless steel wetted parts
  • Dial size: 3-1/8", bright backlight, 0.4%
  • 4 digit display, 4 units, 700bar, 10000psi, 70Mpa, 700kg/cm2, 150% over load

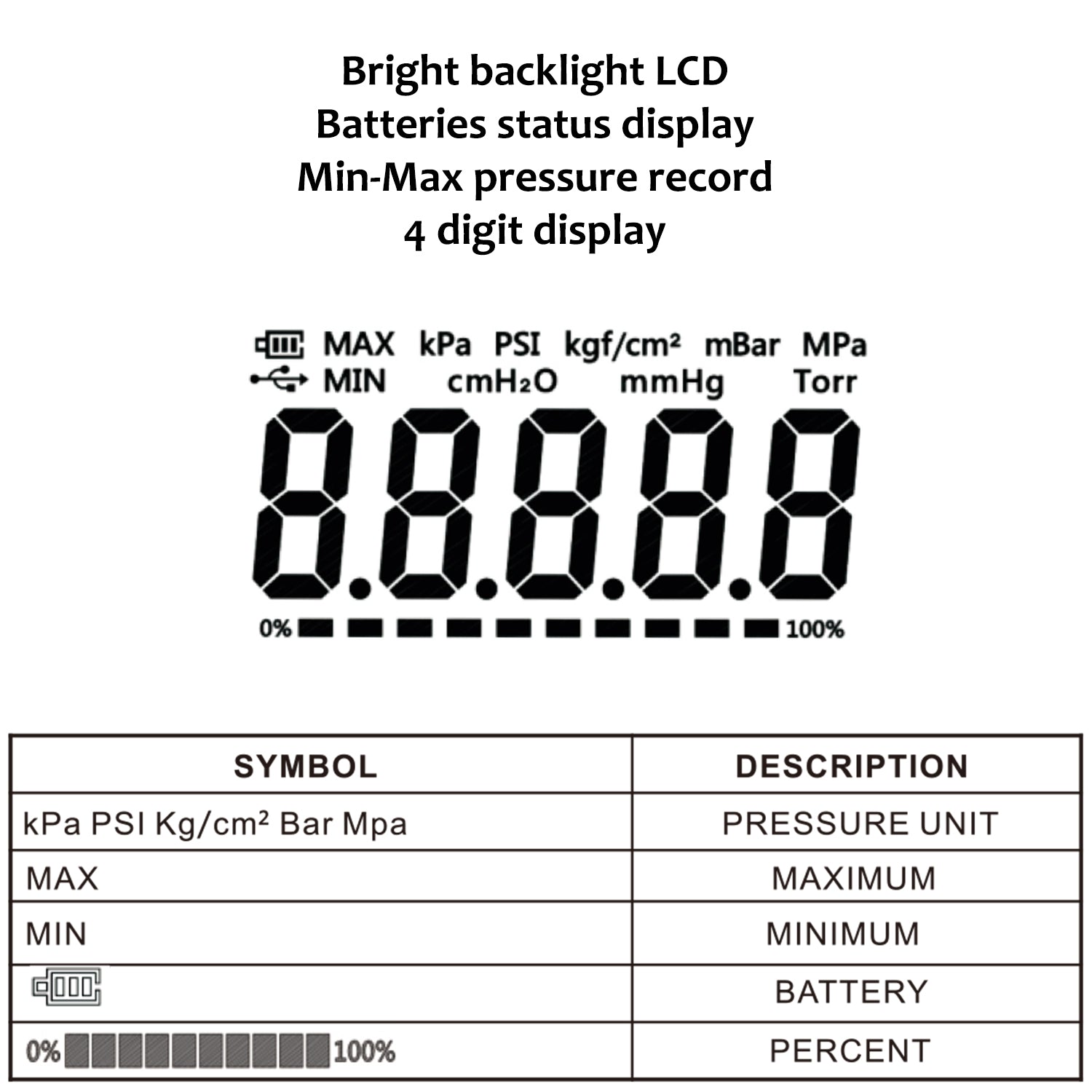

  • Batteries status display, Min-Max pressure record, Pressure progress bar

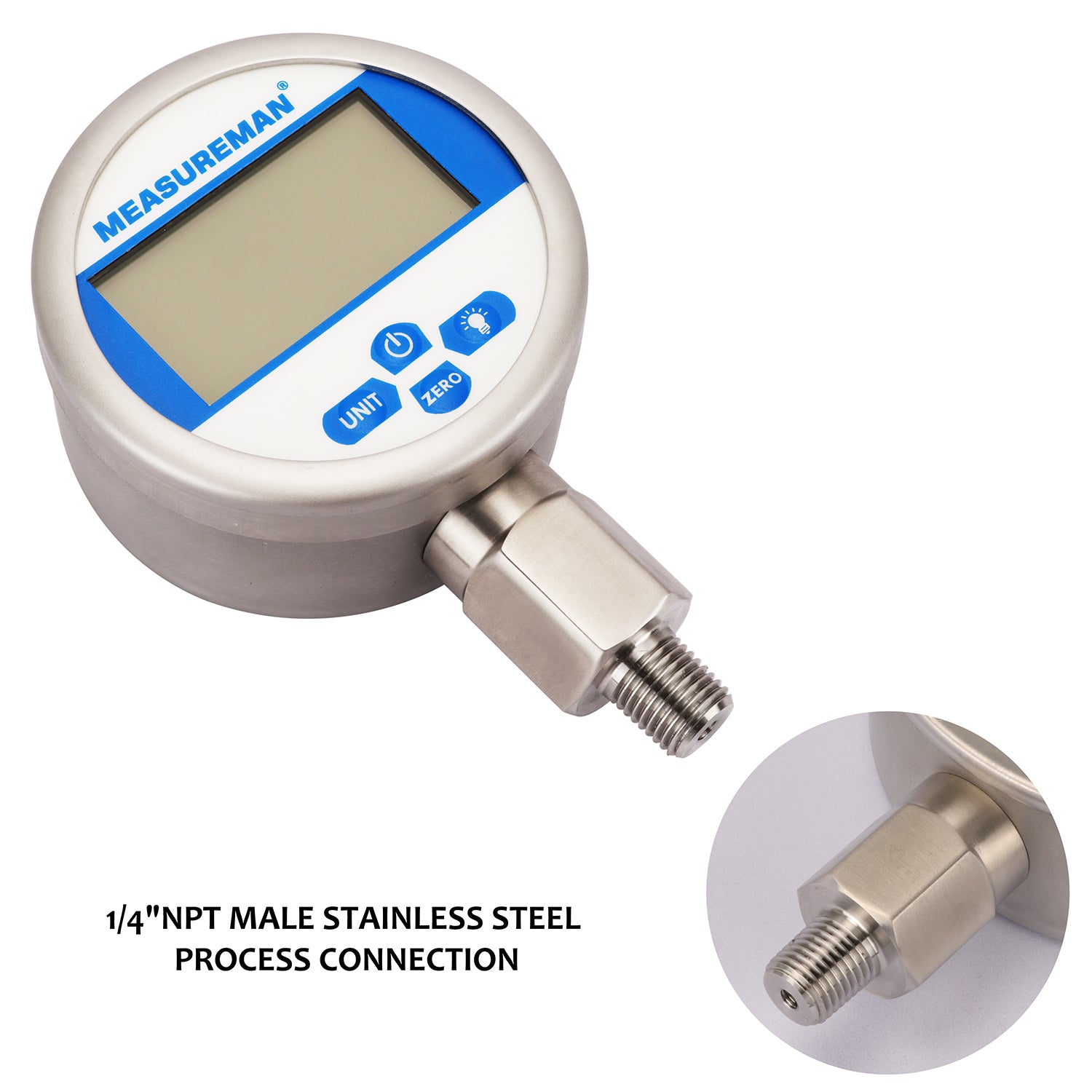

  • 304 Stainless steel connection, 1/4"NPT male

Product description

Size:3-1/8" Dial, 0-10000psi 0.4%

Description
For hydraulic, oil pressure, water pressure, high pressure, air pressure measuring, for media which is not corrosive to stainless steel wetted parts
Dial size : 4"
Pressure Range : 0-10000psi, bar, kg/cm2, Mpa 5 digit display, 4 units, 700bar, 10000psi, 70Mpa, 700kg/cm2, 150% over load
Batteries status display
Pressure progress bar
Min-Max pressure record
Process connection : 1/4"NPT male, lower mount
Overload Capacity : 150%

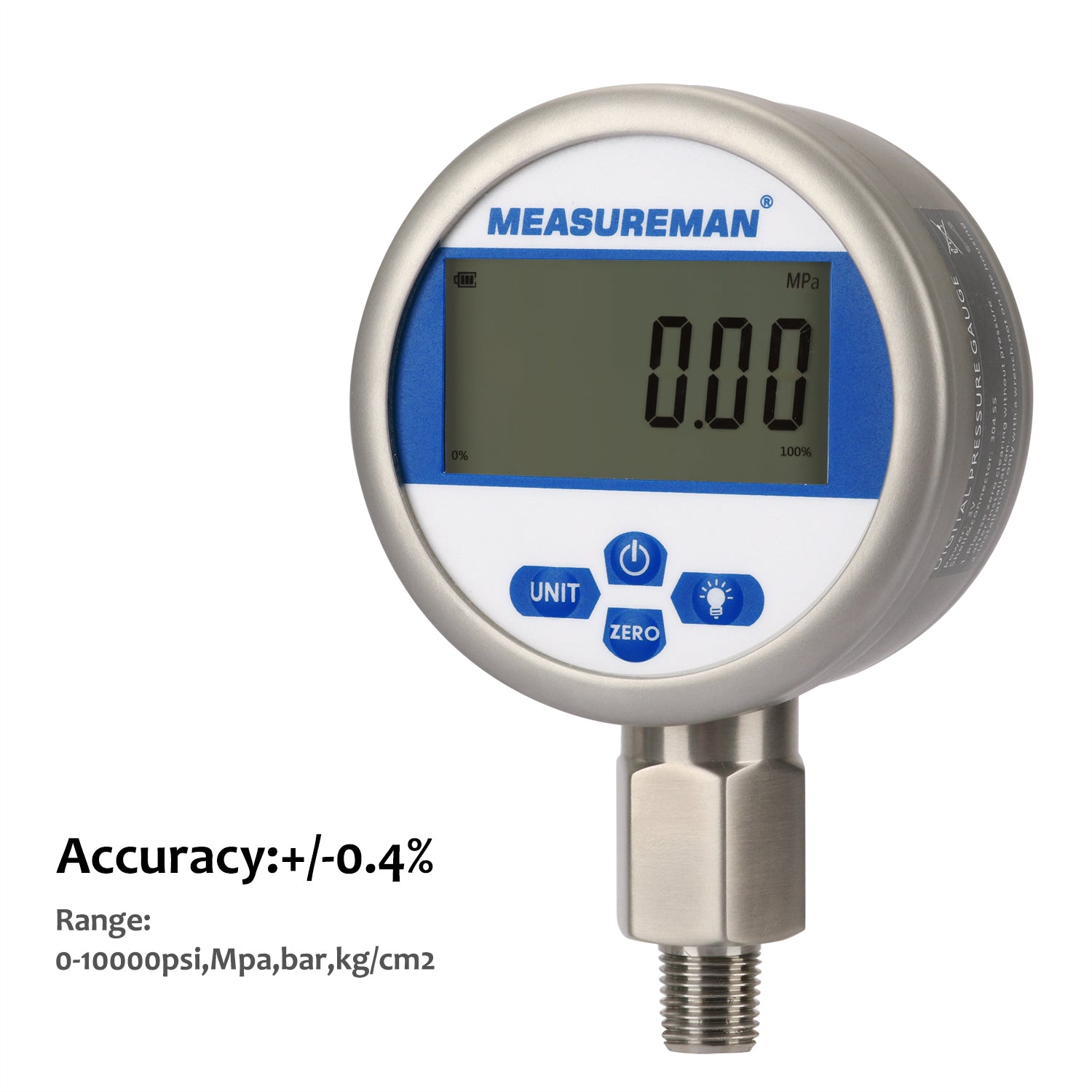

Accuracy : 0.4%

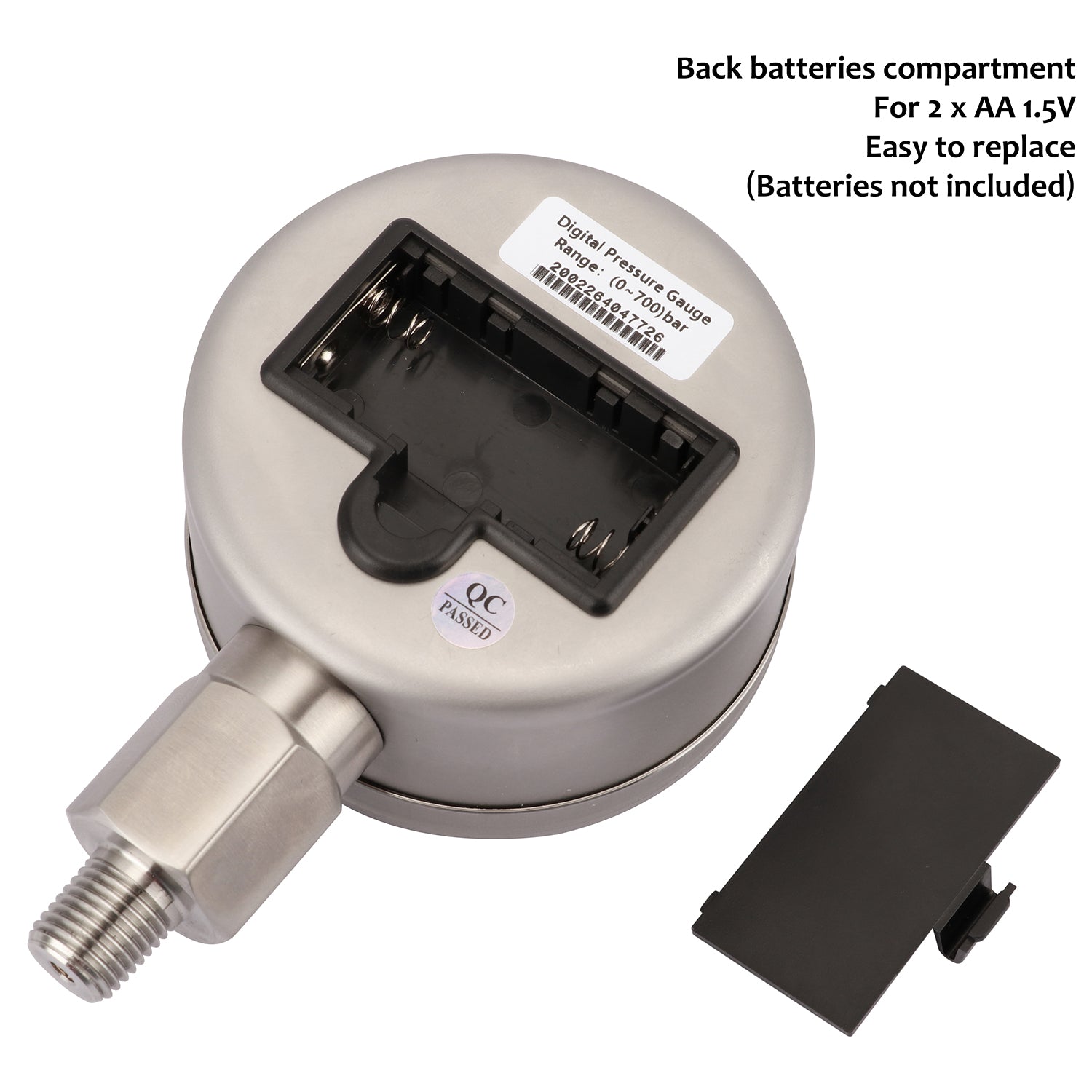

Input Voltage : 4.5V (three 1.5V AAA batteries) or micro USB input
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Case : 304 stainless steel
Wetted parts : 304 stainless steel
IP Class : IP54

How to operate :

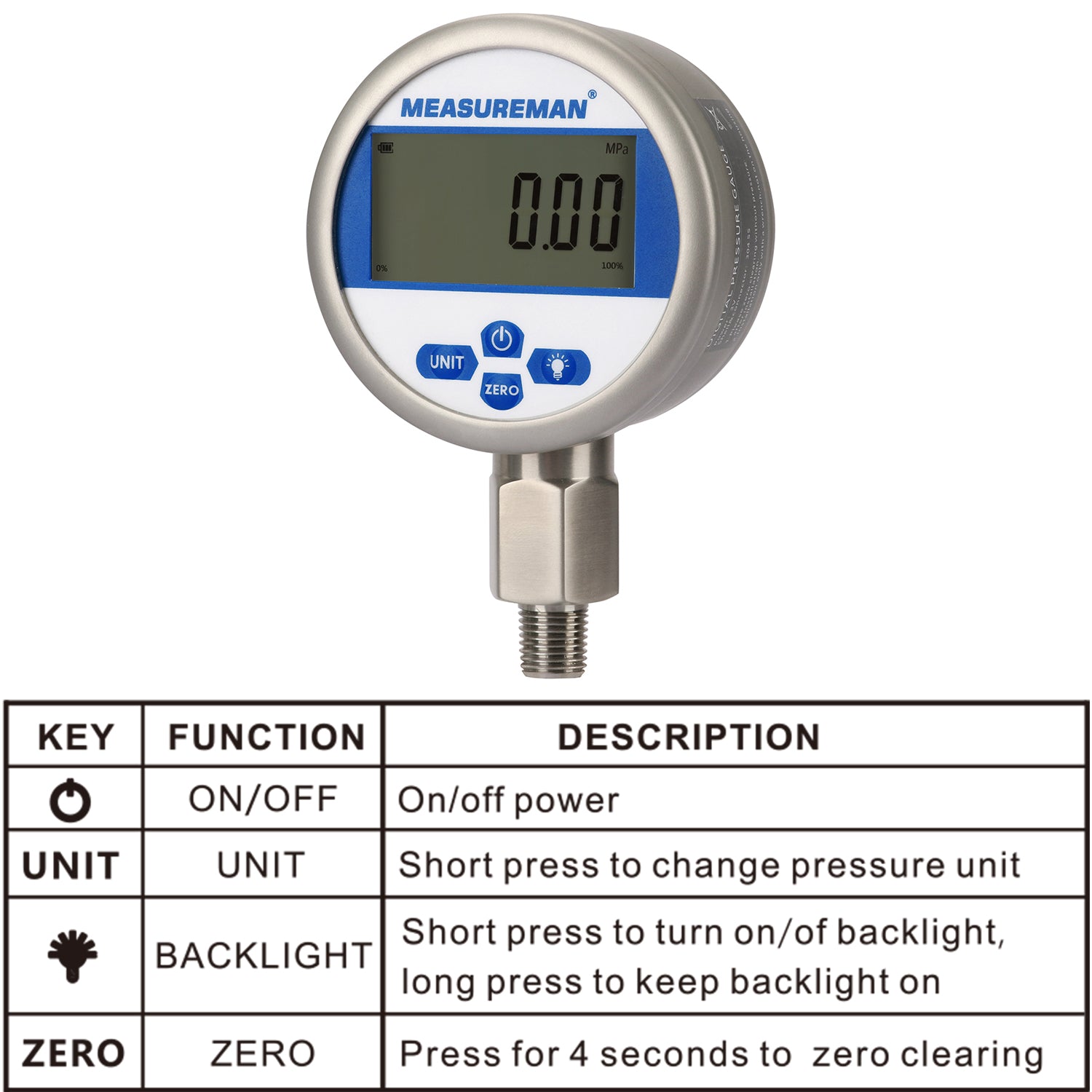

Button Description :
Power button : Start up/Shut down
UNIT button : Press the button, cyclic switching the pressure unit Pressure the "UNIT" botton, Show the maximum minimum value, corresponding to the MAX/MIN logo light up.
ZERO button : Press Zero button for 4 seconds, Calibration zero
LIGHT button : Press Light button start up/shut down backlight, Press for a long time, the back-light always light up

Package Content:
1 x Digital Pressure Gauge,
1 x Operation Manual.
