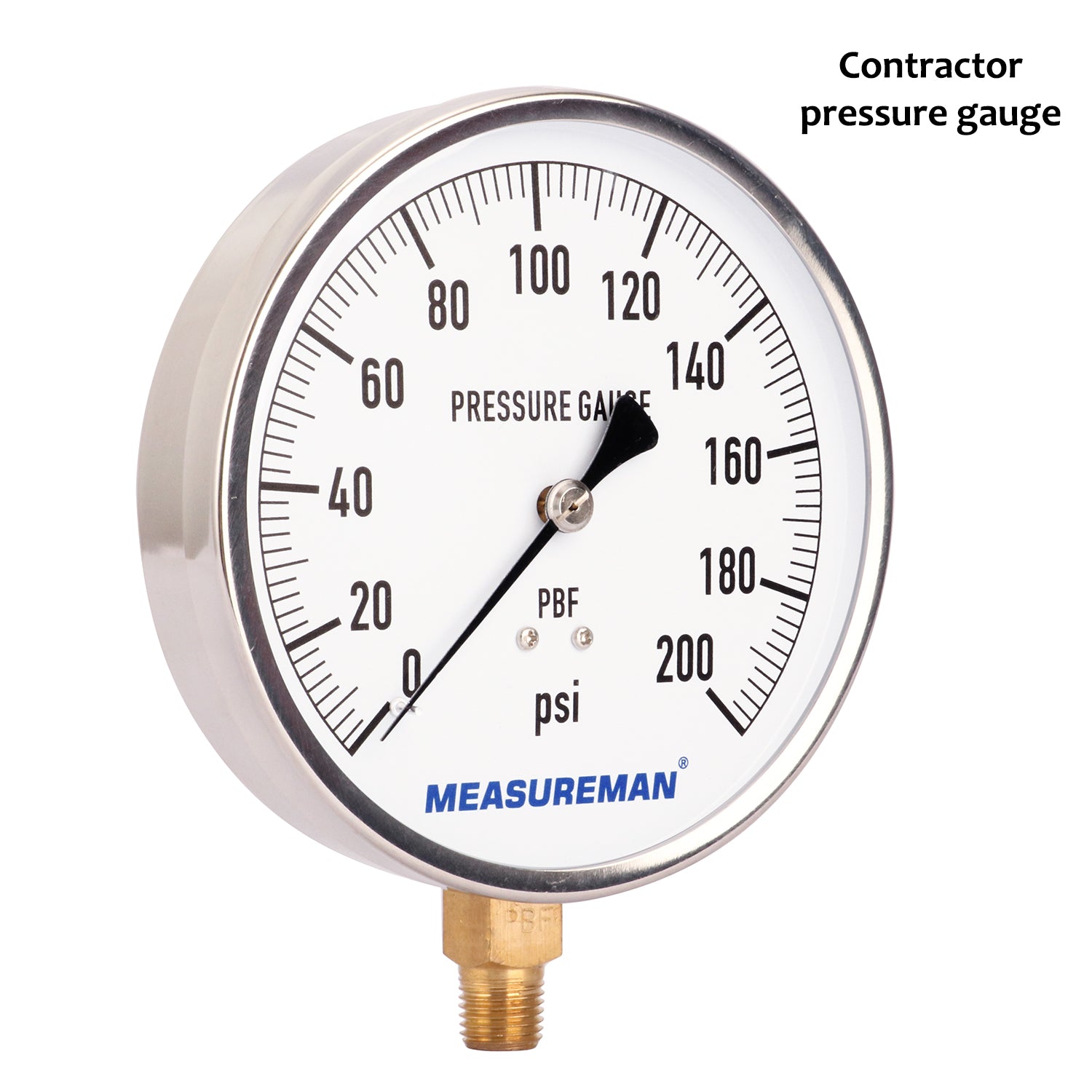

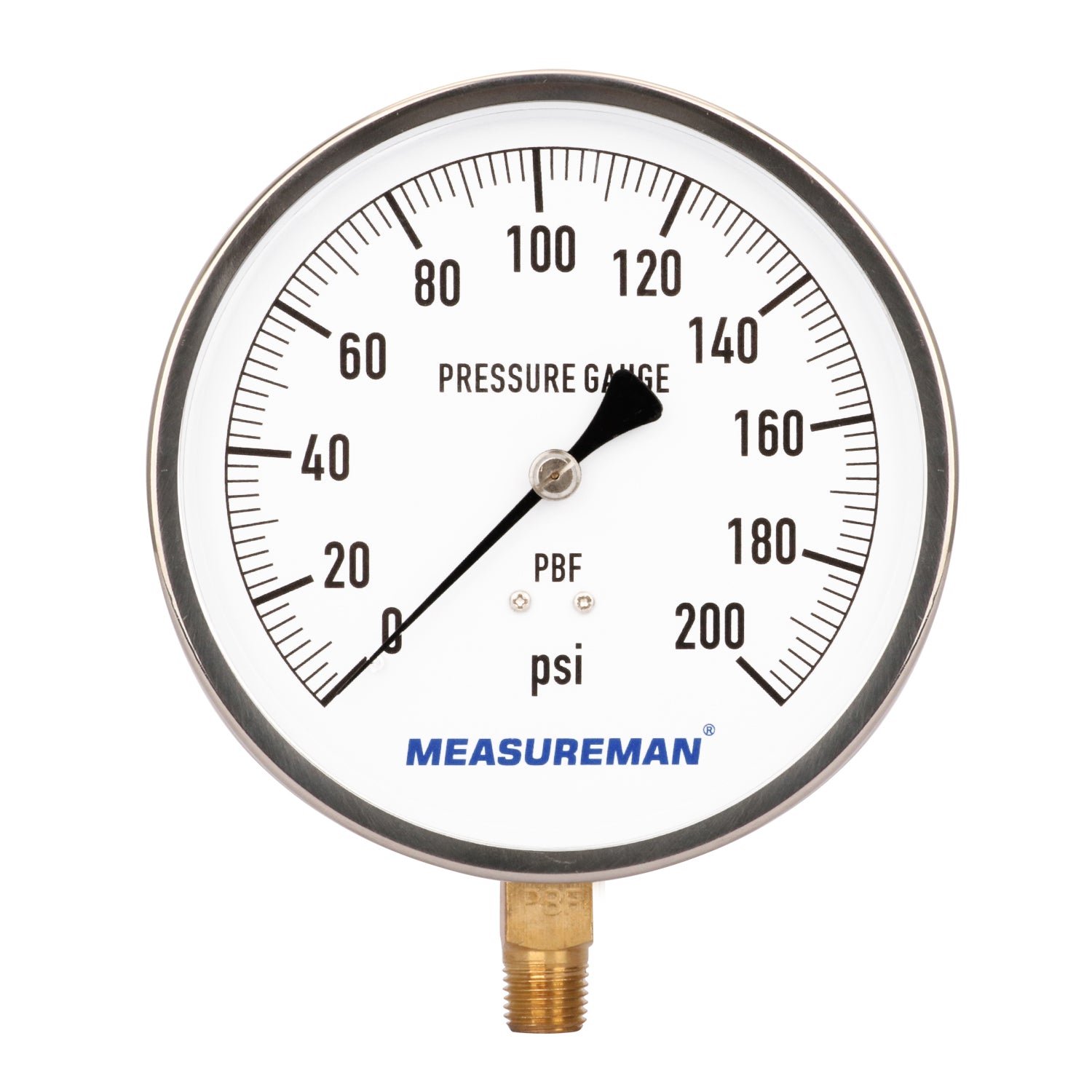

MEASUREMAN 304 Stainless Steel Case, Contractor Pressure Gauge, 0-200Psi, 4-1/2" Dial Size, -1% Accuracy, 1/4" NPT Lower Mount
MEASUREMAN 304 Stainless Steel Case, Contractor Pressure Gauge, 0-200Psi, 4-1/2" Dial Size, -1% Accuracy, 1/4" NPT Lower Mount
- For measuring water or air pressure for contractors
- 4-1/2" large dial size, 1/4"NPT lower mount,
- Pressure range: 0-200psi single scale
- Stainless steel case, Lead free brass wetted parts
- Adjustable pointer, +/-1% accuracy
Product description
Description
"This 4-1/2"" dial size gauge is designed for contractors, which is used for measuring of the water and air pressure in the Heating, Cooling, Ventilation and Cooling Industries. It is also available for drinking water system.
The 4-1/2"" large dial size, is easy to see from distance.

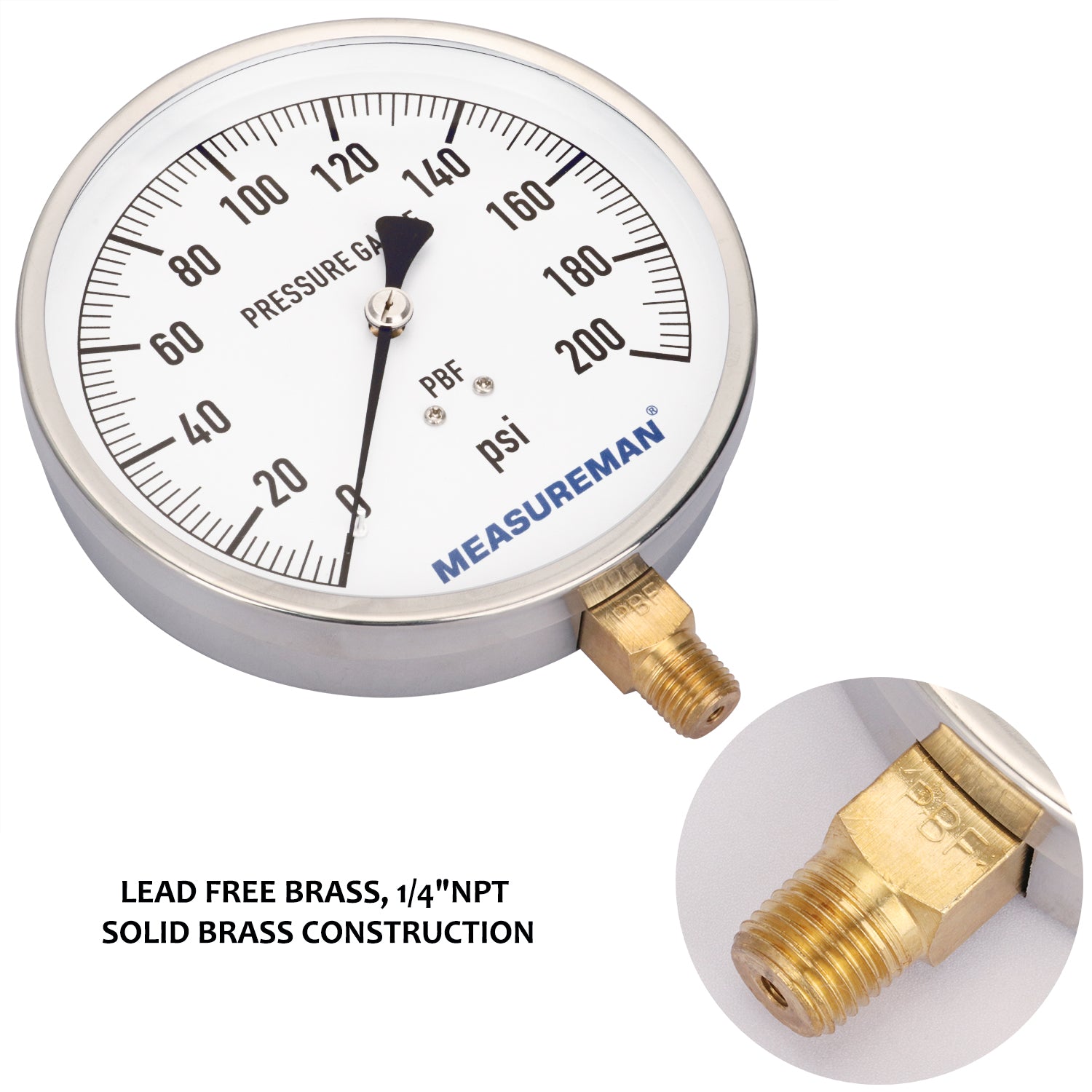

Process connection: 1/4""NPT male lower mount
This gauge is made with Lead Free wetted parts according to California AB 1953 standard and 2014 US Safe Drinking Water Act. Lead Free brass connection, Lead Free bourdon tube, Lead Free solder.
Case: 304 stainless steel case and bezel ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop

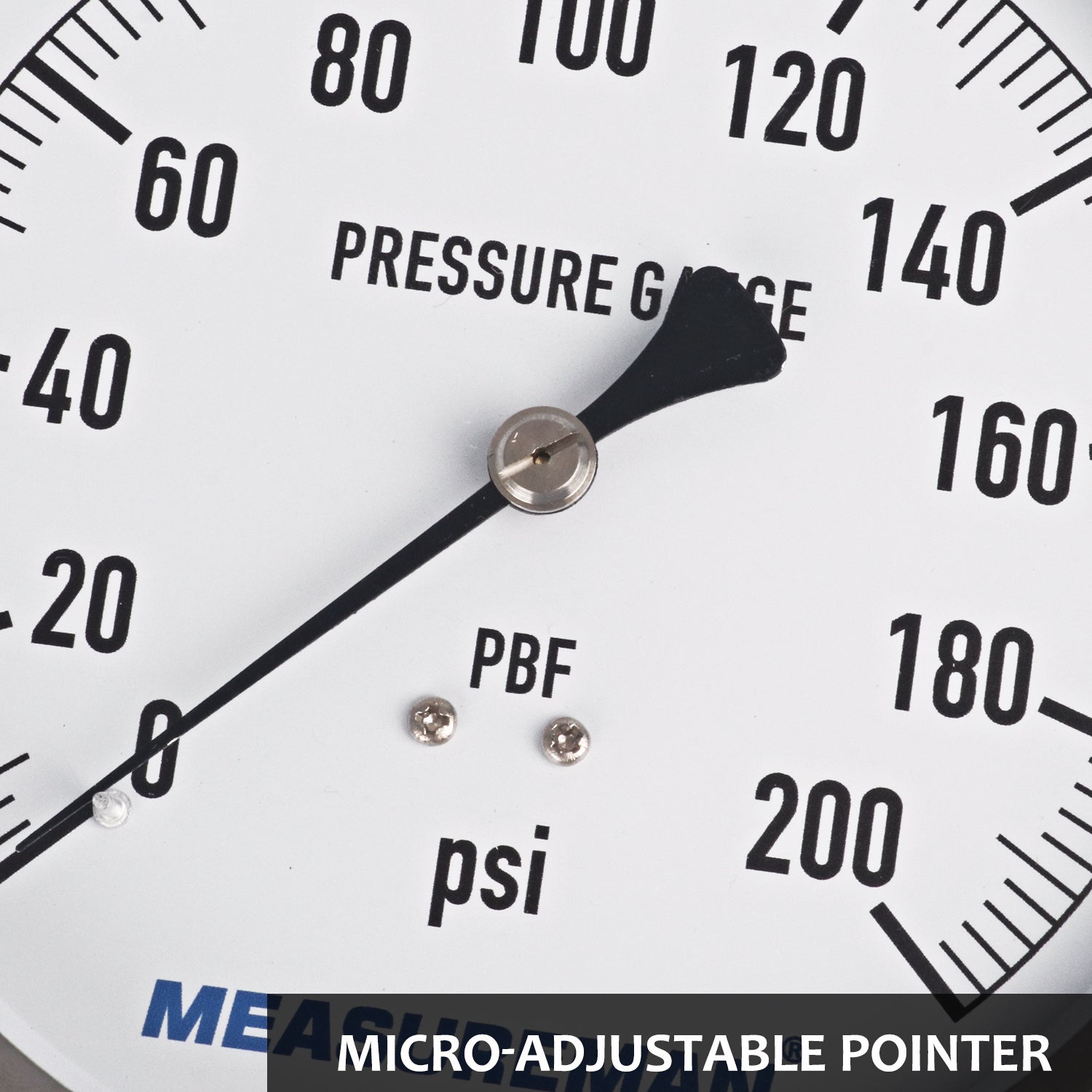

Pointer: Aluminum, black, DIN style, adjustable
Boudon tube: Copper alloy
Movement: Brass
Connection: Brass, PBF marked
IP class: IP43
Accuracy:+/-1%,
Pressure range: 0-200psi single scale
Working temperature:-40 to 140 deg F/-40 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
