Measureman Boxed Pressure Gauge with Dial Replacement for Select Filters, 2" x 1/4"NPT Bottom, 0-60psi/4bar, 3-2-3%
Measureman Boxed Pressure Gauge with Dial Replacement for Select Filters, 2" x 1/4"NPT Bottom, 0-60psi/4bar, 3-2-3%
Measureman Boxed Pressure Gauge with Dial Replacement for Select Filters, 2" x 1/4"NPT Bottom, 0-60psi/4bar, 3-2-3%
Measureman Boxed Pressure Gauge with Dial Replacement for Select Filters, 2" x 1/4"NPT Bottom, 0-60psi/4bar, 3-2-3%
Measureman Boxed Pressure Gauge with Dial Replacement for Select Filters, 2" x 1/4"NPT Bottom, 0-60psi/4bar, 3-2-3%
Measureman Boxed Pressure Gauge with Dial Replacement for Select Filters, 2" x 1/4"NPT Bottom, 0-60psi/4bar, 3-2-3%
Measureman Boxed Pressure Gauge with Dial Replacement for Select Filters, 2" x 1/4"NPT Bottom, 0-60psi/4bar, 3-2-3%
Measureman Boxed Pressure Gauge with Dial Replacement for Select Filters, 2" x 1/4"NPT Bottom, 0-60psi/4bar, 3-2-3%

Measureman Boxed Pressure Gauge with Dial Replacement for Select Filters, 2" x 1/4"NPT Bottom, 0-60psi/4bar, 3-2-3%

  • Save $2
Tax included. Shipping calculated at checkout.

Measureman Boxed Pressure Gauge with Dial Replacement for Select Filters, 2" x 1/4"NPT Bottom, 0-60psi/4bar, 3-2-3%



  • For pressure measuring on the filter of swimming pool,Spa, Aquarium Water etc
  • 2" dial size, 1/4"NPT lower mount
  • Pressure range: 0-60psi/bar double scale

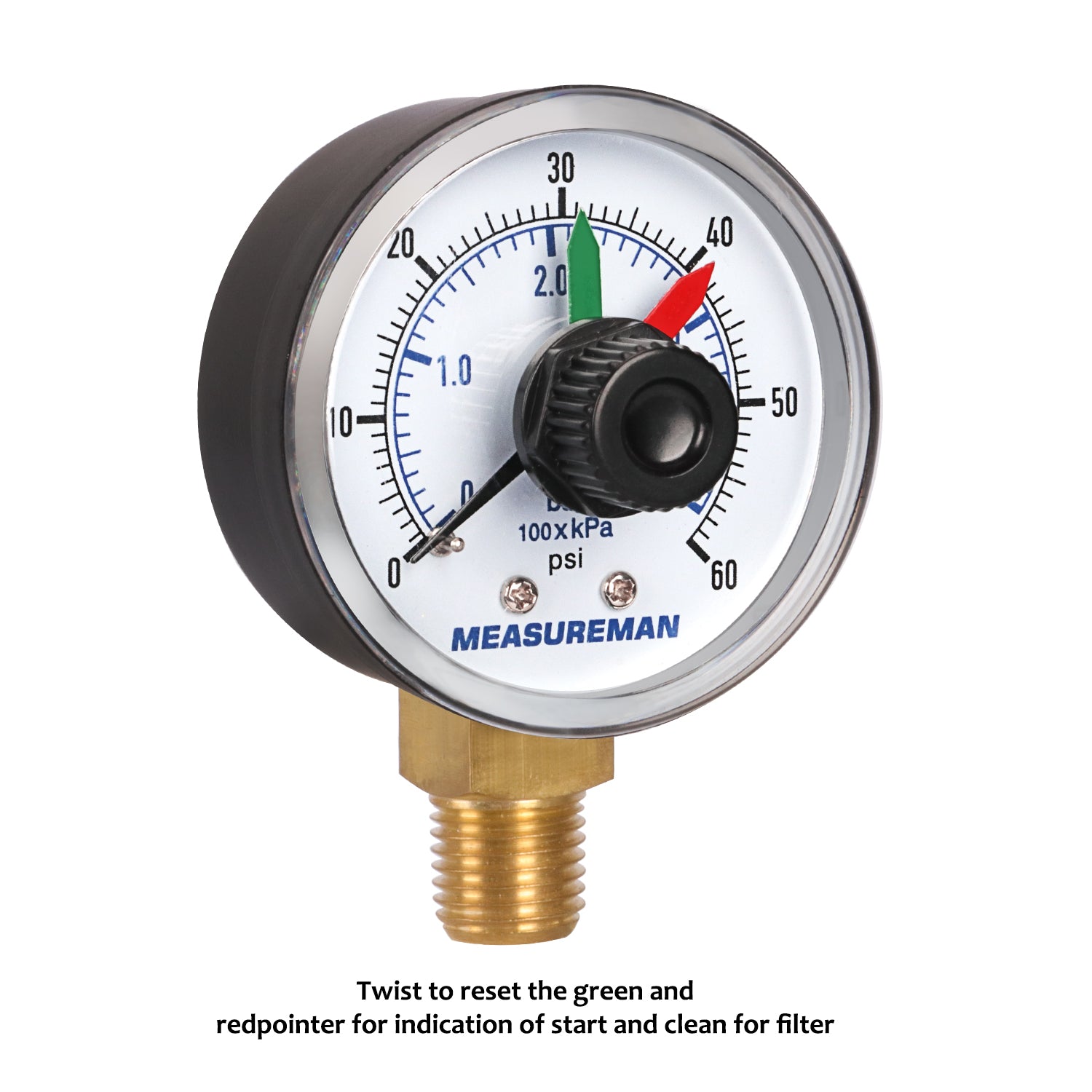

  • Plastic case, twist to move green and red reset pointer, start and clean filter, brass wetted parts, dry
  • Accuracy: +/-3-2-3%

Product description

Size:Lower mount, with reset pointer

Description

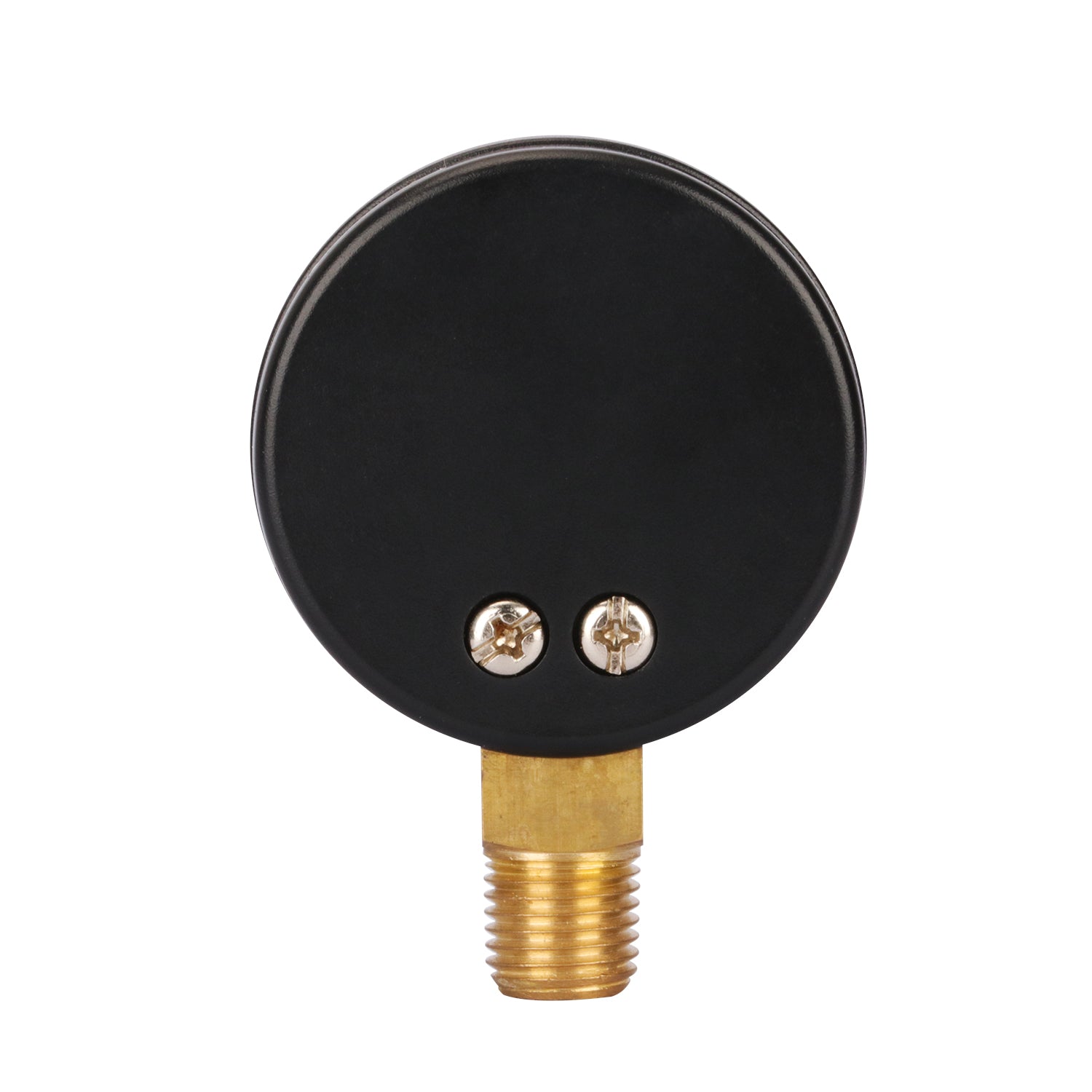

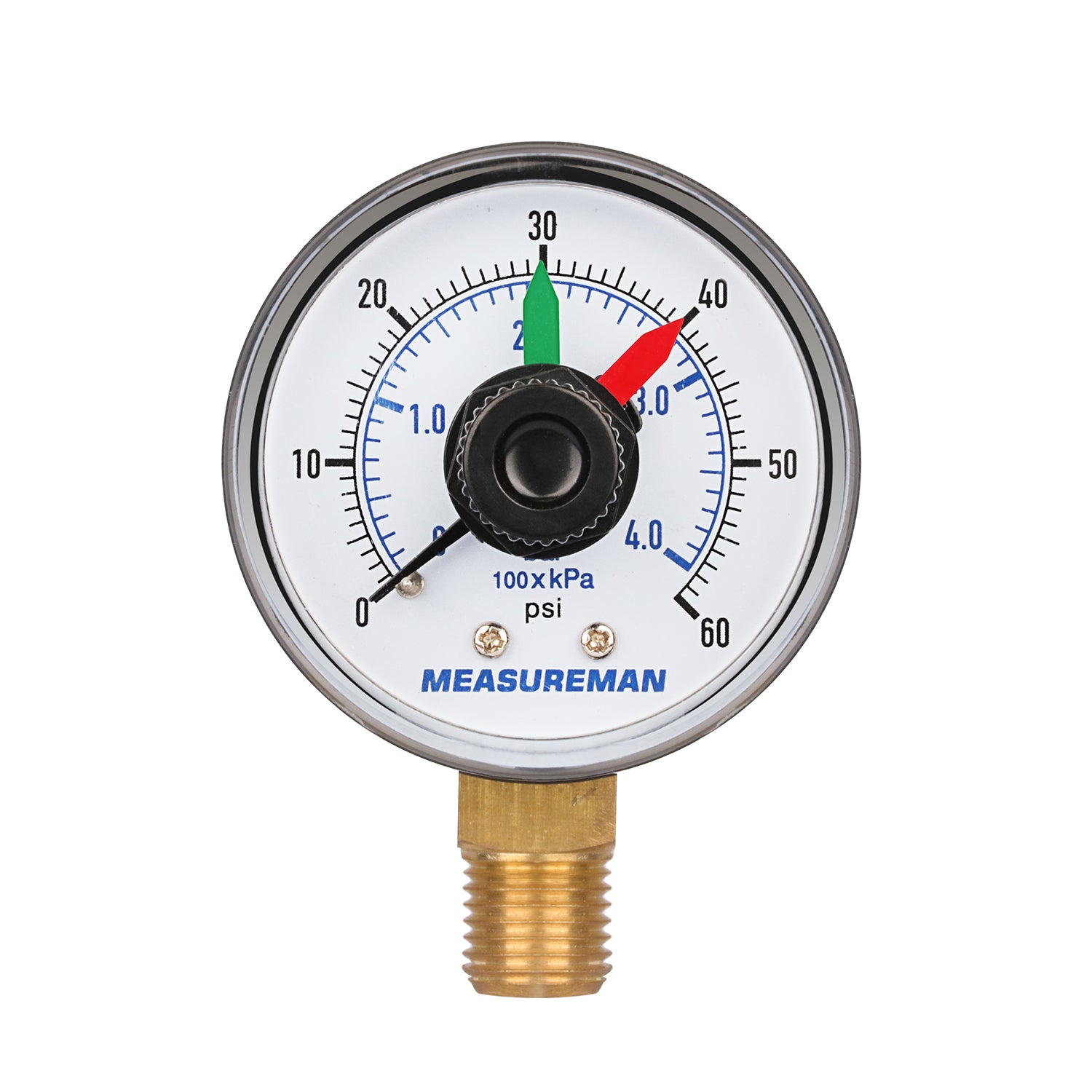

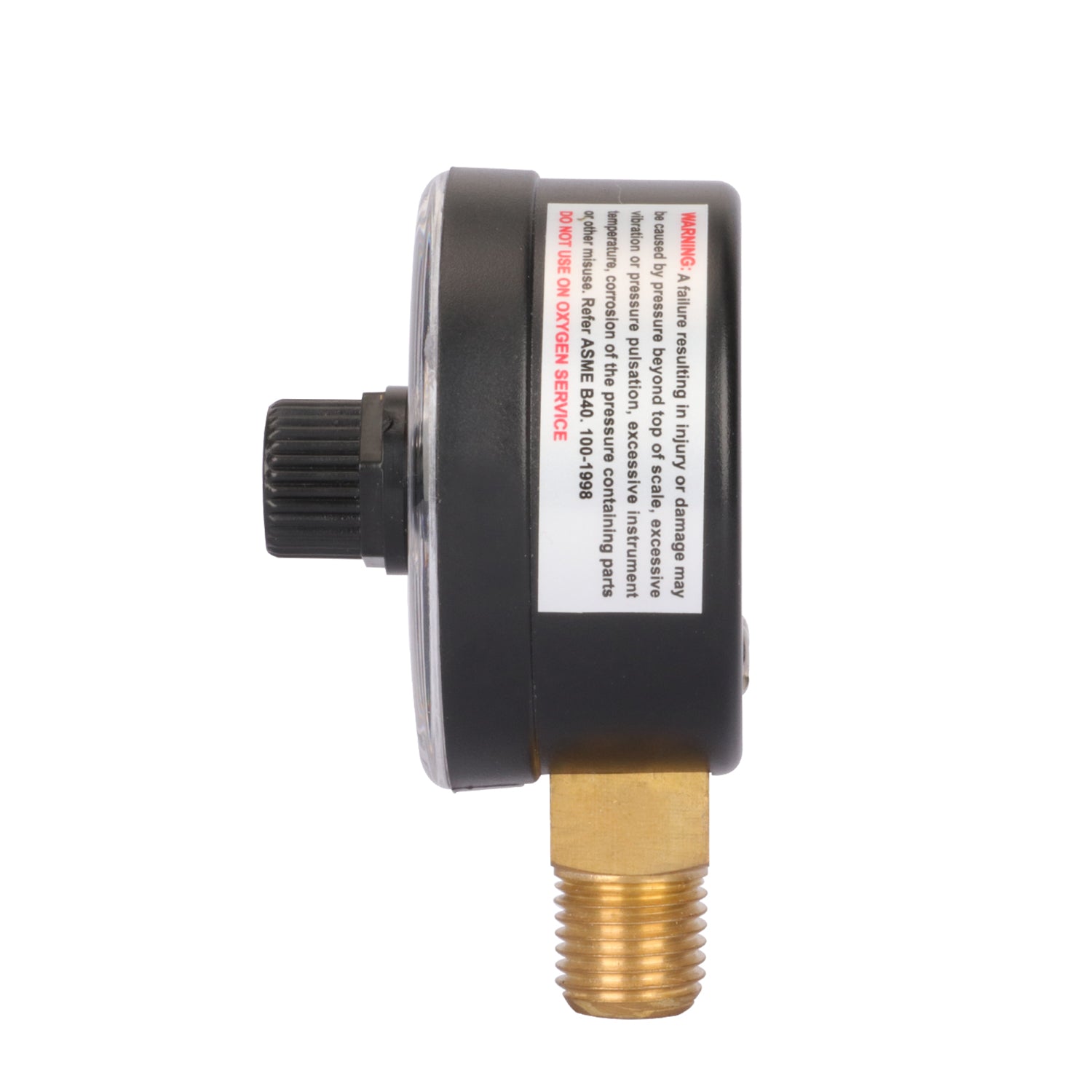

This pressure gauge is designed for water pressure measuring on the filter for swimming pool, spa, aquarium etc.

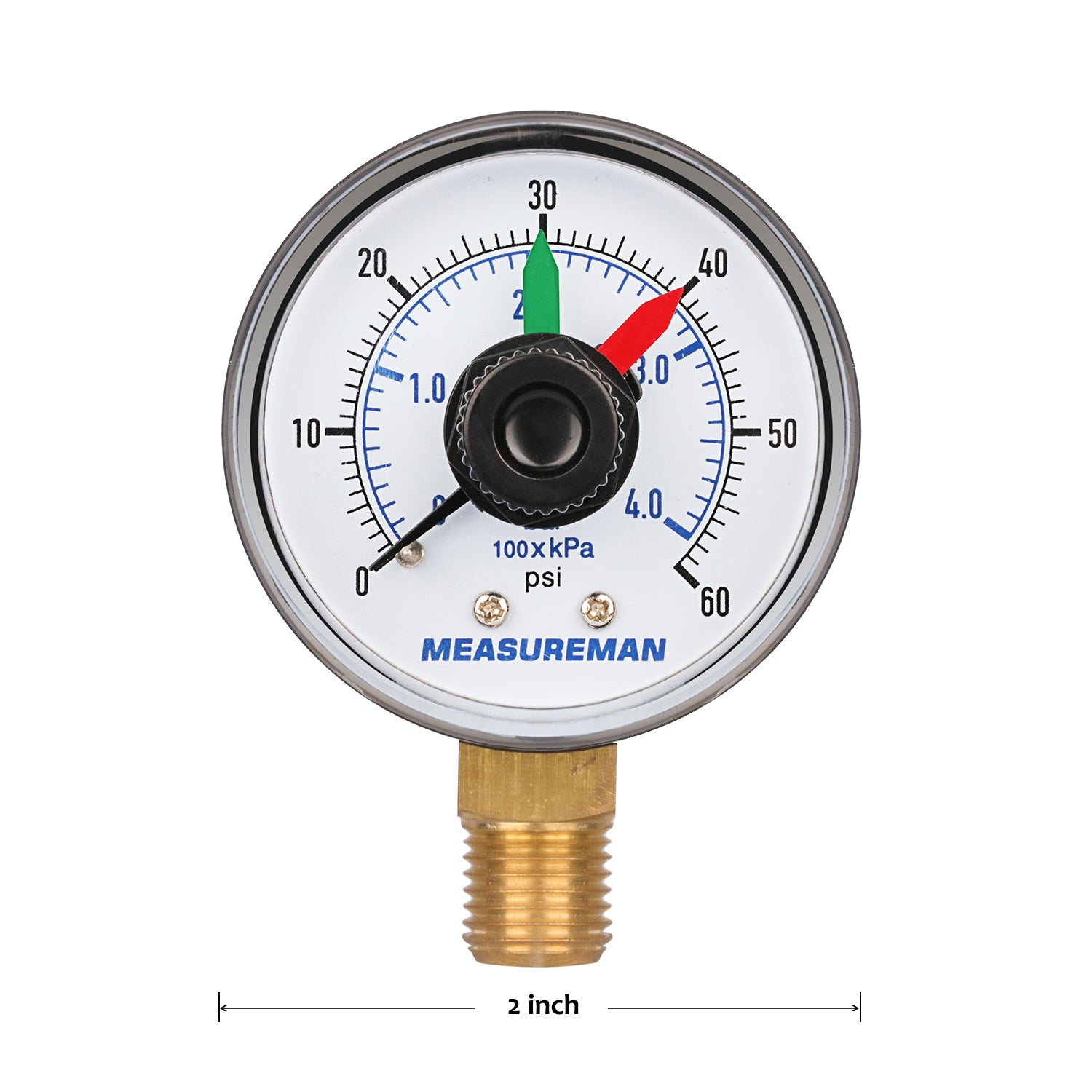

Dial size : 2"
Process connection : 1/4"NPT lower mount male
Case : plastic case
Window : Clear plastic, twist to move green and red reset pointer, start and clean filter
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Bourdon tube : Copper alloy
Movement : Brass
Connection : Brass
IP class : IP43
Accuracy : +/-3-2-3%
Pressure range : 0-60psi/bar
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum



Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
