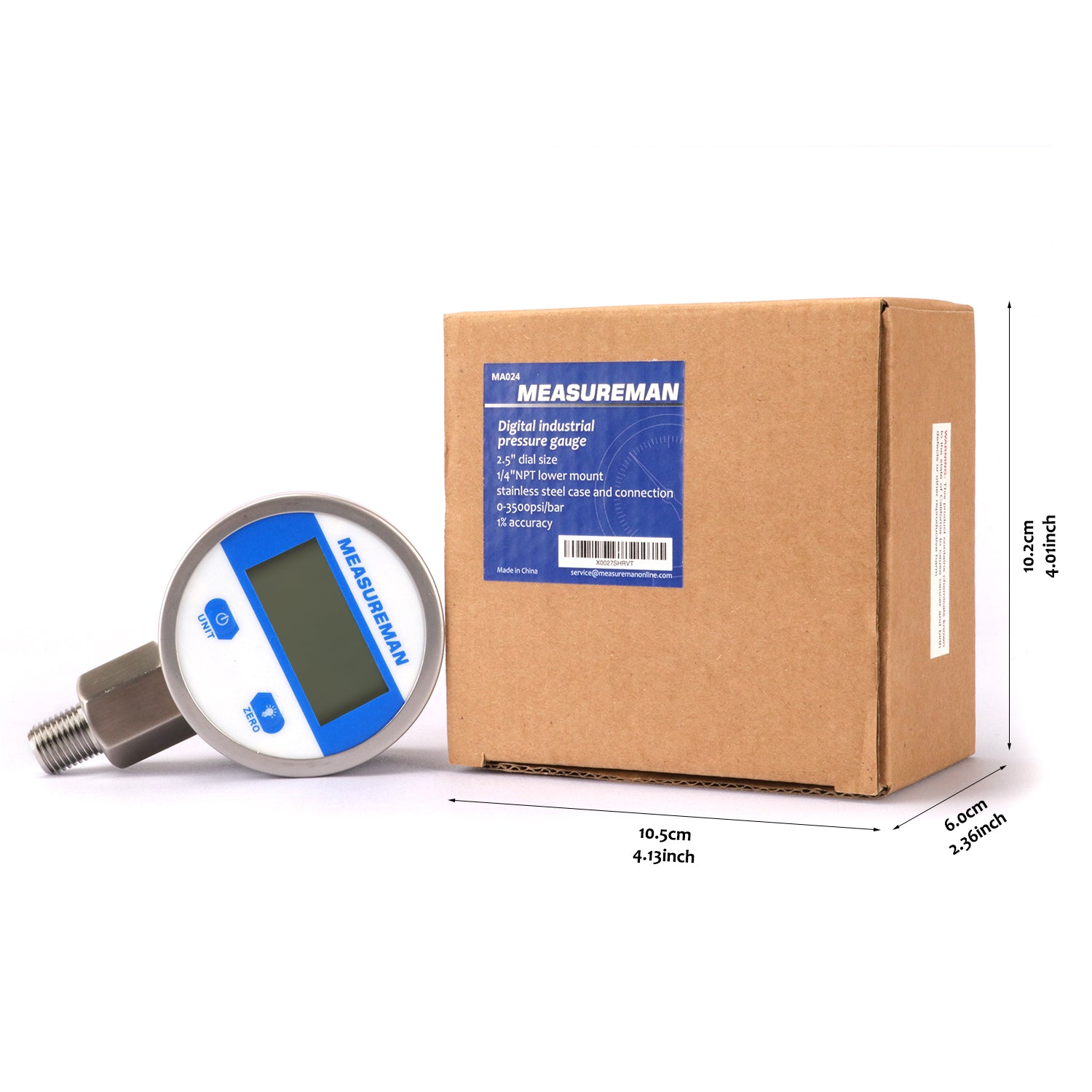

Measureman Digital Hydraulic Industrial Pressure Gauge 2-1/2" Dial 1/4"NPT Lower, Stainless Steel Case and Connection, 0-3500psi/bar, 1%,Battery Powered, with LED Light
Measureman Digital Hydraulic Industrial Pressure Gauge 2-1/2" Dial 1/4"NPT Lower, Stainless Steel Case and Connection, 0-3500psi/bar, 1%,Battery Powered, with LED Light
- For hydraulic, oil pressure, water pressure, high pressure, air pressure measuring, for media which is not corrosive to stainless steel wetted parts
- Dial size: 2-1/2", bright backlight, 1%
- 4 digit display, 4 units, 250bar, 3500psi, 25Mpa, 250kg/cm2, 150% over load
- Batteries status display, Pressure progress bar
- 304 Stainless steel connection, 1/4"NPT male
Product description
Description
For hydraulic, oil pressure, water pressure, high pressure, air pressure measuring, for media which is not corrosive to stainless steel wetted parts
Dial size : 2-1/2"
Pressure Range : 0-3500psi, bar, kg/cm2, Mpa 4 digit display, 4 units, 250bar, 3500psi, 25Mpa, 250kg/cm2
Batteries status display
Pressure progress bar
Process connection : 1/4"NPT male, lower mount
Overload Capacity : 150%
Accuracy : 1%
Input Voltage : 3V (two 1.5V AAA batteries)
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Case : 304 stainless steel
Wetted parts : 304 stainless steel
IP Class : IP54
How to operate:
Button Description:
Power button : Long press to power on, short press to power off
UNIT button : shortly press Unit button to change the unit circularly
LIGHT button : Short press, the back-light will light on for 20 seconds, Long press for 5 seconds to calibrate to zero
Package Content:
1 x Digital Pressure Gauge,
1 x Operation Manual.
