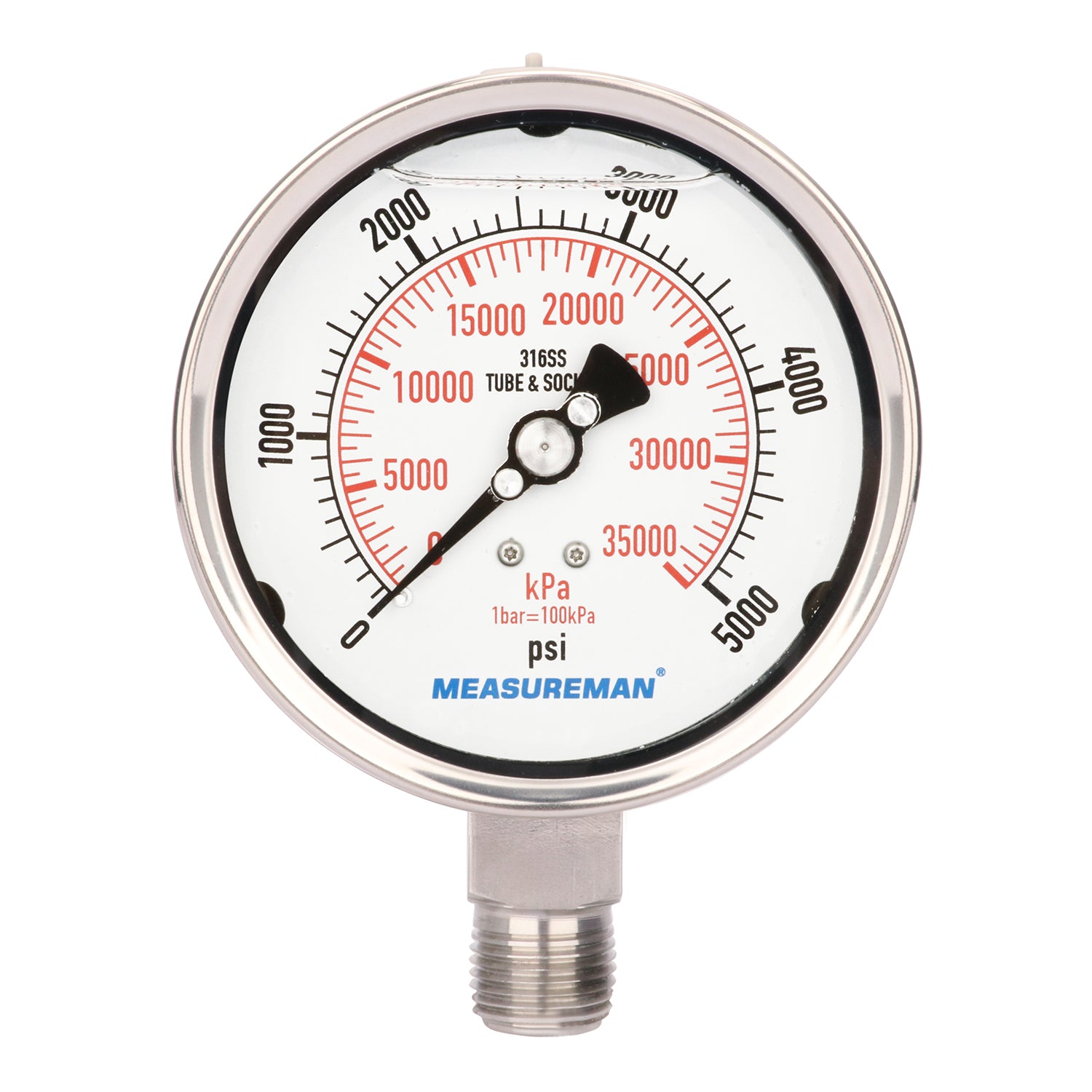

Measureman Fully Stainless Steel Hydraulic Glycerin Filled Pressure Gauge, 4" Dial Size, 1/2"NPT Lower Mount, 0-5000psi/kpa

  • $39.97
    Unit price per
  • Save $10
Tax included. Shipping calculated at checkout.


Measureman Fully Stainless Steel Hydraulic Glycerin Filled Pressure Gauge, 4" Dial Size, 1/2"NPT Lower Mount, 0-5000psi/kpa



  • For measuring the pressure of gas or liquid which is not corrosive to 316 stainless steel wetted parts, suitable for hydraulic pressure, oil refinerary, food industry etc.
  • 4" dial size, 1/2"NPT lower mount, TIG welding between case and socket
  • Pressure range: 0-5000psi/kpa
  • 304 stainless steel case and bayonet ring, toughen glass window, 304 stainless steel movement, 316 stainless steel tube and connection, TIG welding
  • Accuracy: +/-1%,

Product description

Description
"For measuring the pressure of gas or liquid which is not corrosive to 316 stainless steel wetted parts, suitable for hydraulic pressure, oil refinerary, food industry etc.

Dial size: 4""
Process connection: 1/2""NPT lower mount,
Range: 0-5000psi/kpa, Double scale, psi outside in black, kpa inside in red
Case: 304 stainless steel case and DIN bayonet ring,
Window: toughened glass window,
Movement: 304 stainless steel
Bourdon tube: 316 stainless steel
Connection:316 stainless steel,
TIG welding between case and connection,
Dial plate: Aluminum dial plate with pointer stop
Pointer: aluminum micro-adjustable pointer
Oil cap: Gray rubber
Filling: glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
With restrictor
Accuracy: +/-1%
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum



Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
