Measureman Magnet Helix Differential Low Pressure Gauge, 4-1/2" Dial, 1/8"NPT famele Connection, 0-1.0 Inches of Water
Measureman Magnet Helix Differential Low Pressure Gauge, 4-1/2" Dial, 1/8"NPT famele Connection, 0-1.0 Inches of Water
- For accurate measuring air and compatible, non-combustible, gases, typical application: filter monitoring, Blower vacuum monitoring, fan pressure indication, dust room or building pressures, clean room pressure indication

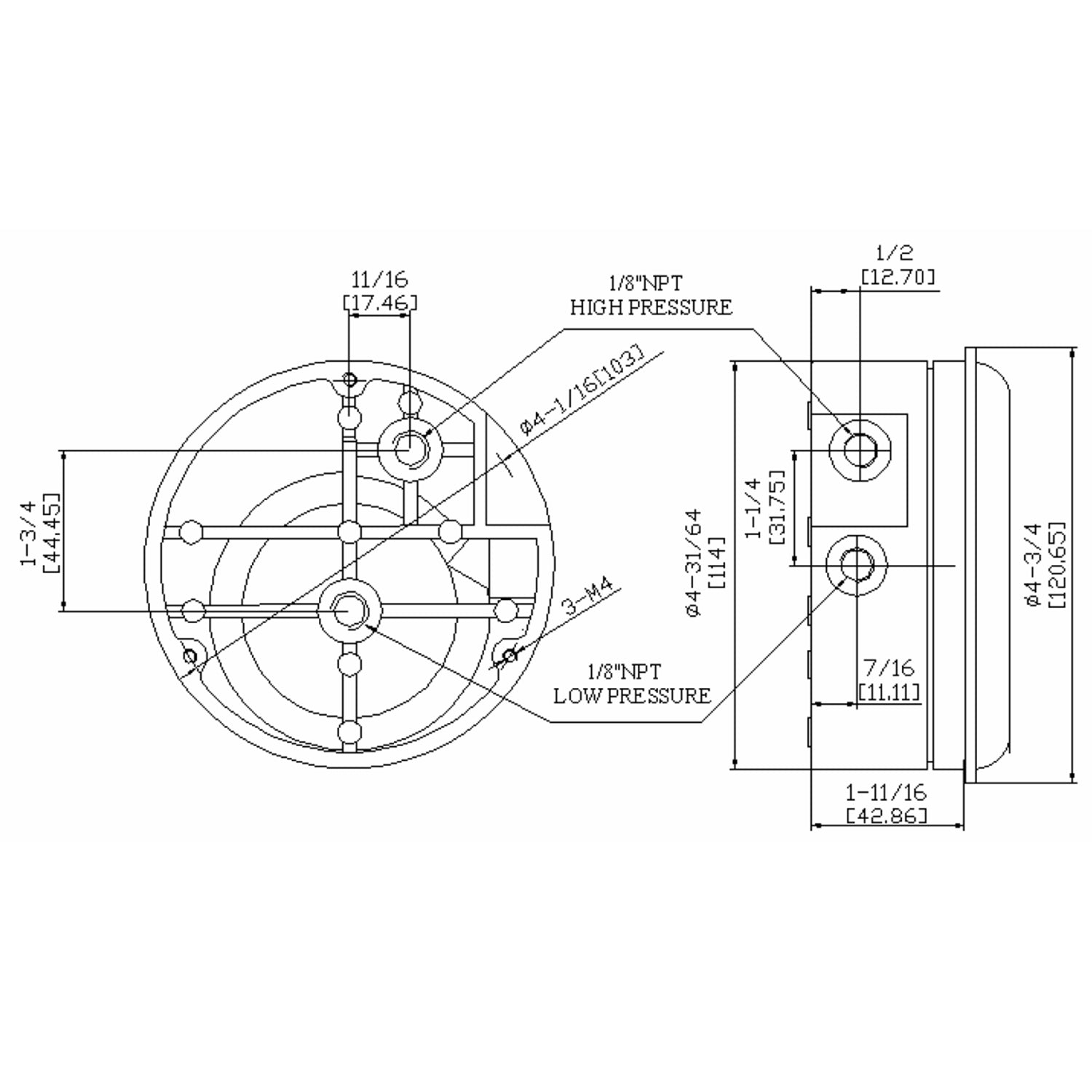

- 4-1/2" dial size, 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
- Pressure range: 0-1.0 inches of water
- Die cast gray aluminum case and bezel, with acrylic cover
- Accuracy: +/-2%
Product description
Description
For accurate measuring air and compatible non-combustible, gases, typical application: filter monitoring, Blower vacuum monitoring, fan pressure indication, dust room or building pressures, clean room pressure indication Dial size : 4-1/2" Range : 0-1.0 Inches of Water Case : Die cast gray aluminum case and bezel Window : Clear plastic window, external adjustable on window Accuracy : +/-2% Pressure limit : -20in Hg to 15psi Temperature limit : 20-140 deg F/-6 to 60 deg C IP class : IP67 Mounting orientation : Diaphragm in vertical position Process connection : 1/8"NPT female duplicate high and low pressure taps, one pair side and one pair back Weight : 1 lb, 2 oz (510g) Standard Accessories : Two 1/8"NPT plugs for duplicate pressure taps, two 1/8"Pipe thread to rubber tubing adaptors and three flush mounting adaptors with screws.
Include
One gauge, Two 1/8"NPT plugs for duplicate pressure taps, two 1/8"Pipe thread to rubber tubing adaptors and three flush mounting adaptors with screws.
